G) SUPPLEMENTARY COMPONENTS
Your TIME frame or module comes with a certain number of supplementary components!

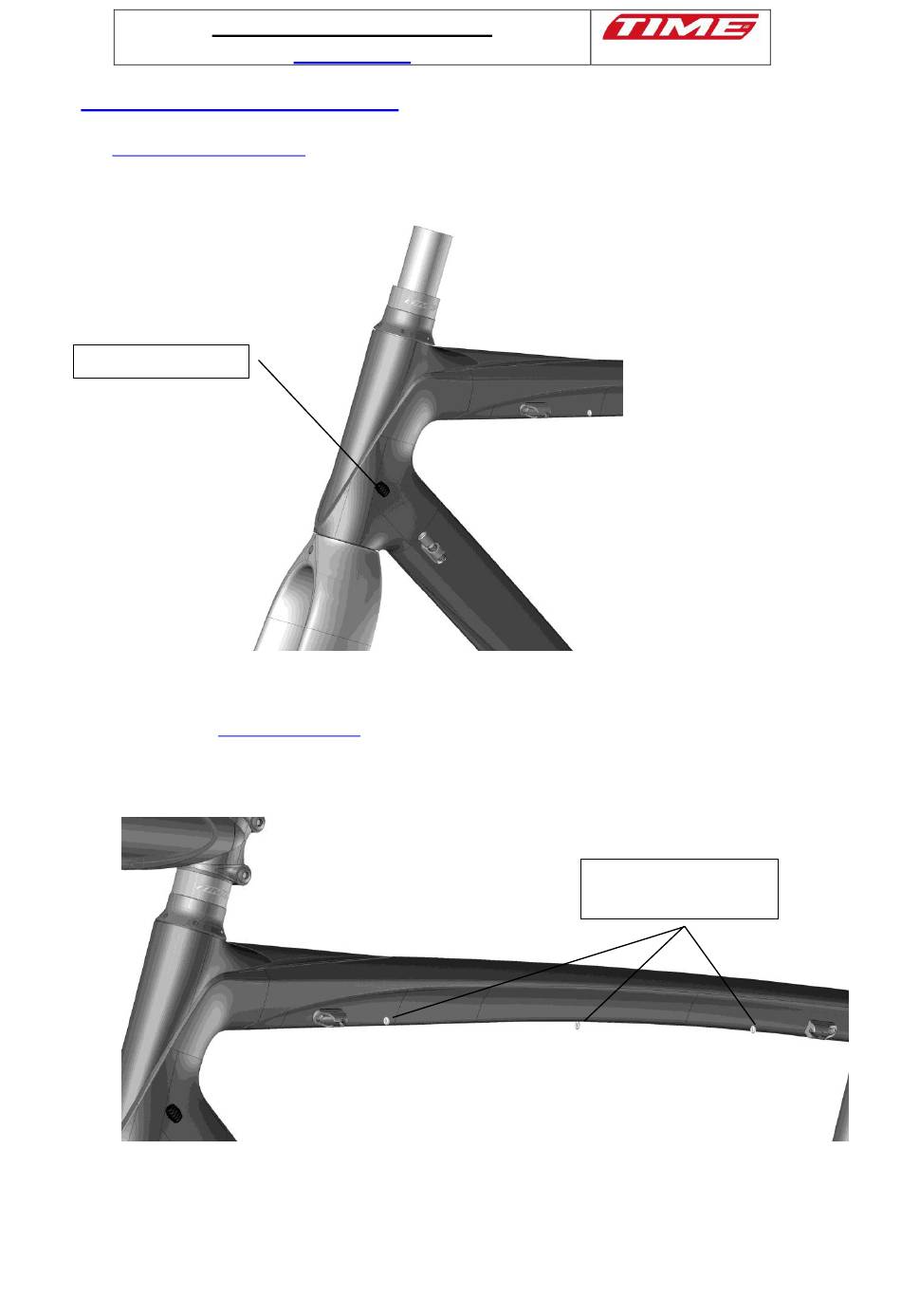

1) Cable stop protectors
They should be placed on the derailleur cable stops in order to avoid rubbing and impacts with
the frame (Ref: 55005998) (fig. 13)
Cable stop protectors
Figure 13
2) Brake cable stops
They should be positioned on the rear brake cable in order to avoid direct contact between the
cable and frame during vibrations or operation (Ref: 55003988) (fig.14)
Figure 14
RX Instinct
- 13 -
brake cable stops
(3 parts)
