H) ADJUSTMENTS AND MAINTENANCE
1) Headset adjustment
The TIME modules
Even though it is factory set, it is normal to have a small amount of play after a break in period.
To remove this play, proceed as follows:
- Use the small adjustment pins included in the module. (ref: 60003067)
- Position them in the collar.
- Immobilize the forks and lightly turn the collar

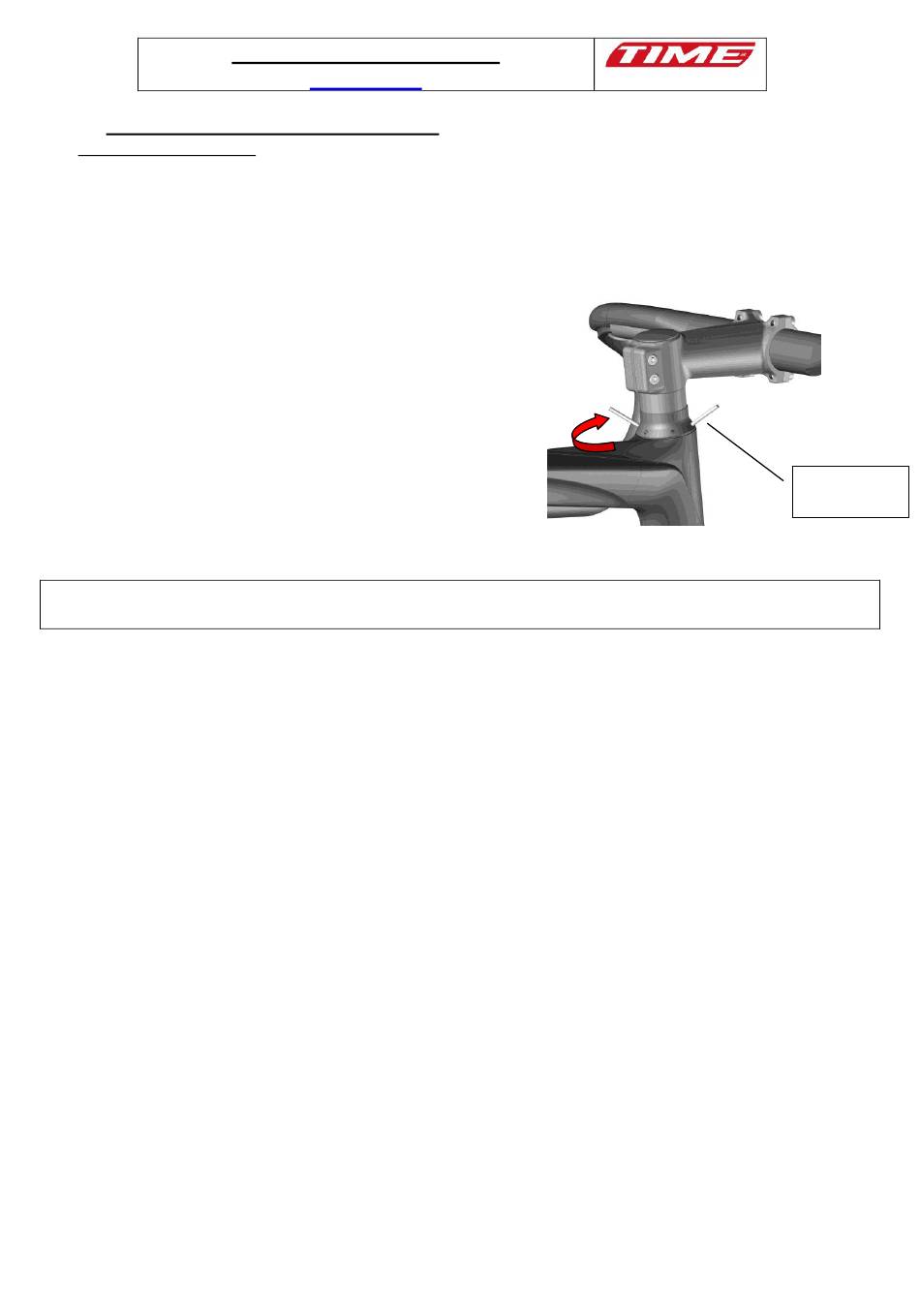

clockwise to remove the play. (fig.16)
Warning: Avoid overtightening the headset, which could overly restrict movement and prematurely
damage the bearings.
Projet de notice de montage
RX Instinct
or frames are equipped with a QUICKSET headset.
- 15 -
adjustment
pins (x2)
Figure 16
