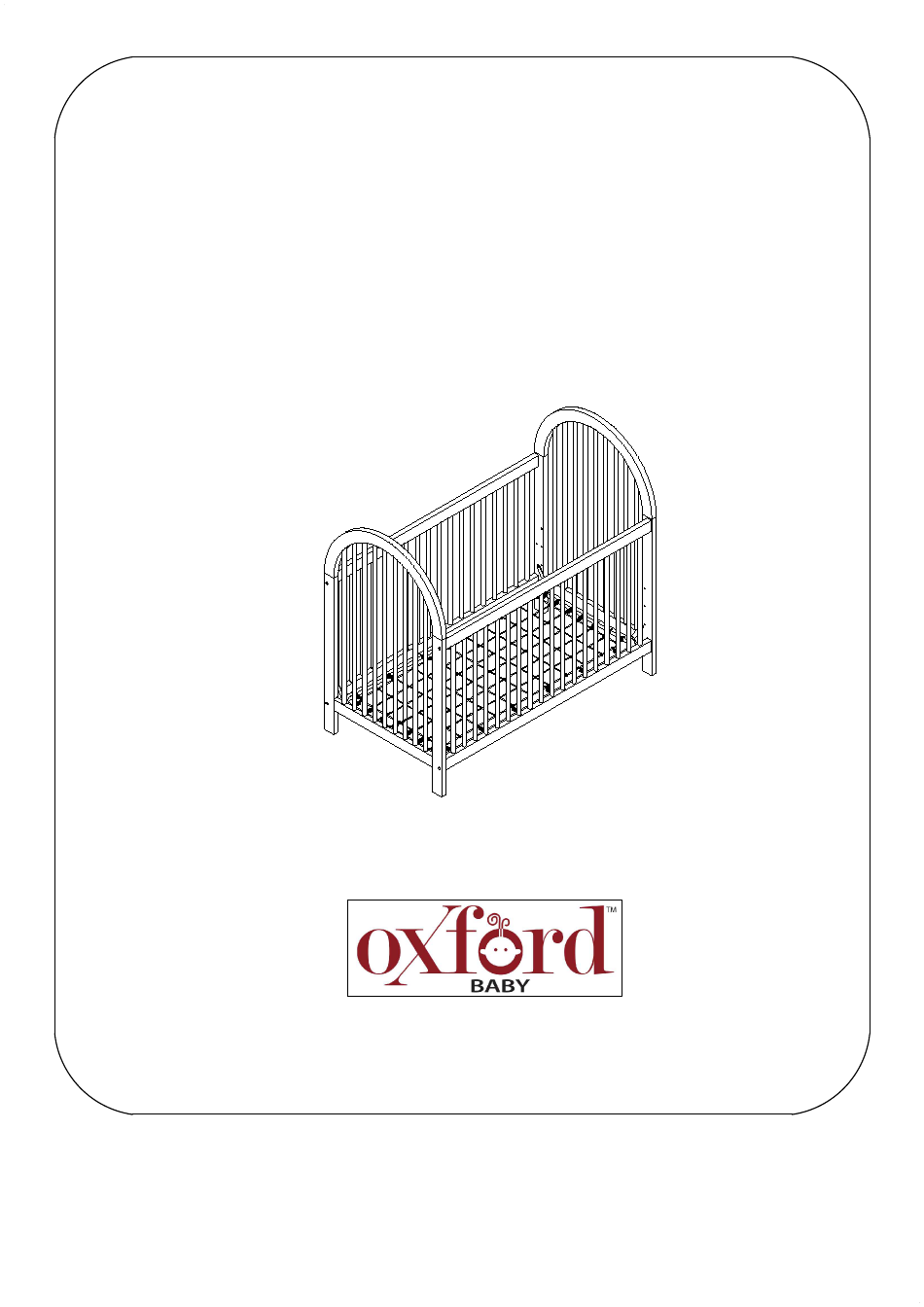

ASSEMBLY INSTRUCTIONS
for convertible cri b

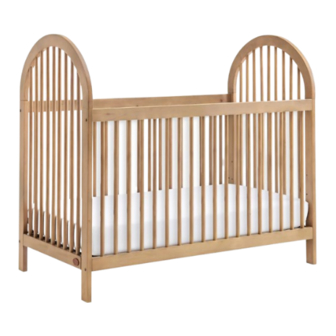

EVERLEE 3 IN 1 ISLAND CRIB
Model #13113
GUARDRAIL sold separately.
Please contact retailer
THIS PRODUCT CONFORMS TO THE APPLICABLE SECTION OF PUBLIC LAW 1130-314
AND COMPLIES WITH THE REQUIREMENTS STATED IN 16 CFR 1219 AND 16 CFR 1217
(WHEN EVERLEE GUARDRAIL IS USED).
130-13113-V-01
1 of 5
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for OXFORD BABY EVERLEE 13113
Summary of Contents for OXFORD BABY EVERLEE 13113
- Page 1 ASSEMBLY INSTRUCTIONS for convertible cri b EVERLEE 3 IN 1 ISLAND CRIB Model #13113 GUARDRAIL sold separately. Please contact retailer THIS PRODUCT CONFORMS TO THE APPLICABLE SECTION OF PUBLIC LAW 1130-314 AND COMPLIES WITH THE REQUIREMENTS STATED IN 16 CFR 1219 AND 16 CFR 1217 (WHEN EVERLEE GUARDRAIL IS USED).
-
Page 2: Tools Required
Thank you for your purchase! Remove all parts and hardware from the box and lay on a carpeted or scratch -free work surface. Do not dispose of any contents until assembly is completed. Familiarize yourself with all exhibits and diagrams to facilitate the assembly of your crib. TOOLS REQUIRED: ALLEN KEY (Included) PARTS ENCLOSED IN CARTON... - Page 3 STEP 1 " ASSEMBLY OF CRIB " THIS STEP REQUIRES : A. End frame (1 pc) F. Allenbolt 2-3/8" (60 mm) (4 pcs) B. Side frame (2 pcs) N. Allen key (1 pc) L. Dowel Ø10x40mm (2 pcs) M. Barrel Nut (4 pcs) W.
- Page 4 STEP 2 " ASSEMBLY OF CRIB " THIS STEP REQUIRES: A. End frame (1 pc) F. Allenbolt 2-3/8" (60 mm) (4 pcs) N. Allen key (1 pc) L. Dowel Ø10x40mm (2 pcs) M. Barrel Nut (4 pcs) W. Spring washer (4 pcs) STEP 2 RIGHT INSIDE...
- Page 5 STEP 3 " ASSEMBLY OF MATTRESS SPRING " THIS STEP REQUIRES: C. Mattress spring (1pc) K. Allen bolt 9/16" (15 mm) (4 pcs) N. Allen key (1 pc) FIG.5. STEP 3 FACE Lowest position FIG.6. Highest position Middle position FIG.7. Lowest position STEP 3:...
