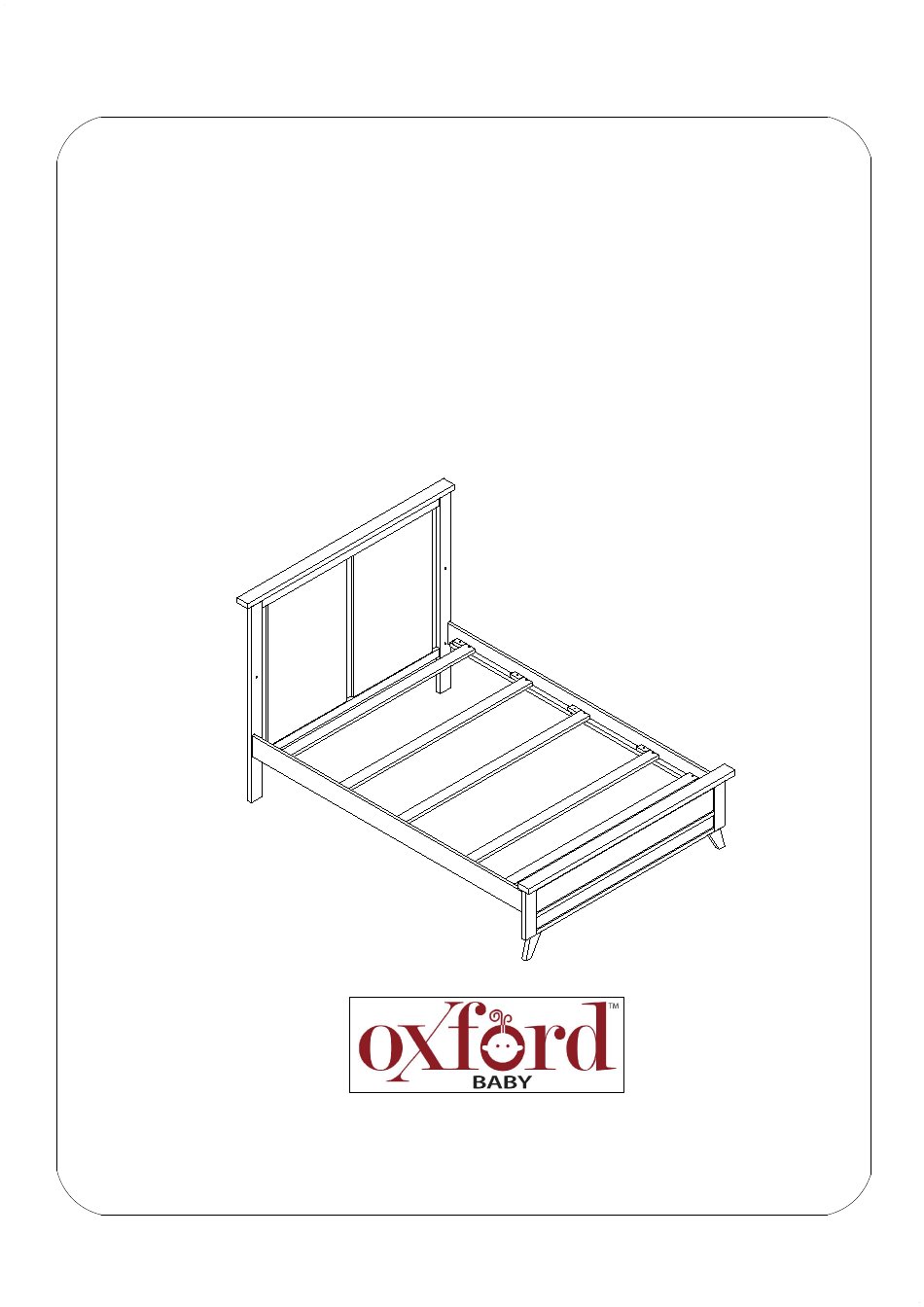

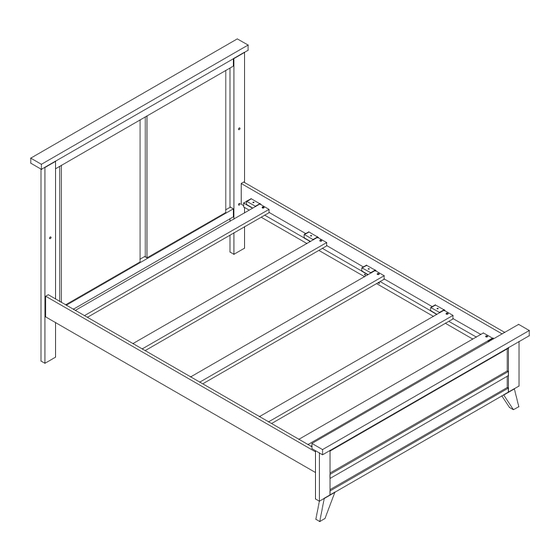

- Page 1 ASSEMBLY INSTRUCTIONS for Full Bed Conversion Kit with Low Profile Footboard HOLLAND 4 IN 1 ACRYLIC CONVERTIBLE CRIB Model #10508 "RECOMMENDATION: We recommend the use of a Bunkie Board or box spring under a mattress for this conversion kit. 10-10508-V-01...
- Page 2 (F) Allen key (2 pcs) (length may vary) (E) Nut 3/4" (20mm) (2 pcs) Do not fully tighten all bolts until all parts are in place. (please add an extra 1/2 revolution to the bolts when using spring washer after tightening) 10-10508-V-01 2 of 4...
- Page 3 STEP 1 " ASSEMBLY OF HEADBOARD AND FOOTBOARD" THIS STEP REQUIRES : Headboard (1 pc) Rail (2 pcs) A. Low Profile Footboard (1 pc) STEP 1.1 STEP 1.2 STEP 1.1: Place Headboard in vertical position and then hook rails to Headboard. STEP 1.2: Place Low Profile Footboard (A) in vertical position and then hook rails to Low Profile Footboard (A) 10-10588-V-01...
- Page 4 STEP 2 " ASSEMBLY OF SLATS" THIS STEP REQUIRES : SCREW DRIVER (Not Included) F. Allen key (2 pcs) Slat (5 pcs) C. Allen Bolt 1"(25 mm) (2 pcs) D. Screw 1-1/4"(30 mm) (10 pcs) E. Nut 3/4" (20mm) (2 pcs) These hardware are included in the CONVERSION KIT STEP 2.2 STEP 2.1...
