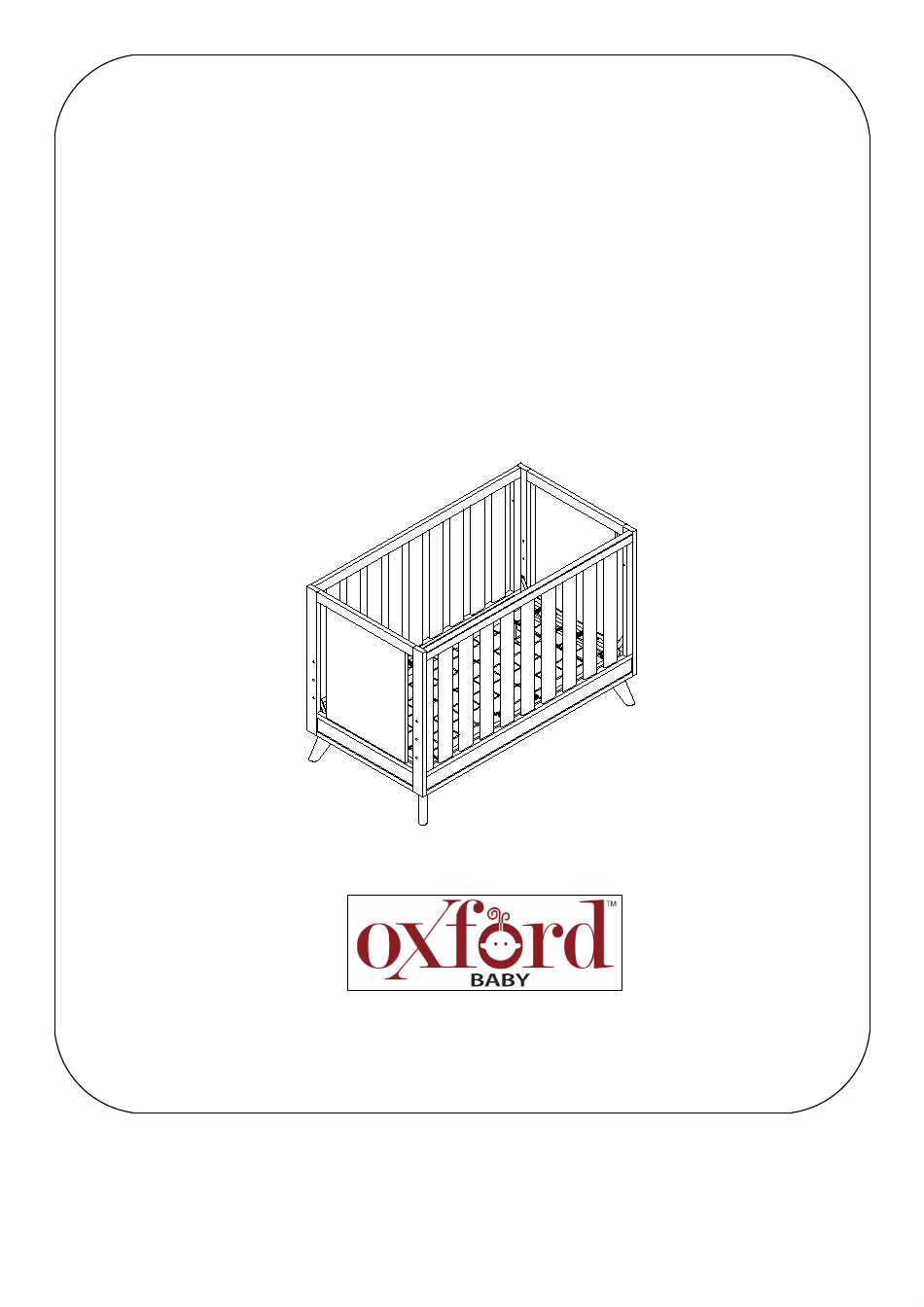

ASSEMBLY INSTRUCTIONS
for convertible cri b
HOLLAND ISLAND 3 IN 1 ACRYLIC CRIB
Model #10513
GUARDRAIL sold separately.
Please contact retailer
THIS PRODUCT CONFORMS TO THE APPLICABLE SECTION OF PUBLIC LAW 110-314
AND COMPLIES WITH THE REQUIREMENTS STATED IN 16 CFR 1219 AND 16 CFR 1217
(WHEN HOLLAND GUARDRAIL IS USED).
10-10513-V-01
1 of 5
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for OXFORD BABY 10513
Summary of Contents for OXFORD BABY 10513
- Page 1 ASSEMBLY INSTRUCTIONS for convertible cri b HOLLAND ISLAND 3 IN 1 ACRYLIC CRIB Model #10513 GUARDRAIL sold separately. Please contact retailer THIS PRODUCT CONFORMS TO THE APPLICABLE SECTION OF PUBLIC LAW 110-314 AND COMPLIES WITH THE REQUIREMENTS STATED IN 16 CFR 1219 AND 16 CFR 1217 (WHEN HOLLAND GUARDRAIL IS USED).
-
Page 2: Tools Required
(L) Half moon washer (4 pcs) (M) Allen key (2 pcs) (length may vary) Do not fully tighten all bolts until all parts are in place. (please add an extra 1/2 revolution to the bolts when using spring washer after tightening) 10-10513-V-01 2 of 5... - Page 3 - Insert Allen bolt (F), Spring washer (W) through the upper holes of sideboards as FIG. 1. - Insert Allen bolt (F), Half moon washer (L) through the lower holes of sideboards as FIG. 2. - Tighten all bolts with Allen key (M). 10-10513-V-01 3 of 5...
- Page 4 - Insert Allen bolt (F), Spring washer (W) through the upper holes of sideboards as FIG. 3. - Insert Allen bolt (F), Half moon washer (L) through the lower holes of sideboards as FIG. 4. - Tighten all bolts with Allen key (M). 10-10513-V-01 4 of 5...
- Page 5 STEP 3: - Attach Mattress spring (E) to Sideboard as shown in FIG.5. - Secure with Allen key (M). - See FIG.6. for height adjustment - Make sure the Mattress Spring (E) is leveled after assembly. 10-10513-V-01 5 of 5...
- Page 8 ASSEMBLY INSTRUCTIONS for toddler bed HOLLAND ISLAND 3 IN 1 ACRYLIC CRIB Model #10513 GUARDRAIL sold separately. GUARDRAIL sold separately. Please contact retailer. Please contact retailer. 10-10513-V-01 1 of 4...
- Page 9 STEP 1 " UNINSTALL FOOTBOARD " THIS STEP REQUIRES: Allen key (1 pc) STEP 1 FIG. 2 FIG. 1 RIGHT INSIDE FIG. 2 STEP 1: Remove 1pc of headboard/footboard by unscrewing Allen bolts as shown in FIG. 1 and FIG. 2. 10-10513-V-01 2 of 4...
- Page 10 - Attach Stabilizer bar (D) to the side where removed headboard/footboard. - Insert Allen bolt (F), Half moon washer (L) through the holes of stabilizer bar as shown in FIG. 3. - Tighten all bolts with Allen key (M). 10-10513-V-01 3 of 4...
- Page 11 - Move Mattress spring to the lowest position as shown in FIG.4. - Attach the Allen bolt 1"(25 mm)(G), Spring washer (W) and Nut 3/4"(20 mm)(H) on the lowest hole of Sideboard. - Final position as shown in FIG.5. 10-10513-V-01 4 of 4...
