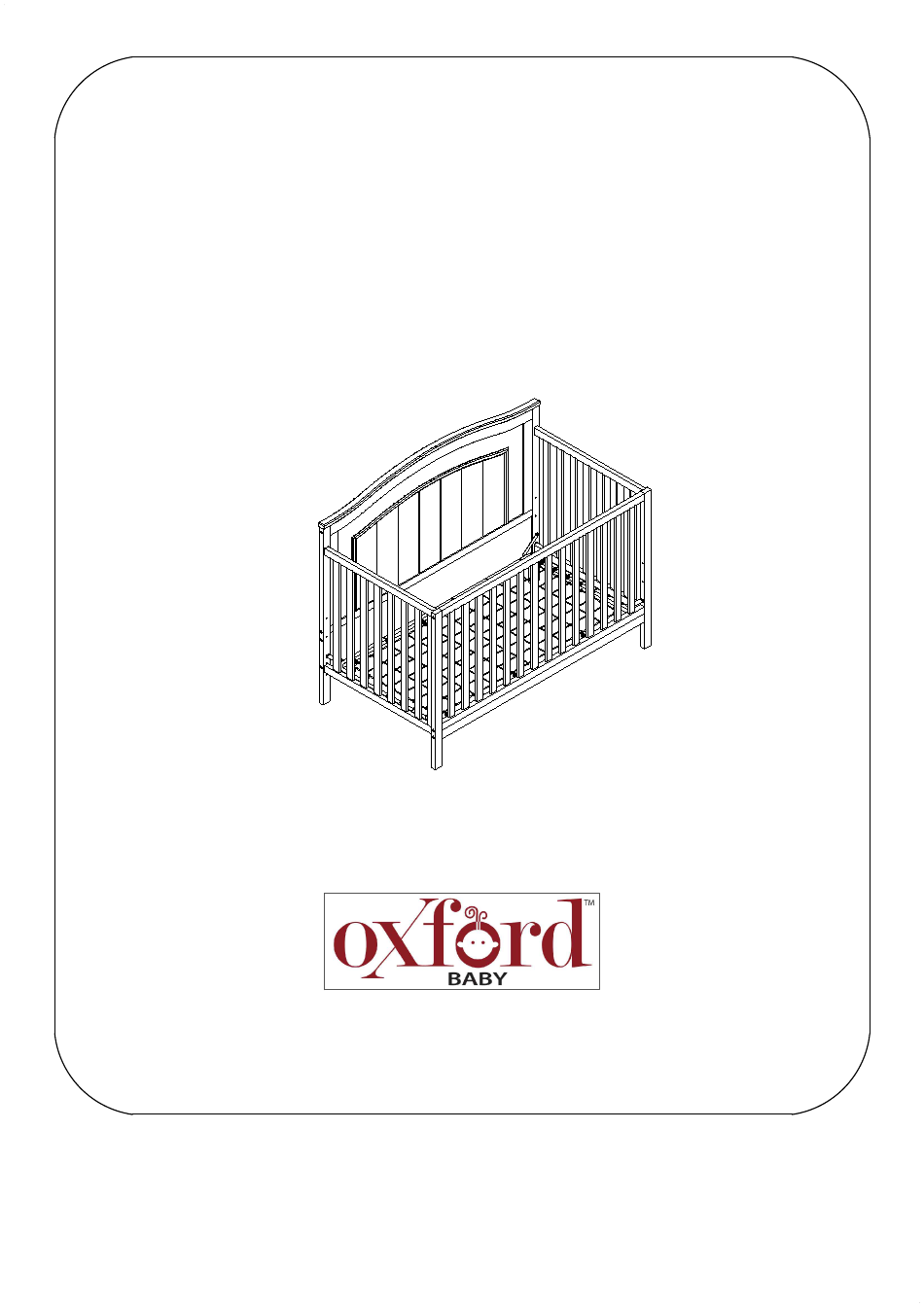

ASSEMBLY INSTRUCTIONS
for convertible crib
NORTH BAY 4 IN 1 CONVERTIBLE CRIB
Model #18811
GUARDRAIL and CONVERSION KIT sold separately.
Please contact retailer
THIS PRODUCT CONFORMS TO THE APPLICABLE SECTION OF PUBLIC LAW 110-314
AND COMPLIES WITH THE REQUIREMENTS STATED IN 16 CFR 1219 AND 16 CFR 1217
(WHEN NORTH BAY GUARDRAIL IS USED).
95-18811-V-01
1 of 7
Advertisement
Related Manuals for OXFORD BABY 18811
Summary of Contents for OXFORD BABY 18811
- Page 1 ASSEMBLY INSTRUCTIONS for convertible crib NORTH BAY 4 IN 1 CONVERTIBLE CRIB Model #18811 GUARDRAIL and CONVERSION KIT sold separately. Please contact retailer THIS PRODUCT CONFORMS TO THE APPLICABLE SECTION OF PUBLIC LAW 110-314 AND COMPLIES WITH THE REQUIREMENTS STATED IN 16 CFR 1219 AND 16 CFR 1217 (WHEN NORTH BAY GUARDRAIL IS USED).
-
Page 2: Tools Required
3. Footboard Posts (2 pcs L&R) 4. Headboard bottom panel (1 pc) 5. Stabilizer bar (1 pc) 6. Footboard frame (1 pc) 7. Left sideboard (1 pc) 8. Right sideboard (1 pc) 9. Mattress Spring (1 pc) 95-18811-V-01 2 of 7... - Page 3 (G) Wood dowel Ø10x40mm (7 pcs) (H) Allen key (1 pc) (length may vary) Do not fully tighten all bolts until all parts are in place. (please add an extra 1/2 revolution to the bolts when using spring washer after tightening) 95-18811-V-01 3 of 7...
- Page 4 - Insert Wood dowel (D) and (G) to Headboard frame as shown in FIG.2. Assembly the Headboard post (L&R) (2) to the hole on Headboard frame (1) and Headboard bottom panel (4) by Allen bolt (A), Spring washer (C) and Barrel Nut (B). Tighten all bolts by Allen Key (H). 95-18811-V-01 4 of 7...
- Page 5 Spring washer (C) . Tighten all bolts by Allen key (H). STEP 2.2 : - Assembly the Sideboard (L&R) (7) (8) to the hole on Headboard post (L&R)(2) by Allen bolt (F), Spring washer (C) and Barrel Nut (B). Tighten all bolts by Allen Key (H). 95-18811-V-01 5 of 7...
- Page 6 STEP 3.2: - Attach Mattress Spring (9) to Side board as shown in FIG.3. - Secure with Allen key (H). - See FIG.4. for height adjustment. - Make sure the Mattress Spring (9) is leveled after assembly. 6 of 7 95-18811-V-01...
- Page 7 - Assembly the bottom rail of Footboard frame (6) to the Footboard Post (L&R) (3) by Allen bolt (F), Spring washer (C) as shown in FIG.6. Tighten all bolts by Allen Key (H). Complete assembly as shown in FIG.7. 95-18811-V-01 7 of 7...
- Page 10 ASSEMBLY INSTRUCTIONS for toddler bed NORTH BAY 4 IN 1 CONVERTIBLE CRIB Model #18811 GUARDRAIL and CONVERSION KIT sold separately. Please contact retailer. 95-18811-V-01...
- Page 11 STEP 1 " UNINSTALL FOOTBOARD FRAME" THIS STEP REQUIRES: (H) Allen key (1 pc) FIG.1 Remove the Footboard frame (6) from the Footboard Post (L&R) (3) by unscrewing (2 pcs) Allen bolt (A) and (2 pcs) Allen bolt (F) as shown in FIG.1. 95-18811-V-01...
- Page 12 - Move Mattress spring to the lowest position as shown in FIG.2. - Attach the Allenbolt 9/16"(15 mm) (K) on the lowest hole of Sideboard. - Tighten all bolts with Allen key (H). - Final position as shown in FIG.3. 95-18811-V-01...
