GoldenDesigns GDI-8523-01 Owner's Manual

3 & 6 person hybrid saunas
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

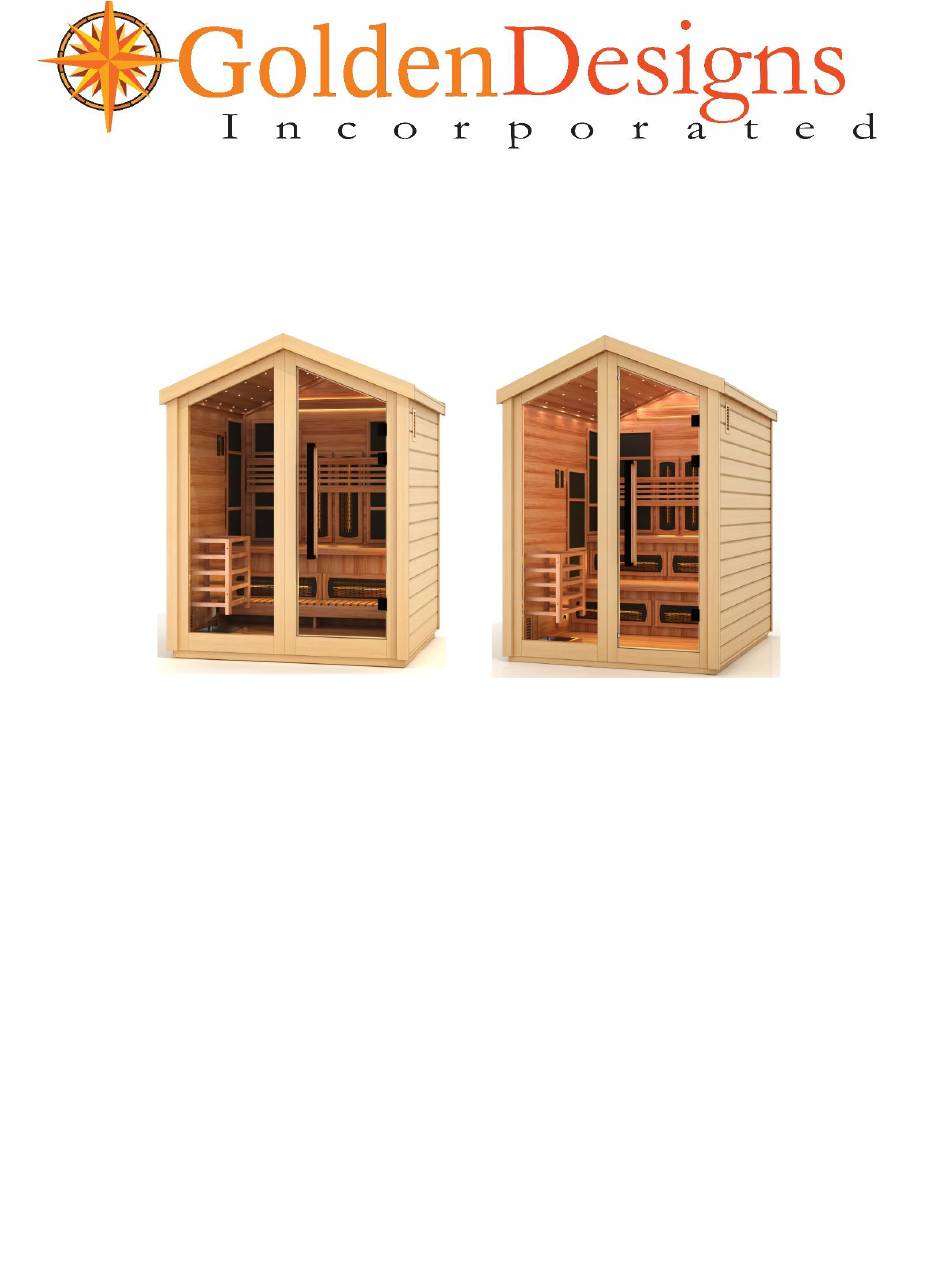

GDI-8523-01 / GDI-8526-01
3 & 6 Person Hybrid Saunas
Owner's Manual
SAUNA IS FOR INDOOR/OUTDOOR USE
GDI-8523-01 - 240VAC 30AMP Circuit Required (6kW Heater)
GDI-8526-01 - 240VAC 40AMP Circuit Required (8kW Heater)
Carefully and thoroughly read this Owner's Manual before using/operating the
sauna. We recommend keeping this Owner's Manual for regular review and future
reference. Follow your local codes and ordinances. The stove heater power
requirements do vary among manufacturer. The stove heater must be installed by a
certified licensed electrician per the manufacturer's manual. The stove heater must
be installed per the electrical code in your area with reference to the breaker and
wire sizes. Models are subject to change.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GDI-8523-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GoldenDesigns GDI-8523-01

Summary of Contents for GoldenDesigns GDI-8523-01

  • Page 1 3 & 6 Person Hybrid Saunas Owner’s Manual SAUNA IS FOR INDOOR/OUTDOOR USE GDI-8523-01 - 240VAC 30AMP Circuit Required (6kW Heater) GDI-8526-01 - 240VAC 40AMP Circuit Required (8kW Heater) Carefully and thoroughly read this Owner’s Manual before using/operating the sauna. We recommend keeping this Owner’s Manual for regular review and future reference.
  • Page 2 Thank you for your purchase. As you remove the parts from the boxes, be sure to examine them for damages. If your unit has any damages or missing parts, please contact Golden Designs Inc. See the Warranty section for more information. A Certified Licensed Electrician will be needed to install the electrical wiring.
  • Page 3 FOLLOW ALL INSTRUCTIONS AND BE CAUTIOUS OF SAFETY SYMBOLS. All electrical wiring must be performed by a certified licensed electrician. Although this manual is a universal manual, the information within this manual is applicable to each sauna. High Voltage Symbol: Be cautious as there is the presence of a high voltage current that flows through the equipment! General Caution Symbol: Be cautious as the equipment uses electrical current that can cause serious injury.
  • Page 4 8. When the equipment is not going to be used for an extended period of time, you can disconnect the sauna from the power source or turn OFF the dedicated circuit breaker. 9. Allow 30 seconds between turning the control system “On” and “Off”. By allowing 30 seconds between powering the control system “On”...
  • Page 5 23. Never use the sauna in combination with alcohol, medication, or drugs. 24. Pregnant women should never use the sauna. Women should also not use the sauna during their menstrual cycle. 25. If you have any medical condition, you must consult with your medical doctor before using the sauna.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS Visual Assembly Diagram Parts Description Schematics Main Power Switch Schematic Screw Identification and Location Chart Assembly Instructions Sauna Control Panel Tips for Using Your Sauna Safety Instructions Safeguards for Your Sauna Warranty Warranty Card WARNING: Visually inspect all heaters before assembly to make sure they are not damaged.
  • Page 7 *PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY* Visual Assembly Diagram GDI-8523-01 (SJ-8351) *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE. PLEASE NOTE THAT THE HEATER COMPONENTS ARE ALREADY MOUNTED ON THE WALL PANELS.
  • Page 8 *PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY* Visual Assembly Diagram GDI-8526-01 (SJ-8451) *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE. PLEASE NOTE THAT THE HEATER COMPONENTS ARE ALREADY MOUNTED ON THE WALL PANELS.

  • Page 9: Parts Description

    *PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY* PARTS DESCRIPTION *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE.
  • Page 10 *PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY* PARTS DESCRIPTION *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE.

  • Page 11: Schematics

    SCHEMATICS NOTE: The pictures and diagrams shown above/below are for representational purposes only. Actual model may vary. Parts subject to change.
  • Page 12 SCHEMATICS (continued) NOTE: The pictures and diagrams shown above/below are for representational purposes only. Actual model may vary. Parts subject to change.
  • Page 13 SCHEMATICS NOTE: The pictures and diagrams shown above/below are for representational purposes only. Actual model may vary. Parts subject to change.
  • Page 14 SCHEMATICS (continued) NOTE: The pictures and diagrams shown above/below are for representational purposes only. Actual model may vary. Parts subject to change.

  • Page 15: Main Power Switch Schematic

    *PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY* Main Power Switch Schematic *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE.

  • Page 16: Screw Identification And Location Chart

    Screw Identification and Location Chart...

  • Page 17: Assembly Instructions

    Assembly Instructions A. Choose a good location to install the sauna 1. The location must be dry, leveled, and away from any source of water. 2. The heater must be installed by a certified electrician. 3. Four adults are recommended for the assembly. 4.
  • Page 18 C. Installing the LEFT SIDE WALL PANEL and RIGHT SIDE WALL PANEL 1. For GDI-8523-01, two adults can place the LEFT SIDE WALL PANEL up and onto the lower of the two edges on the FLOOR PANEL. For GDI-8526-01, two - four adults will be needed to lift the LEFT SIDE WALL PANEL up and onto the lower of the two edges on the FLOOR PANEL.
  • Page 19 Please note that the junction boxes are not shown above on REAR WALL for GDI-8523-01 and LEFT SIDE WALL PANEL for GDI- 8526-01. SPECIAL NOTE: If the two front wall panels do not slide all the way down, then follow this tip: 1.
  • Page 20 E. Installing the ROOF PANEL 1. Before installing the ROOF PANEL, you will need to remove the indicated tile sections of the LEFT SIDE ROOF PANEL and RIGHT SIDE ROOF PANEL with a Philps screwdriver. This will allow you to make the necessary connections for the ceiling lights and to screw the two ROOF PANEL sections together.
  • Page 21 Figure 4a Three sections of the ROOF PANEL will need to be removed before installing Figure 4b...
  • Page 22 Three ROOF tile sections of the ROOF PANEL will need to be screwed back onto the ROOF PANEL and the ROOF stainless steel tile flange can be installed Figure 4c 2. You will now need to use the provided screws to mount the Roof PANEL to the side wall panels and front/rear wall panels from the interior of the sauna room.
  • Page 23 Figure 6 PANEL Please note that the junction boxes are on the REAR WALL GDI-8523-01 and LEFT SIDE WALL PANEL for GDI- 8526-01. Figure 6a G. Installing the BENCH SUPPORTS and BENCHES 1. For GDI-8526-01, locate the larger of the two BENCH SUPPORTS. This will be the upper BENCH SUPPORT.
  • Page 24 SUPPORTS. Use the provided screws to secure the BENCH in place. Figure 7b 3. For GDI-8523-01, locate the BENCH FOOT STEP. Use the provided screws to mount the BENCH FOOT STEP on the FLOOR PANEL in front of the BENCH...
  • Page 25 . Installing the Heater and Heater Wood Guard, and Door Handle Please Note: The heater must be installed by a certified electrician per the manufacturer’s manual. The heater must be installed per the electrical code in your area with reference to the breaker and wire sizes & wire material. Be sure to follow the manufacturer’s manual for proper and safe installation of the heater.
  • Page 26 When installing the door handle, you will need to put the wood side on the interior and the metal side on the exterior. Be sure to not overtighten the screws. Bird’s-eye View GDI-8523-01 GDI-8526-01 Figure 10 ASSEMBLY COMPLETED...

  • Page 27: Sauna Control Panel

    SAUNA CONTROL PANEL - GENERAL INTRODUCTION Please note that you can either have the stove heater operating or the Infrared heaters operating, but not both at the same time. You can turn the Main Power Switch knob to the left or right to select either the stove heater or the Infrared heaters to operate.
  • Page 28 3. Control Panels: Sauna Control Panel Light/BT Control Panel CONTROL PANEL OPERATION – Sauna Control Panel 1. First and to operate the Infrared sauna, be sure that the main power switch is turned to “2”. To provide power to the stove heater, the main power switch will need to be turned to “1”.
  • Page 29 power button for 5 seconds or more until you hear a beep and the sauna’s control panel turns ON. The LED will now be displayed. You can press the sauna’s control panel button again to turn the sauna’s control panel OFF. The sauna’s control panel power button will return to red.
  • Page 30 4. To adjust the timer, see the image below. You will press the clock button on either the left side or the right side. The left side adjusts the timer to decrease the time. The right side adjusts the timer to increase the time. 5.
  • Page 31 6. To change the temperature reading between Celsius and Fahrenheit, you can press the C/F button for a few seconds until you hear the control panel beep. Once you set this setting, it will become the default setting. 7. Please note that the when you are using the stove heater, you do want to turn OFF the Sauna Control Panel and switch the Main Power Switch to “1”.
  • Page 32 CONTROL PANEL OPERATION – Light/BT Control Panel 1. After the sauna has power, there will be no change on the Light/BT Control Panel until you press the power button. Please note that the Light/BT Control Panel is operable when the Infrared heaters are ON or when the Stove heater is ON. When the power button is pressed, you will see (4) lines displayed.
  • Page 33 4. Press the BT icon button to enable Bluetooth and the screen will display “bLU”. Next, you can search your device to pair with the sauna. Once paired, you will hear a musical prompt. Please note that no password is needed during the Bluetooth pairing.

  • Page 34: Tips For Using Your Sauna

    Tips for using Your Sauna 1) If you take a hot/warm shower or bath before using your sauna, you may perspire more and experience more comfort. 2) Drink water prior to, during, and after your sauna session to replenish body fluids. 3) The ventilation vent is installed on the sauna and should never be obstructed.
  • Page 35 5.) Pregnant or possibly pregnant women should contact their physician prior to using the sauna. Excessive temperature has a high potential for causing fetal damage during pregnancy. 6.) Hyperthermia Danger: the normal body temperature can't rise above 39°C (103°F). Symptoms of excessive hyperthermia include dizziness, lethargy, drowsiness, and fainting.

  • Page 36: Safeguards For Your Sauna

    19) Please make sure the supplied power meets the specifications required. Failure to meet the requirements may cause safety risks. 20) Do not attempt to touch any electrical parts or make repairs on your own when using the sauna. 21) Do not bump, hit, or break the heater as it may cause an electrical short and pose a safety risk.

  • Page 37: Warranty

    Limited Lifetime Warranty *Limited Lifetime Warranty: Golden Designs, Inc. warranties the sauna room against defects in material and workmanship for the life of the product from the original date of purchase. The sauna is for indoor use or outdoor use depending on the model. When placed outdoors, a water proof cover or the sauna shingle roof may be installed to cover the sauna room for protection.
  • Page 38 ▪ Improper use of the sauna ▪ Moisture or water seepage Surface cracks are not considered defects in material or workmanship, as they are normal characteristics of all woods. This includes minor cracks due to wood expansion and contraction. Since the wood used in construction may have been kiln dried, a certain amount of expansion and contraction occurs in the wood in a sauna environment.

  • Page 39: Warranty Card

    WARRANTY CARD Congratulations on your purchase from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 3550 Jurupa Street, Unit B Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.
