Art.no. 3085849
Eleiko Cable Single Station

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3085849 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eleiko 3085849

Summary of Contents for Eleiko 3085849

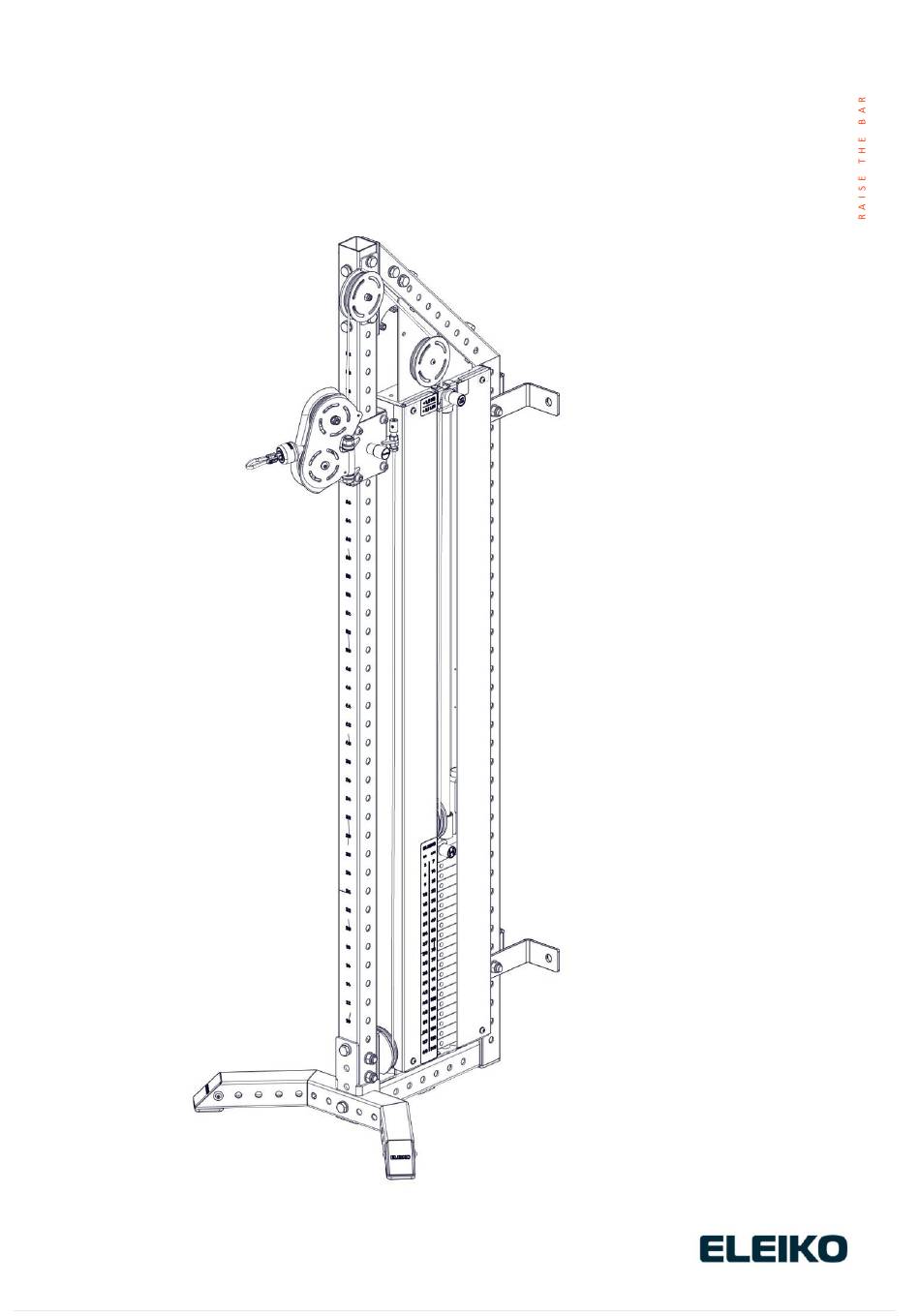

  • Page 1 Art.no. 3085849 Eleiko Cable Single Station...

  • Page 3: Table Of Contents

    Content Read Before Installation and Use Caution Safety instructions Preventive Maintenance and Inspections Regularly Spare parts and service Warranty Warning labels Product Info Purpose General instructions for use Description Safety Area User Guide Required tools Spare part list List of components Assembly instructions Checklist...

  • Page 4: Read Before Installation And Use

    It is also the responsibility of the purchaser of ELEIKO products to assess the suitability of the floor, and to choose appropriate fasteners depending on floor type when using ELEIKO products that needs to be bolted to the ground.

  • Page 5: Preventive Maintenance And Inspections

    Warranty All products manufactured by ELEIKO are warranted to the original purchaser to be free from defects in workmanship and / or materials under normal use or service as follows: · 10 years on welds on structural frame (NOT on moving parts) ·...

  • Page 6: Product Info

    Product Info Purpose The Eleiko Cable Single Station provides users with a wide range of excercises that target all muscle groups. All with a small footprint. General Instructions for Use 1. Use the selector pin to select training weight. 2. Adjust height on carriage by pulling the pop-pin.

  • Page 7: Safety Area

    Safety Area Before assembly, make sure you have enough space on all sides of the equipment to create a safety area. This safety area exists to avoid personal injury when using the equipment and need to follow the measurements set below. User Guide Required Tools You need the following tools to assemble the equipment.

  • Page 8: Spare Part List

    Spare Part List Contact Eleiko for spare parts. E-mail: info@eleiko.com | Phone: +46 35 17 70 70 3085601 a3 3085570 p38 2001624 2001485 2001445 3085466 p17 2000780-M12 3085570 p6 2001345 Ny bild, 2:1 2002288 2002289 (Tall Rack, 9m) Wire ø 3,3 mm, 8,2 m (9 m Tall Rack)

  • Page 9: List Of Components

    List of Components Box - Starter kit 2001963 M16 x 120 Locking Nut M16 Washer M8 M16 x 110 M16 x 100 2001385-L120 2001385-L110 2001379 2001422 2001385-L100 2001320 2001845 2001946 2001592 2001373 2001299...
  • Page 10 Box 3085601 for 120kg Box 3085850 for 90kg 3085601 p3 1x 3085601 p25 1x 3085601a14 (120kg) 1x 3085601a15 2002288 1x 3085850a2 (90kg) 3085601 a7 3085601 a8 3085601 a9 3085601 a6 3085601 a3 3085601 a1 3085601 a2 (120 kg) 19x (120kg) 3085850 a1 14x (90kg) (90kg)
  • Page 11 2001845 Remove the Top Cover Plate Forward Save the parts in case the Cable Attachment needs to be removed in the future. Washer M16 Loose screws! Locking Nut M16 Make sure this mark points up and face forward. M16x110 M16x120...
  • Page 12 2001320 Loose screws! Washer M16 Locking Nut M16 M16x100...
  • Page 13 Washer M16 M16x100 Locking Nut M16 Now tighten ALL M16-screws!
  • Page 14 Box Wall bracket kit – 2002074 Bolt to wall. Consult with a licensed contractor to choose the appropriate anchoring fasteners for your facility. A pre-attached glulam beam is also recommended to use between the brackets and the wall.
  • Page 15 K6S M8x12 Washer M8 Washer M16 Locking Nut M16 M16x100...
  • Page 16 M16x100 Washer M16 Locking Nut M16...
  • Page 17 3085570 p33 3085570 p34 2002253 NOTE! The box contains one of these two.
  • Page 19 19x (120kg) 14x (90kg)
  • Page 20 Need to point forward Forward Need to point inwards Inwards...
  • Page 21 Washer M8 K6S M8x30 Inwards Washer M8 K6S M8x12...
  • Page 22 Remove nuts! Save for the next step. Outwards Install with existing nuts. Inwards...
  • Page 23 Remove Plate. Be careful not to lose any parts! Plate Install the Cable Trolley around the beam and put back the Plate. Tighten screws, the carriage should be easy to move. Need to point in this direction. Attach Warning Sticker!
  • Page 25 Locking Nut M16 Washer M16 M16x110...
  • Page 26 Remove Nut...
  • Page 27 Install wire! Wire The wire must go inside this pin!
  • Page 28 The wire must go inside these pins!
  • Page 29 The wire must go inside this pin! The wire must go inside this pin!
  • Page 30 Insert wire Wire lock Pull the wire through the wire lock, tighten one screw and cut the wire when you have this alignment.
  • Page 31 Make a mark Loosen this screw and on the cable pull out the cable Tighten this screw Put the cable back Peel off the wire's coating, from mark to mark Make a second mark Cable lock Tighten all three screws very firmly! Recommended torque, 3 Nm Tight screws keep the cable in place!
  • Page 32 K6S M8x12 Washer M8 Attach the Selector Pin to the right hole...
  • Page 33 K6S M8x12 Washer M8 The Cover Plate with numbers goes to the left. Make sure to install these two plates on the same side as The selector Pin.

  • Page 34: Checklist

    To ensure the validity of your product warranty, make sure to review this checklist carefully. The warranty will not be applied if the checklist is not followed. Product Checklist The wire must be inside these pins. The wire must be inside this pin.
  • Page 35 The top weight must be pointing in this direction. I have read and understood that Eleiko always recommends that this product should be bolted to the ground. If you are someone other than the buyer and who performed the installation, you guarantee that the buyer has been notified of this recommendation.
  • Page 36 Eleiko Group AB Klastorpsvägen 18 302 62 Halmstad Sweden +46 35 17 70 00 info@eleiko.com...
