Summary of Contents for Eleiko 3085878

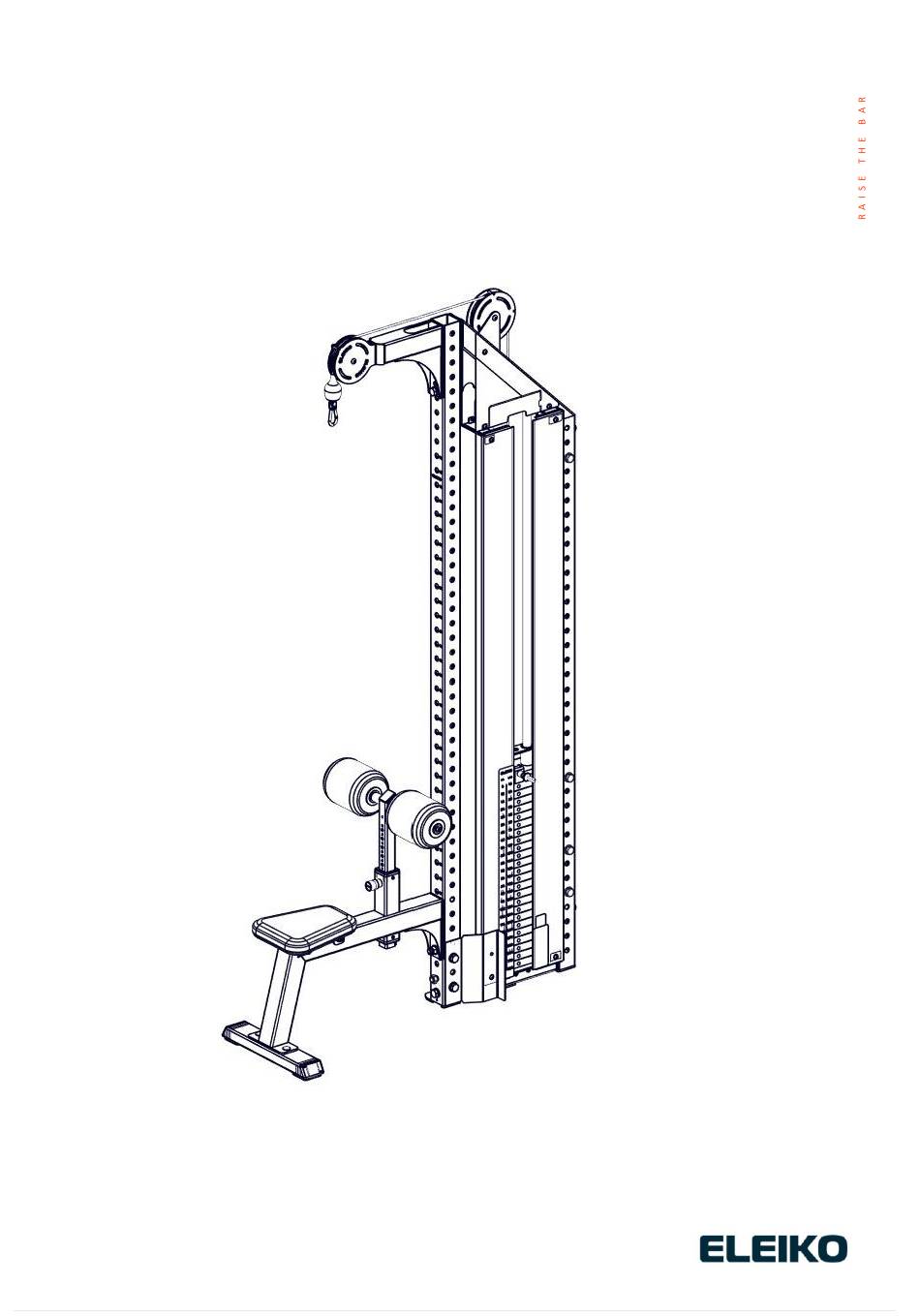

- Page 1 Art.no. 3085878, 3085878-MS-120, 3085878-FS-120, 3085878-WM-120 3085878-MS-150, 3085878-FS-150, 3085878-WM-150 Eleiko Cable Lat Pull Down...
-
Page 3: Table Of Contents
Content Read Before Installation and Use Caution Safety instructions Preventive Maintenance and Inspections Regularly Spare parts and service Warranty Warning labels Product Info Purpose General instructions for use Description User Guide Required tools Spare part list List of components Assembly instructions... -
Page 4: Read Before Installation And Use
ELEIKO-installer. Safety Instructions It is the responsibility of the purchaser of ELEIKO products to instruct all users and supervising personnel on proper usage of the equipment. All included warnings (labels) and instructions MUST be read before the use of any ELEIKO-equipment. -
Page 5: Preventive Maintenance And Inspections
Page 29 Bolt To Ground Eleiko recommends that this product should be bolted to the ground. Make sure the ground is solid and level. Consult a licensed contractor to choose the appropriate anchoring fasteners for your facility. See assembly instructions for the position of the anchoring points. -
Page 6: Product Info
Product Info Purpose The Eleiko cable lat pull down provides users with a wide range of excercises that target all muscle groups. All with a small footprint. General Instructions For Use 1. Use the selector pin to select training weight. -
Page 7: User Guide
Sizes: 14, 17 & 24 Sizes: 17 & 24 Sizes: 3,5,6 & 8 Knife Stepladder Spirit Level Spare Part List Contact Eleiko for spare parts. E-mail: info@eleiko.com | Phone: +46 35 17 70 70 Pulley Wheel Knee Pads Cushion 2001274 2002006 2001276 2002287 2002290 Wire ø... -
Page 8: List Of Components
List of Components Box - Starter kit 2002072 Box – 2001997-03... - Page 9 Box Cable - 3085858 3085816 2002253 3085570 p33 The box contains either one or the other of these two.
- Page 10 Only for 3085878-WM (Wall Mounted), page 19. Box Wall bracket kit – 2002074 Only for 3085878-FS (Free Standing), page 20. Box Angled leg support short kit – 3085910 Box Angled leg support kit – 2001925-pair...
- Page 11 Box – 2001997-03...
- Page 13 Starter kit – 2002072 Tall height! Easier to mount lying down. 2001320 2001374 Should point forward (where the seat is mounted)
- Page 14 Loose screws!
- Page 15 Starter kit – 2002072 Loose screws!
- Page 16 Starter kit – 2002072 Now tighten ALL M16-screws! (8 pieces)
- Page 17 Wall Mounted 3085878-WM Continue on page 18. Free Standing 3085878-FS Continue on page 19. Multi Station 3085878-MS Continue on page 22.
- Page 18 Wall Mounted 3085878-WM Box Wall bracket kit – 2002074 Bolt to wall. Consult with a licensed contractor to choose the appropriate anchoring fasteners for your facility. A pre-attached glulam beam is also recommended to use between the brackets and the wall.
- Page 19 Free Standing 3085878-FS Box Angled leg support kit – 2001925-pair Box Angled leg support short kit – 3085910...
- Page 22 Box Cable - 3085858...
- Page 24 If more practical in terms of space, choose this direction. To be preferred as most are right-handed.
- Page 29 Cable lock Pull the cable through the cable lock until you have this alignment.
- Page 30 Tighten this screw Loosen the screw Make a mark on the cable Pull out the cable Put the cable back Peel off the wire's coating, from the mark to the closest end Peel off carefully to avoid damage on the wire! Tighten all three screws very firmly! Recommended torque, 3 Nm Tight screws keep...
- Page 31 Box – 2001997-03 3085858a6 (120 kg) 3085858a7 K6S M8x12 Washer M8 3085858a8 (150 kg) Attach the selector pin to this hole.
- Page 32 Box Starter kit – 2002072...
-
Page 34: Product Checklist
To ensure the validity of your product warranty, make sure to review this checklist carefully. Unfortunately, the warranty will not be applied if the checklist is not followed. Product Checklist The cable must be under all three pins. This is a good reference line for how far down the carabiner part should be. - Page 35 Adjust the machine feet and level the product. I have read and understood that Eleiko always recommends that this product should be bolted to the ground. If you are someone other than the buyer and who performed the installation, you guarantee that the buyer has been notified of this recommendation.
- Page 36 Eleiko Group AB Klastorpsvägen 18 302 62 Halmstad Sweden +46 35 17 70 00 info@eleiko.com...
