Atoll Electronique PR300 EVO Owner's Manual

OWNER'S MANUAL ~ PREAMP

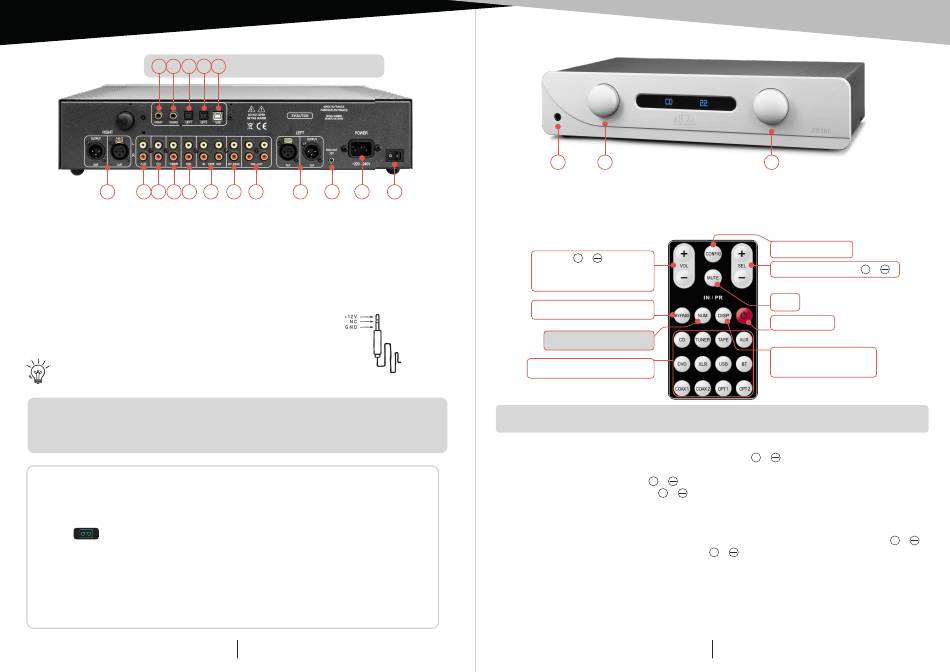

13 14 15 16 17
1 2 3 4 5
1) Left XLR Input/Output.
2) AUX or PHONO Input (optional).
3) CD Input.
4) TUNER Input.
5) DVD Input.
6) Tape Recorder Output (REC)(2)/
Tape Recorder Output (PLAY)(2).
(1) Trigger output: this output is used to control the switching
ON/SLEEP of any device equipped with a compatible Trigger
input (see instructions for use).
Trigger cable must be a stereo Male to Male jack plug
Ø 3,5 mm (1/8").
Optional Digital Board
13 & 14) Coaxial Inputs 1 & 2.
15 & 16) Optical Inputs 1 & 2.
(2) Tape input / output - monitoring loop:
The TAPE function allows the recording of music from any selected source.
You can also activate a permanent monitoring loop as follows: select your source
then hold the TAPE button on the remote control for about 3 seconds. The TAPE
symbol lights up and indicates that the monitoring loop is activated. In this
mode, direct access to the TAPE input is no longer possible.
You can use this mode to insert an equalizer between the TAPE IN and TAPE OUT
sockets.
This function is memorized even if you switch off the device from the mains. To
deactivate this mode, simply hold down the TAPE button on the remote control again
for 3 seconds.
CONNECTING
Optional Digital Board
6 7 8 9 10 11
7) BY-PASS Input.
8) Preamp Outputs (to 1 or 2 power amps
or a subwoofer).
9) Right XLR Input/Output.
10) 12V Trigger Output .
(1)
11) Mains connection.
12) Main switch.
17) USB-B Input.
Page 4 ATOLL ELECTRONIQUE
17
18) Headphone jack: connecting headphones cuts off the analog outputs (XLR/RCA).
19) Power ON/SLEEP knob by pressing; source selection by rotation.
12
20) Power on knob; volume management (rotation) or menu access.
Volume
adjustment and selection
in menus
BY-PASS input selection
Jack
Ø 3,5 mm
Selecting digital inputs
Direct access to sources
Access to the OPT, COAX, USB, BT inputs is only possible if the amplifier is equipped with the
(1)
DAC board.
CONFIG: Access to menus:
– Balance (1 press): the balance is adjusted using the VOL
You can save this setting by pressing and holding the CONFIG key.
– Display (2 presses): use the VOL
– SBY ECO (3 presses): use the VOL
to economy mode when in standby.
- OFF: the appliance will remain in preheating mode: consumption will be 18 W.
- 10 sec, 5 min, 15 min, 30 min, 60 min: Consumption <0.5 W after the set time.
– A long press on CONFIG renames the selected entry. Select the characters using the VOL
keys and move to the next character using the SEL
The BY-PASS input allows you to use your PR300 as a passive preamplifier (to be connected to the output
of an audio-video preamp for example). This input is selected via the front panel or by the BY-PASS
button on the remote control. Once this input is selected, the word "BY-PASS" is displayed on the screen.
To exit the BY-PASS, press the BY-PASS button on the remote control or change the source.
DETAILS OF FUNCTIONS
18
REMOTE CONTROL
+ / , balance
(*)
(1)
+
/ keys to select ON/OFF to turn the display ON or OFF.
+
/ keys to select the time after which the appliance will switch
+
/ keys and confirm by pressing CONFIG again.
+
(*) USING THE BY-PASS INPUT
Page 5 ATOLL ELECTRONIQUE
PR300 EVO
19
Access to menus
Selection of sources /
+
Mute
ON/SLEEP
Display management:
ON/OFF
/ keys.
/
+
