C
:
ONNECTING

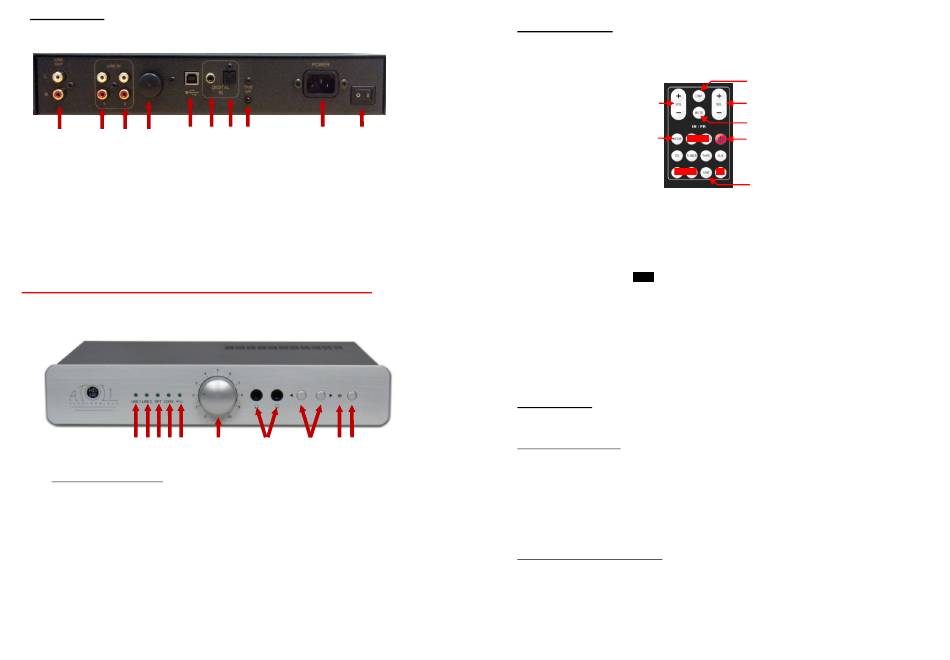

Rear view of appliance:
1
2 3
4
5 6 7 8
1- Analog. Outputs (Left & Right)
2- Line 1 Input
3- Line 2 Input
4- Bluetooth receiver
5- USB Input (B type)
This appliance is equipped with a Trigger that allows the switch ON/OFF of any
amplifier equipped with the same kind of trigger inputs (ATOLL's amplifiers).
Use the cable included Male to Male STEREO jack plug 3.5mm (1/8")
Front view of appliance:
14 15
11 12 13
Inputs leds indicators:
11- LINE 1 Input (analog.)
12- LINE 2 Input (analog.)
13- Optical Input (digital)
14- Coaxial Input (digital)
(1)
15- USB-B/Bluetooth Inputs
(1)
USB-B input lights green; Bluetooth input lights blue.
(2)
Headphones Outputs (jack 6,35mm) : the connection of one or two
headphones commutates the relay and thus cut the sound on the level of
the preamp outputs.
(3)
Led indicator : orange=stand-by; green=switch on; red=mute
9
10
6- Coaxial Input
7- Optical Input
8- Trigger Output
9- Power plug
10- On/Off Power Switch
16
17
18
19 20
16- Volume setup knob
(2)
17- Headphones Outputs
18- Sources selectors knobs
(3)
19- On/Off indicator led
20- On/Stand-by knob
R
C
:
EMOTE
ONTROL
Your Integrated can be used with our global ATOLL remote control (optional). Your
Remote Control is fully equipped with 2 Lithium 3V batteries CR2025.
Volume - & +
Bluetooth
{
(1)
Direct sources access
(1) Direct Access keys:
- CD key = Line 1
- Tuner key = Line 2
- Tape key = OPT (Optical Input)
- AUX key = COAX (Coaxial Input)
- USB key = (USB
Input)
(2) Display: Allows switching On/Off all indicators leds of the front panel. They'll
always get on after a Stand-by or Switch On the appliance.
(3) MUTE: MUTE key of the remote cuts Headphones Outputs and also the Preamp.
Outputs of the Appliance. To remove from MUTE, use the MUTE key again or
with the key volume +.
BLUETOOTH: (MODE key)
Your appliance allows the reception of audio signals sent since any devices having a
Bluetooth transmitter (Smartphone, tab, computer...).
First time association:
- Activate the Bluetooth connectivity of your emitter device;
- Select your appliance on the list of possible receiver (named ATOLL HD120);
- With key of the remote or with keys SEL +/- (18) of the front panel, select the
Bluetooth input of your HD120 (led 15 lighting in blue).
The whole audio signals which will be read on your device source will then be
transmitted towards your HD120. Your emitter device will remain associated until
you switch off your HD120 but he will remain visible for your emitter.
Association of another emitter:
Once associated to an emitter, you'll need to switch completely your HD120 off in
order to make it visible from another emitter.
The quality of reception of the signal can be dependent on the power of the Bluetooth
emitter and the distance between the 2 devices. Avoid being up to more than 5 meters
of your HD120 for a correct reception without any risks of signal cuts.
(2)
Display
Sources selection - & +
(3)
Mute
On/Stand-by
USB-B
