Atoll Electronique IN30 Owner's Manual

C :
ONNECTING

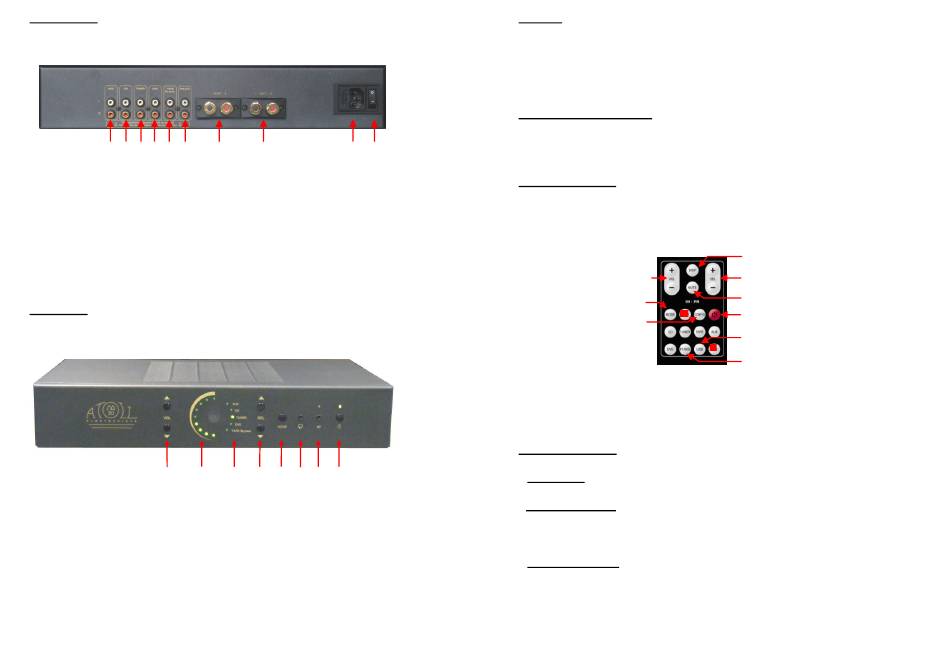

Rear of Amplifier:
1 2 3 4 5 6
1) Aux Input
2) CD Input
3) Tuner Input
4) DVD Input
5) Tape Input (or By-Pass (*) )
(*)
Connect the By-Pass input to an A/V preamplifier. By selecting this input, your
integrated will work as a power amplifier, by-passing the preamp. section. (see p5)
F :
UNCTIONS
Front view of appliance:
13
13) Volume keys + & - ; By-pass selection (see p5)
14) Noise level indicator (left balance level & « wattmeter »);
15) Source selected indicators (right balance level & « wattmeter »);
16) Source selection keys ;
17) MODE : select : Mute, Balance & « wattmeter » ; see mode function p4
18) Headphones Output (3,5 mm) ;
19) Jack 3,5 mm Input for Media Player and its Input selection indicator ;
20) Power ON/OFF key: OFF (orange), ON (green) or Mute (red) ;
3
7 8 9 10
6) Preamp. Output
7) Right Channel Output
8) Left Channel Output
9) Power plug
(with protection fuse)
10) Power switch
14 15 16 17 18 19 20
A :
DVISES
- To optimise the performances of your amplifier, you should switch it on at least
half an hour before any listening, the time for power stage to reach their ideal
working temperature. While not using your integrated, it is better to use the stand-
by position, so that the power stages remains at their optimal temperatures.
- You can use the Pre-out for switching a subwoofer.
P :
ELECTRONIC ROTECTION
An electronic system is equipped on your amplifier. If you go over the maxima power
allowed, the led indicator goes « red » and the amplifier cuts off automatically after
few seconds. It is then ready to use.
R C :
EMOTE ONTROL
Your Integrated can be used with our global ATOLL remote control. (optional)
Your Remote Control is fully equipped with 2 Lithium 3V batteries CR2025.
IMPORTANT : Keys of the remote control sometimes do not have the same action
as keys of the front panel.
Volume - & +
(& Balance setup)
Access to « wattmeter » mode
Access to the Balance setup
{
direct sources access
(1) "Mute" is deactivate with the volume + key and also by a second press on the
MUTE key, or by switching off the amplifier. In MUTE mode, level is shown by the
upper led indicator.
MODE F :
UNCTIONS
MODE key of the front panel gives access to several setup :
- Brief press: mute the speakers Outputs (use this function while listening with the
headphones). A second push reactivates Outputs.
- PRESS 2 seconds: gives access to the BALANCE setup : Balance is represented by
both sides left and right of leds indicators. Press VOL – to rise left channel, and press
VOL + to rise right channel. Balance setup keep operating while the appliance is put
on Stand-by. This setup is cleared if the applaince is cut off with the power switch.
- PRESS 4 seconds: Gives access to the « wattmeter » option. Depending of sound
level, indicators shows the Output power measurments. With that mode, all other
functions are available.
selects all lights On or Off
Sources selection - & +
(except by-pass)
Mute (1)
Stand-By
Selection of MP Input (19)
By-Pass: select the by-pass input while
pressed during approx. 3 seconds.
4
