Atoll Electronique IN50se Owner's Manual

C :
ONNECTING
Rear of Amplifier:
1 2 3 4 5 6 7 8
1) Auxiliary Input (or phono, or digital)
2) C.D. Input
3) Tuner Input
4) DVD Input
5) Tape Input (PLAY)
6) Tape Output (REC)
(*)
Connect the By-Pass input to an A/V preamplifier. By selecting this input, your
integrated will work as a power amplifier, by-passing the preamp. section.
F :
UNCTIONS

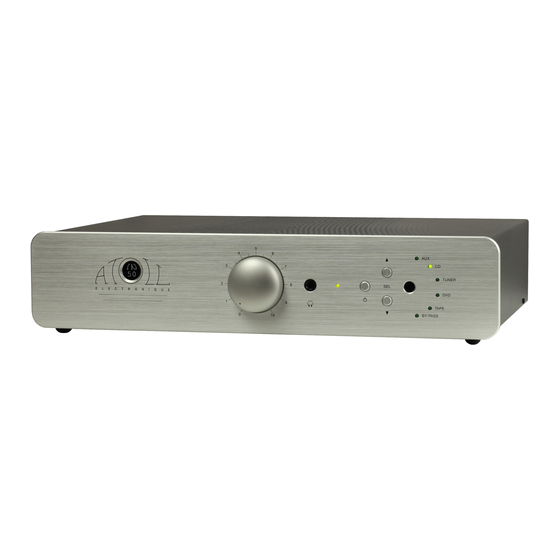

Front view of appliance:
13) Volume knob
14) Headphones (cuts the speakers when a
headphones is plugged)
15) Power indicator led (orange=stand-by;
green=switch on; red=mute)
2
9 10 11 12
(*)
7) By-pass input
8) Preamp. Outputs
9) Right channel Output
10) Left channel Output
11) Power Plug
12) Power Switch
13 14 15 16 17 18 19
16) Stand-By key
17) sources selections keys
18) i.r. captor
19) sources indicators leds
A :
DVISES
- To optimise the performances of your amplifier, you should switch it on at least
half an hour before any listening, the time for power stage to reach their ideal
working temperature. Between two utilisations, it is better to use the stand-by
position, so that the power stages remains at their optimal temperatures.
- Double Pre-out can be use for bi-amping loudspeakers directly from Integrated.
You can also use those pre-out for a subwoofer.
E P :
LECTRONIC ROTECTION
An electronic system is equipped on your amplifier. If you go over the maxima power
allowed, the led indicator goes « red » and the amplifier cuts off automatically after
few seconds. It is then ready to use.
R C :
EMOTE ONTROL
Your Integrated can be used with our global remote control. (optional)
Your Remote Control is fully equipped with 2 Lithium 3V batteries CR2025.
Volume - & +
{
direct sources access
(1) ):"Mute" is deactivate with the volume key + and also by a second press on the
MUTE key, or by switching off the amplifier.
T S :
ROUBLES AND OLUTIONS
TROUBLES
- The power switch (12) is on wrong
- The power led (15) do not
switch on;
- The sector wire is badly plugged;
-.The power led (15) is on but - Input selector (17) is on the wrong
there's no sound;
- There is no sound from one
- Check all connections between the
speaker whichever input is
selected;
-. There is no sound from one
-. Check all connections between the
speaker when an input is
selected;
Sources selection - & +
(except by-pass)
Mute (1).
Stand-By
By-Pass : : select the by-pass input while
pressed during approx. 3 seconds.
PROBABLE CAUSES
position ;
position;
amplifier and the speakers;
amplifier and the input;
3
