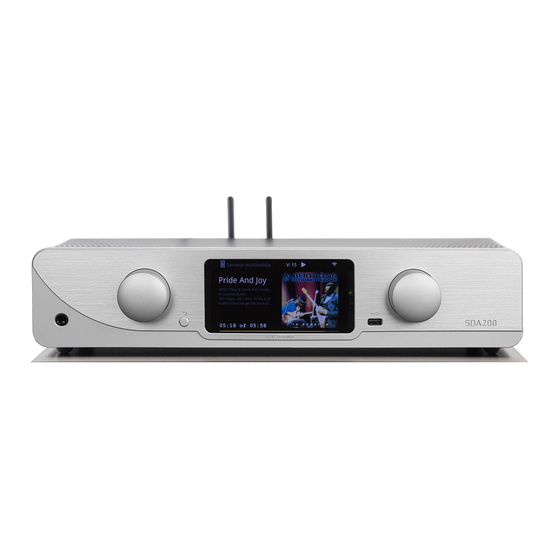

- Page 1 OWNER’S MANUAL STREAMER AMPLIFIER SDA200 SIGNATURE E L E C T R O N I Q U E...
-
Page 2: Table Of Contents
Feel free to take advice from your specialist dealer. YOU WILL FIND ENCLOSED – An SDA200 Signature streamer. – Two antennas. – A power lead. – This manual with the certificate – A remote control. of guarantee. Page 2 ATOLL ELECTRONIQUE... -
Page 3: General Information
65 800 µF Dynamic: 112 dB Input Impedance: 220 kΩ Distortion at 1kHz: 0,05% Bandwidth: 5Hz - 100kHz Rising time: 2 µs Sensibility: 350 mV Signal/Noise Ratio: 100 dBA Digital/analog Converter: Burr-Brown PCM1792 Dimensions: 440×320×90mm Weight: 13,0 Kg Page 3 ATOLL ELECTRONIQUE... -
Page 4: Connections
You will find the antennas in the bag of the remote control. Make sure that the WIFI and Bluetooth® antennas are correctly installed before any connection and use. Please use the 2 supplied antennas (identical) or an antenna with a male connector. Page 4 ATOLL ELECTRONIQUE... -
Page 5: Atoll Remote Control
39) Inputs selection keys: Coaxial 1; Coaxial 2; Optical 1; Optical 2; Line1; Line2; BYPASS (press 4 seconds). 40) FAV: add or remove a track or radio. 41) Keys CD: they allow to control ATOLL CD players. Page 5 ATOLL ELECTRONIQUE... -
Page 6: Connecting Setup
Trigger cable must be a Male to Male jack plug 3.5mm (1/8”) From then on, each time the Streamer comes out of standby, the amplifier will turn on. It will also turn off each time it goes to sleep. Page 6 ATOLL ELECTRONIQUE... -
Page 7: Uses
If you already plugged the network cable, the device will indicate that the appliance is connected The symbol indicates that the wired link is established. If not, configure the network while choosing “Configure Wired” and then “Manual”. Here you can enter directly the IP address. Page 7 ATOLL ELECTRONIQUE... - Page 8 This menu allows to choose the standby timeout : – When the device is not working (choice between 5,10, 15, or 30 minutes). – When the device is working (choice between 1, 8, or 24 hours). Page 8 ATOLL ELECTRONIQUE...
-
Page 9: Playlists
Favorites / History / Popular podcasts / Trend / Filter / Search. FRONT USB / REAR USB Select one of those inputs to read all music files from a USB key or Hard Disk. Readable files system can be FAT32, NTFS, EXT 2/3/4. Page 9 ATOLL ELECTRONIQUE... -
Page 10: Media Server
The quality of reception of the signal can be dependent on the power of the Bluetooth® emitter and the distance between the 2 devices. Avoid being up to more than 5 meters of your SDA for a correct reception without any risks of signal cuts. Page 10 ATOLL ELECTRONIQUE... -
Page 11: Preamp / Bypass Functions
“OK” and then press “Search”. On music web services (Tidal, Qobuz, Deezer) you can add filters on your research (All/Title/Albums/Artists/ Playlists). Use your phone, tablet or computer as a remote control for Spotify. Page 11 ATOLL ELECTRONIQUE... -
Page 12: Troubleshooting Table
– Turn off the power switch level before restarting. WARRANTY ~ SDA200 Sig to present to your dealer and to join with your purchase invoice when sending back the appliance to the service center or the address below: ATOLL ELECTRONIQUE® Bd des Merisiers 50370 BRECEY FRANCE WARRANTY CONDITIONS This device was made to give you complete satisfaction.
