C
:
ONNECTING

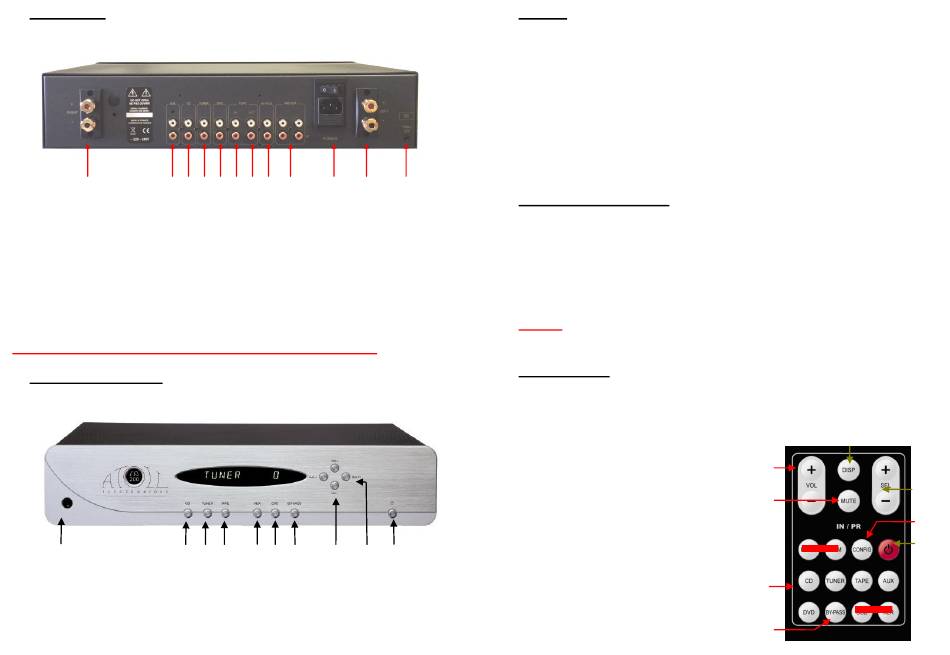

Rear of Amplifier :
11
1 2 3 4 5 6 7
1) Aux. Input (or phono)
2) C.D. Input
3) Tuner Input
4) DVD Input
5) TAPE Input (PLAY)
6) TAPE Output (REC)
7) BY-PASS Input
This appliance is equipped with a Trigger that allows the switch ON/OFF of any
amplifier equipped with the same kind of trigger inputs (amplifier ATOLL AM200se).
Trigger cable must be a Male to Male STEREO jack plug 3.5mm (1/8")
D
:
ETAILS OF FUNCTIONS

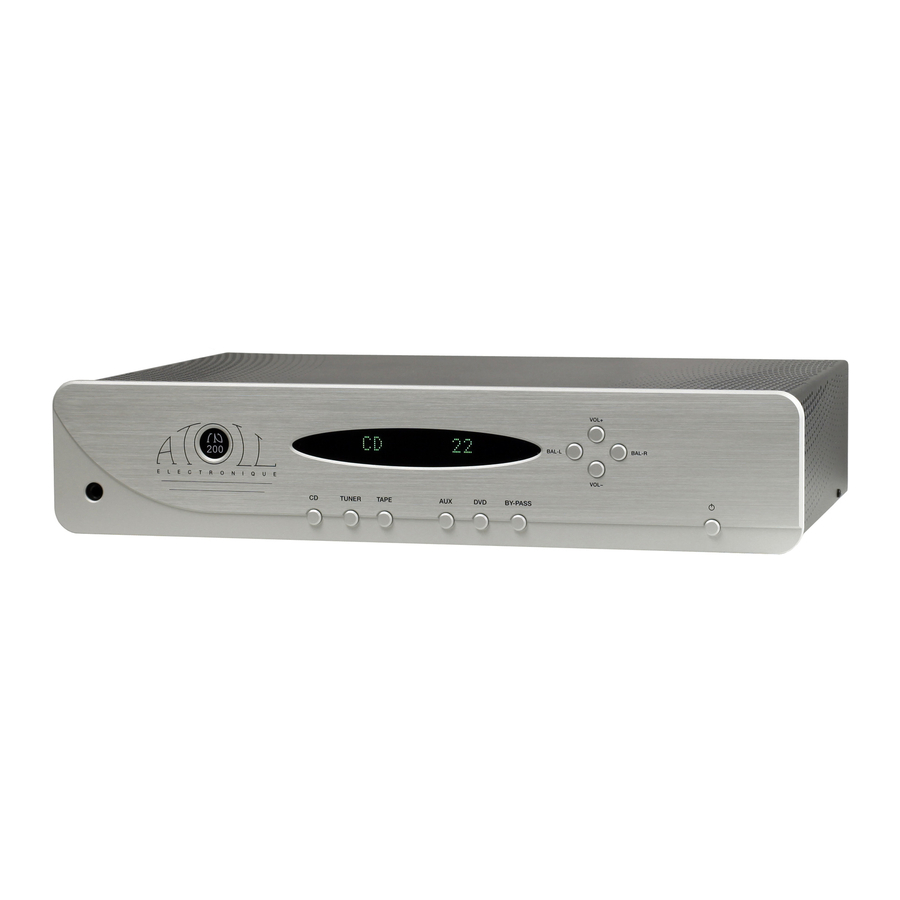

Front view of Amplifier:
15
2 3
Knobs 1, 2, 3, 4, 5 and 7 correspond to Outputs direct access.
12) Volume knobs + & -
13) Balance knobs Left & Right.
14) Stand-by.
15) Headphones: Sound in speakers is cut off when a headphones is plugged.
8
9
10
12
8) Preamp. Outputs (use to connect
1 or 2 power amp or a Subwoofer)
9) General switch and
power plug (with internal
fuse for protection)
10) Left channel Output
11) Right channel Output
1 4 7
12
13 14
5
A
:
DVISES
- To optimise the performances of your amplifier, you should switch it on at
least half an hour before any listening, the time for power stage to reach
their ideal working temperature. Between two utilisation, it is better to use
the stand-by position, so that the power stages remains at their optimal
temperatures.
- We advise you to use good wires to link with the other elements (CD
player, loudspeakers...). Don't hesitate to take advise from your dealer.
- Your Amplifier is equipped with a temporised switch on. A relay protect
loudspeakers on output power stage from over-voltage.
U
B
-P
I
:
SING THE
Y
ASS
NPUT
The By-pass Input offer you the capacity to use your Integrated as a
Power amplifier (plugged to an A/V processor a.i;). To avoid any error you
can select this mode only via the front panel of Integrated. Once selected,
mention « BY-PASS » appears on display. Then, no other functions are
available from front panel or remote Control. The Integrated ca be used
exactly as a Power Amp. Press once By-pass to get back from By-pass.
Careful : Put the volume at the minimum before any use of By-pass
Input.
Remote Control
:
All functions of the remote control are common to those on front panel. The
remote control is also able to drive all others ATOLL's products : CD
player ; Tuner ; Integrated or preamplifier having this option.
16) Mute.
17) Inputs selection + & -.
18) Balance setup (correspond to
knobs 13) of front panel : once inside
the Balance menu, setup with keys Vol
– et Vol +.
19) selects brightness of display
(clear, medium, off).
20) Inputs direct access : Only CD,
Tuner, Tape, Aux. and DVD are
available for this product.
21) Selection of By-Pass (press 3
seconds).
19
12
17
16
18
14
20
21
21
