Atoll Electronique AV500 Owner's Manual

C :
ONNECTING
Rear of Amplifier:
1 2 3 4 5
1) Center output
2) Rear Left output
3) Rear Right output
4) Front Left output
5) Front Right output
11) Power Plug (with fuse)
D :
ETAILS OF FUNCTIONS

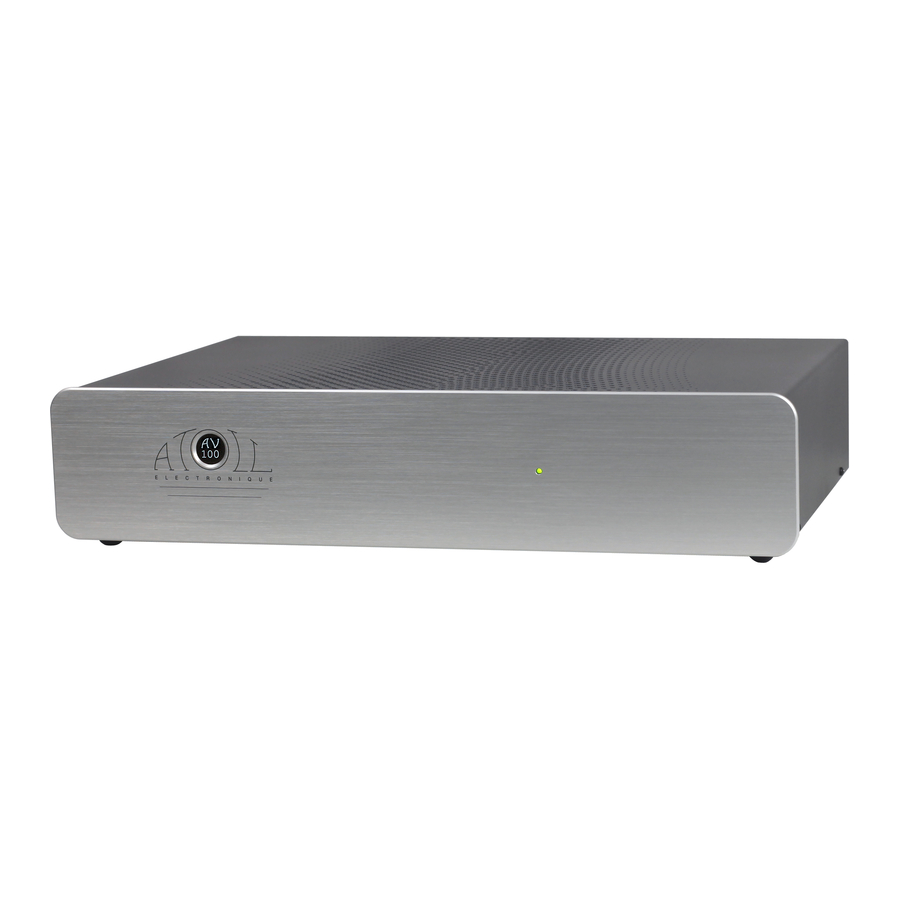

Front of Amplifier:
7) Power indicator led
E.C. MARKING:
E.C. marking certified the conformity with low tension directive 73/23/CEE,
directive CEM 89/336/CEE and national transpositions.
2
6 7 8 9 10 11
6) Center In/Out
7) Rear Left In/Out
8) Rear Right In/Out
9) Front Left In/Out
10) Front Right In/Out
7
A :
DVISES
- To optimise the performances your amplifier, you should switch it on at least half
an hour before any listening, the time for power stage to reach their ideal working
temperature. Between two utilisation, it's better to use the stand-by position, so
that the power stages remains at their optimal temperatures.
- We advise you to use good wires to link with the other elements (Preamp.,
Loudspeakers...). Don't hesitate to take advises from your dealer.
- Your Amplifier is equipped with a temporised switch on. A relay protects
loudspeakers on output power stage from over-voltage.
G C :
LOBAL ONNECTIONS
Here is below an example of how to interconnect 1 multichannel preamp PR5.1, 1
AV500 and 5 loudspeakers. With 2 AV500 (1 AV500 for tweeters and 1 for bass), it
is always possible to make a biamplification. In that case, drive the 2nd AV500 from
outputs of the first one.
- + - +
Front Left
- +
Rear Left
- +
Center Front Right
- +
Rear Right
3
