Atoll Electronique MA100 Owner's Manual

C :
ONNECTING

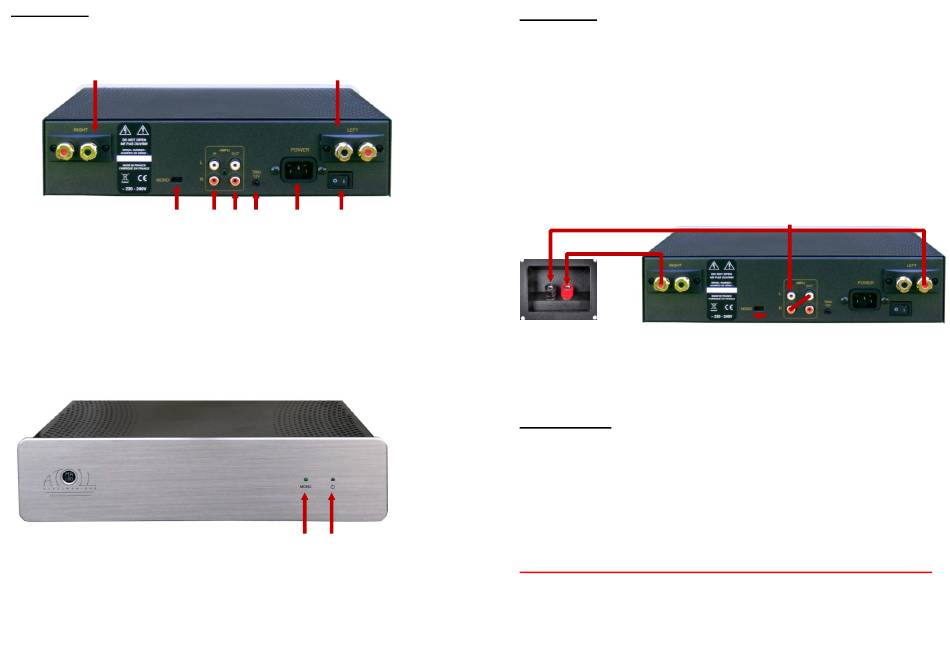

Rear view of appliance:
1
3
1- Speakers Output (Right)
2- Speakers Output (Left)
3- Mono switch
4- Analog Input
Front view of appliance:
9- Mode Mono led indicator
10- Power On/Off led indicator
2
4 5 6 7 8
5- Analog Output
6- Trigger 12V Input
7- Power plug
8- On/Off Power Switch
9 10
M M :
ONO ODE
Your appliance can be switch on a mono power amplifier. Here are the steps
to switch it on mono:
- Switch off and unplugged all cables of your amplifier;
- (a) Put the Switch (3) to MONO (on the Left)
- (b) Plug the signal (from preamp.) into the AMPLI IN (White)
- (c) Make a link (cable) between Line In (4) (red) and Line Out (5) (white);
- Link the Speaker as shown below:
(d) Left Red Output to Black Input of the speaker.
(e) Right Red Output to Red Input of the speaker;
(d)
(e)
Speaker
- Do the same way for the second Mono amplifier for the other speaker;
T I :
RIGGER NPUT
This input allows the control ON/OFF of your amplifier simultaneously to
any device with a 12V trigger outlet. To make the system operating, the
ON/OFF switch of your MA100 must remain OFF (position (0)). If the
switch is ON (position I), the amplifier will work but not the trigger function.
Trigger cable must be a Male to Male STEREO jack plug 3.5mm (1/8")
(b)
(a) (c)
