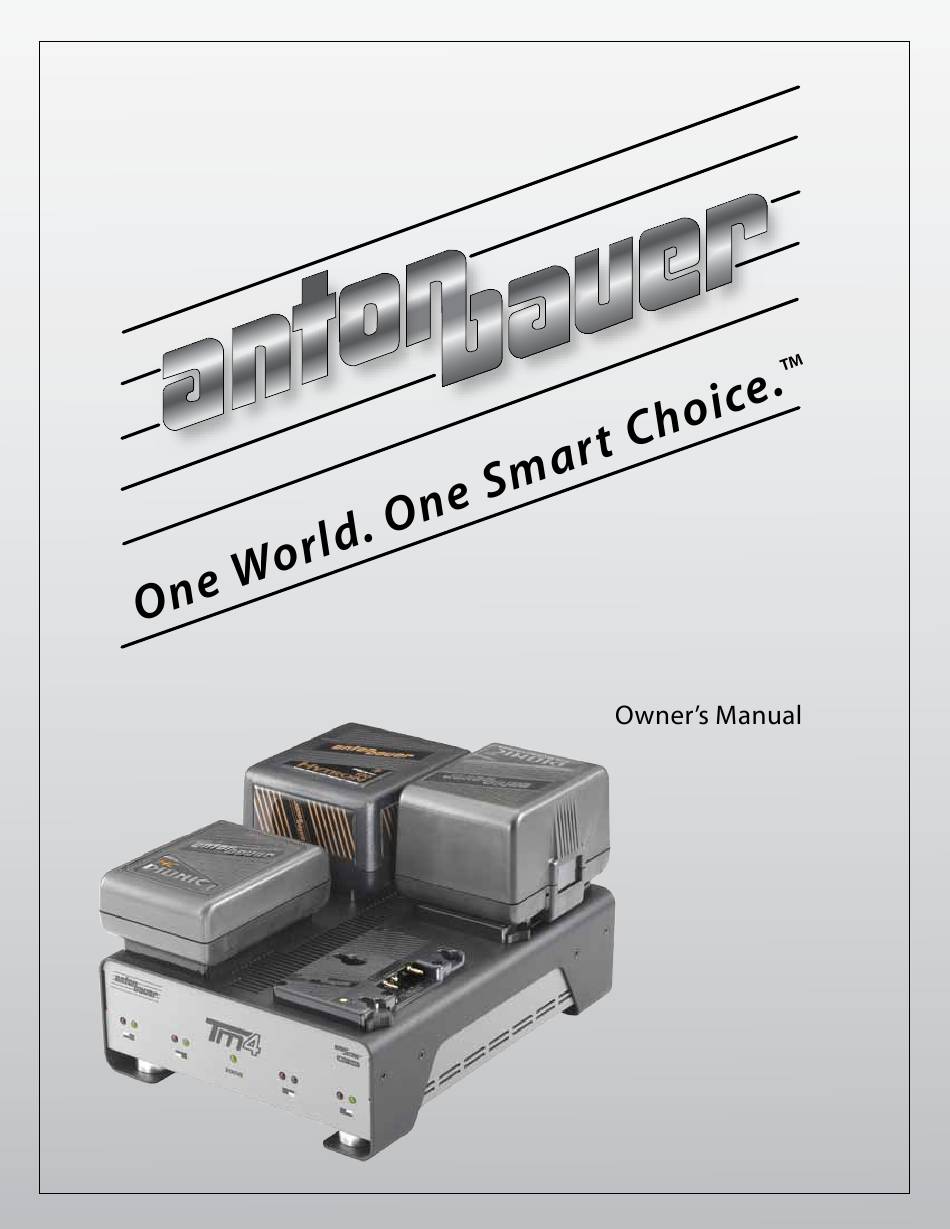

- Page 1 Approved Copy ® Simultaneous Four Position Fast Charger To ensure safe and proper use of this product, please read this owner’s manual thoroughly before use. A7595-0367 Rev B...
-
Page 2: Table Of Contents
Approved Copy TABLE OF CONTENTS INTRODUCTION STANDARD FEATURES SAFEGUARDS GROUNDING/EARTHING OPERATION Self-Test Charging Applications Three Stage Charging Methodology LED Indications CHARGE TIMES FCC NOTICE SPECIFICATIONS LIMITED WARRANTY This unit was packaged at the factory to arrive intact at its destination. If there is any damage to the packaging or the unit when received, please notify the carrier immediately. -
Page 3: Introduction
Approved Copy INTRODUCTION The TM4 is a simultaneous Four Position Fast charger designed to safely and reliably charge Anton/Bauer Logic Series Batteries. As a ® ® simultaneous charger each position operates independently allowing four batteries to charge at the same time. (See battery charge times pg.4) -
Page 4: Grounding/Earthing
If any doubt exists about the correct grounding of the THREE STAGE CHARGING METHODOLOGY power point, consult a qualified electrician. In general, the TM4 will deliver a three stage charge routine to each battery. IMPORTANT: The wires in this main lead are colored in accordance 1. -
Page 5: Led Indications
LED INDICATIONS Each charge position of a TM4 has a pair of LEDs (one red, one green) that indicates the status of the battery attached to that position. The following table identifies all of the TM4 indications and their meaning:... -
Page 6: Charge Times
US Patent Laws and the International Safety Standard Approvals, which this unit carries. The mains input of the TM4 is fused using a printed circuit board mounted device that should be replaced ONLY by a qualified service... -
Page 7: Limited Warranty
ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES. 14 Progress Drive, Shelton, Connecticut 06484. If you (the purchaser of the Product from Anton/Bauer, or the person for whom the Product This warranty is to be construed and enforced in accordance with the... - Page 8 Approved Copy The following are trademarks of Anton/Bauer, Inc.: Anton/Bauer, Anton/Bauer logo and parallelogram design, Aspekt, Automatique, DataTap, DIONIC, Elipz, Egripz, Elightz, Essentialz, Gold Mount, HubZ, HyTRON, Impac, Interactive and design, LifeSaver, Logic Series, Logic Series Logo, Maxx man logo design, Nexus, PowerStrap, Proformer, Probe, ProPac, RealTime, Satellight, Snap-On, Stasis, Stasis Flex, Tandem, TrimPac, Ultrakit, Ultralight, “One World.
