Summary of Contents for Anton/Bauer GM2
- Page 1 USER GUIDE GM2 / VM2 Dual Charger GM4 / VM4 4 - Position Micro Battery Charger 8475-0141 - GM2 Dual Charger Gold-Mount 8475-0143 - VM2 Dual Charger V-Mount 8475-0144 - GM4 4-Position Charger Gold-Mount 8475-0145 - VM4 4-Position Charger V-Mount...
- Page 2 Original Instructions: English All rights reserved throughout the world. No part of this document may be stored in a retrieval system, transmitted, copied or reproduced in any way, including, but not limited to, photocopy, photograph, magnetic or other record without the prior agreement and permission in writing of the Vitec Group Disclaimer The information contained in this manual is believed to be correct at the time of printing.
-
Page 3: Table Of Contents
Warning Symbols Used in these Instructions ......4 Intended Use ............... 4 Safety............... 4 About this user guide. -
Page 4: Warning Symbols Used In These Instructions
Intended Use CAUTION! Using alternative power sources will invalidate the system EMC liability. GM2 / VM2 battery charger can simultaneously charge two V-Mount or Gold-Mount batteries while powering your camera accessories. CAUTION! Do not exceed the current output limit of the Lithium-ion batteries, like the Anton/Bauer GO 90 charge in product when powering auxiliary devices. - Page 5 Do not use solvents or scouring agents. Examples of CAUTION! The product should not be used outside approved solvents are Cidex® and Windex®. Consult Anton/Bauer the operating temperature limits. Refer to the product Customer Support Group for approved list of cleaning agents.
-
Page 6: About This User Guide

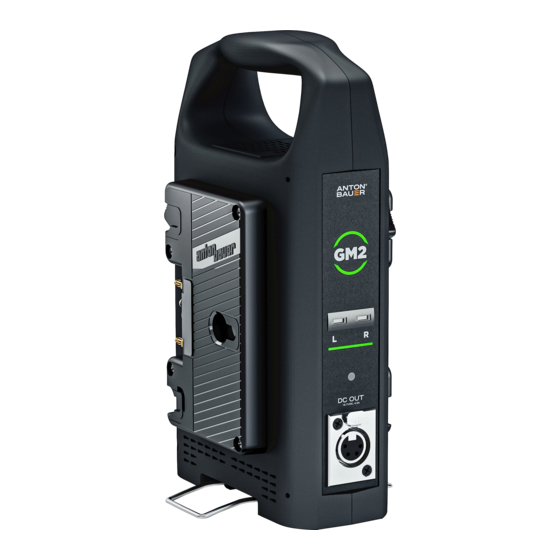

About this user guide Introduction GM2 Dual Gold-Mount Battery Charger / VM2 Dual V-Mount Battery Charger / GM4 4-Position Micro Charger (Gold-Mount) / VM4 4-Position Micro Charger (V-Mount). GM2 / VM2 battery charger can simultaneously charge two Gold-Mount or V-Mount batteries simultaneously while powering your camera accessories. -
Page 7: Components And Connections
Components and Connections Carry Handle Power Switch (All Models) LED Battery Charging Status Battery Mount AC Input Battery Mount (2 X V-Mount 100 / 240 VAC, (2 X Gold-Mount Batteries) 50 / 60 Hz Batteries) (All Models) Power Indicator Integrated Stand XLR4 16.7VDC / 4.5A 2 X Legs (battery) power output... - Page 8 Components and Connections Carry Handle Battery Release Latch Battery Mount (4 X Micro batteries or 2 x Regular sized batteries) LED Battery Charging Status Power Indicator XLR4 16.7VDC / 4.5A Integrated Stand (battery) power output 2 X Legs...
-
Page 9: Operation Features
The XLR4 output converts AC to DC power when charging or can be used to deliver battery power to devices that only have an XLR input. • Use the XLR4 output at the same time as charging (GM2 / VM2 Only). •... -
Page 10: Technical Specifications
5.67 in (144.04 mm) VM2: 4.53 in (114.96 mm) Width 4.53 in (114.96 mm) VM4: 5.10 in (129.48 mm) GM2: 2.30 lbs. (1.04 kg) VM2: 2.30 lbs. (1.04 kg) Weight GM4: 3.45 lbs. (1.57 kg) VM4: 3.45 lbs. (1.57 kg) -
Page 11: After Sales Support
After Sales Support At Vitec Production Solutions we take great pride in the quality of our products and we also recognize that your experience with our products will be even more positive and productive with strong, effective support to back them up. Vitec Production Solutions Service Centers are there to provide technical support for customers and partners, via telephone or email. -
Page 12: General Notices
This equipment has been approved by one or more agencies. All changes and/or modifications not expressly approved by Anton/Bauer could void the users’ warranty and authority to operate this equipment. There are no serviceable parts in this equipment. -
Page 13: Warranty
Shelton, Connecticut 06484. If you (the purchaser of the Product from above. Upon receipt of the Product and a record of your compliance with Anton/Bauer, or the person for whom the Product was purchased, if it the conditions of this warranty, Anton/Bauer will repair or replace the was a gift) have any questions regarding Product applications, Product Product and return it to you, or issue a credit, as applicable. - Page 14 Use of unauthorized equipment in conjunction with Anton/Bauer products constitutes misuse under our warranties and may limit or void those warranties. Anton/Bauer does not authorize, condone, recommend, or otherwise assume any liability or responsibility resulting from the use of any battery, charger, or accessory made by Anton/Bauer with any battery, charger or accessory not manufactured, produced or sold by Anton/Bauer.
- Page 15 Publication 7595-0481 V0.3...
