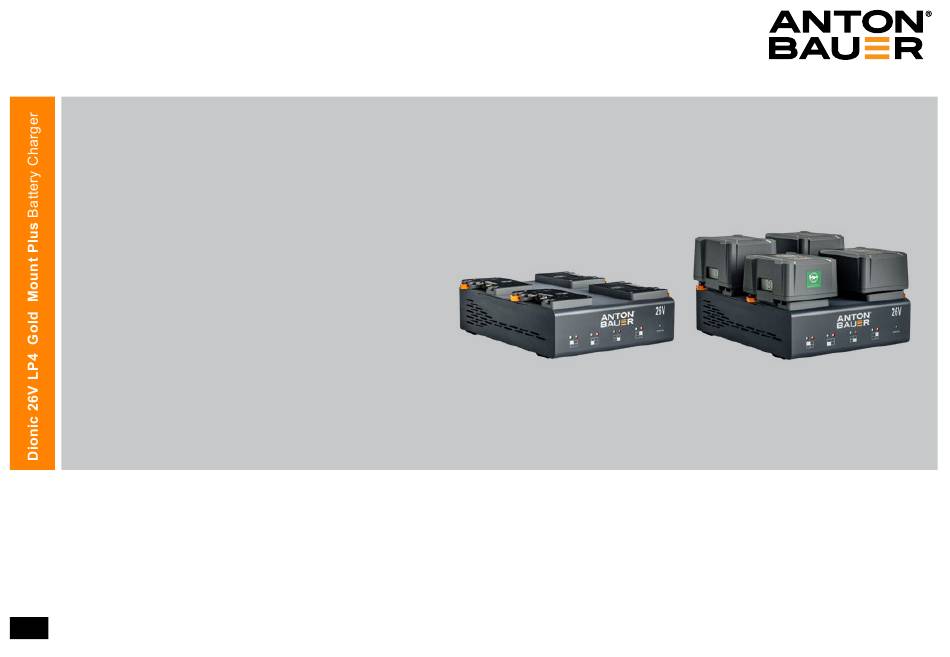

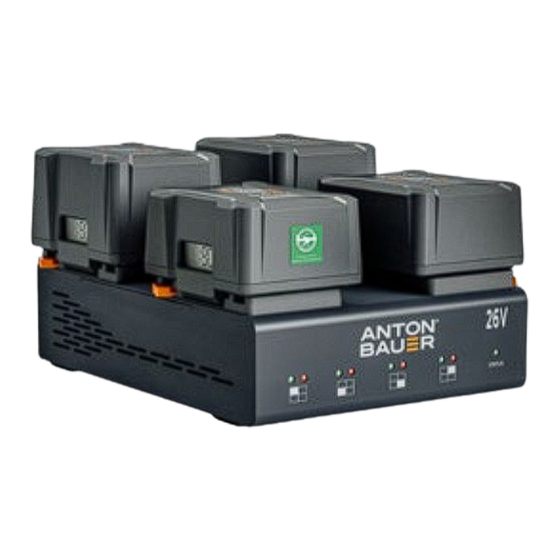

- Page 1 User Guide Mobile Power. Perfected. Dionic 26V LP4 Gold Mount Plus 26V / 14V Battery Charger Part No. 7595-0473 www.antonbauer.com...
- Page 2 Copyright © 2019 All rights reserved Original Instructions: English All rights reserved throughout the world. No part of this document may be stored in a retrieval system, transmitted, copied or reproduced in any way, including, but not limited to, photocopy, photograph, magnetic or other record without the prior agreement and permission in writing of the Vitec Group plc.
-
Page 3: Table Of Contents
Contents Safety ....................2 Warning Symbols Used in these Instructions ......... 2 Intended Use .................. 2 About this user guide ................ 4 Introduction ..................4 Important ..................4 Anton/Bauer Battery Compatibility ..........4 Third Party Gold Mount Compatibility ..........5 Components and Connections ............ -
Page 4: Safety
Safety Electrical Connection Important information on the safe installation and operation of this product. Read this information before operating the product. For WARNING! Risk of electric shock. Do not remove your personal safety, read these instructions. Do not operate the cover, no user servicable parts inside the product. - Page 5 Safety WARNING! Protect the product from water, moisture CAUTION! When powering the charger using a and dust. The presence of electricity near water can generator, the generator must produce a sine wave be dangerous. or modified sine wave output, otherwise, the charger may be damaged.
-
Page 6: About This User Guide
About this user guide Introduction The Anton/Bauer 26V LP4 Gold Mount Plus Chargers deliver all of the proven reliability of previous Anton/Bauer chargers in a portable power ® system addressing both Gold Mount Plus and Gold Mount configurations. The technology advancements of this charger deliver the features and ®... -
Page 7: Third Party Gold Mount Compatibility
About this user guide Third Party Gold Mount Compatibility We are continuing to test competitive Gold Mount batteries and will update the chart below as results are verified Anton/Bauer utilizes a charging protocol to maximize the life cycle of our batteries. This protocol is not always compatible with competitive batteries. -
Page 8: Components And Connections
Components and Connections Wi-Fi Capability AC Mains Power The 26V LP4 Gold Mount Plus Charger comes standard with an The AC Mains power connector is located on the rear of the charger. integrated Wi-Fi module to be utilized with a variety of features and functions released in upcoming software revisions. -
Page 9: Attaching A Battery To The Charger
Components and Connections Attaching a Battery to the Charger To Release the Battery To attach a battery to either the Gold Mount on the charger: Depress the latch and hold. Slide the battery onto the adaptor, ensuring the Gold Mount Slide the battery off the connector. -
Page 10: Operation
Operation Self-Test Stage One will deliver a high rate charge matched to the Upon applying AC mains power, the charger will initiate a brief capabilities of the battery (typically a one or two hour rate, self-test mode. Self-test mode is complete when the charger LED depending on battery type). -
Page 11: Led Indicators
Operation LED Indicators All 26V LP4 Gold Mount Plus Chargers come standard with LED indicators. The LED indicators are used to convey information about the current charge status of the battery. Description Alternating Red and Green: Evaluate Flashing Red: Stage One Flashing Green: Stage Two Solid Green: Stage Three (Liversaver Mode) The best battery to use is signified by a more intensley... -
Page 12: Technical Specifications
Technical Specifications Physical Data Nominal Battery Charge Times 26V LP4 Gold Mount Plus Charger Battery Approx. Charge Time Height Digital G90 2.5 Hrs. 3.60 inches (9.14 cm) Digital G150 3.5 Hrs. Digital G190 4.5 Hrs. Length Dionic HC 2.5 Hrs. 12.20 inches (30.99 cm) Dionic HCX 3.0 Hrs. -
Page 13: After Sales Support
After Sales Support At Vitec Production Solutions we take great pride in the quality of our products and we also recognize that your experience with our products will be even more positive and productive with strong, effective support to back them up. -
Page 14: General Notices
General Notices FCC Notice This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 15 Warranty This warranty for the product specified in this document (“Product”) packaging promptly, at your expense, to an Anton/Bauer Customer is given by Vitec Production Solutions, Inc. (“Anton/Bauer”), 14 Support Center or to the address above. Upon receipt of the Product Progress Drive, Shelton, Connecticut 06484.
-
Page 16: Warranty
Warranty Should any action of law or in equity be brought by any person under this Warranty, such action shall be brought only in the United States District Court for the District of Connecticut, or in any Superior Court in Fairfield County, Connecticut, USA. Some states do not allow limitations on how long a warranty lasts, so the time period limitation herein may not apply to you. - Page 20 Mobile Power. Perfected. Publication Part No. 7595-0473 www.antonbauer.com...
