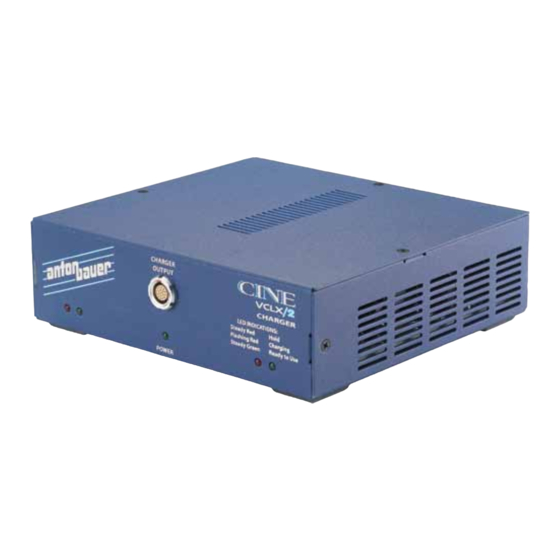

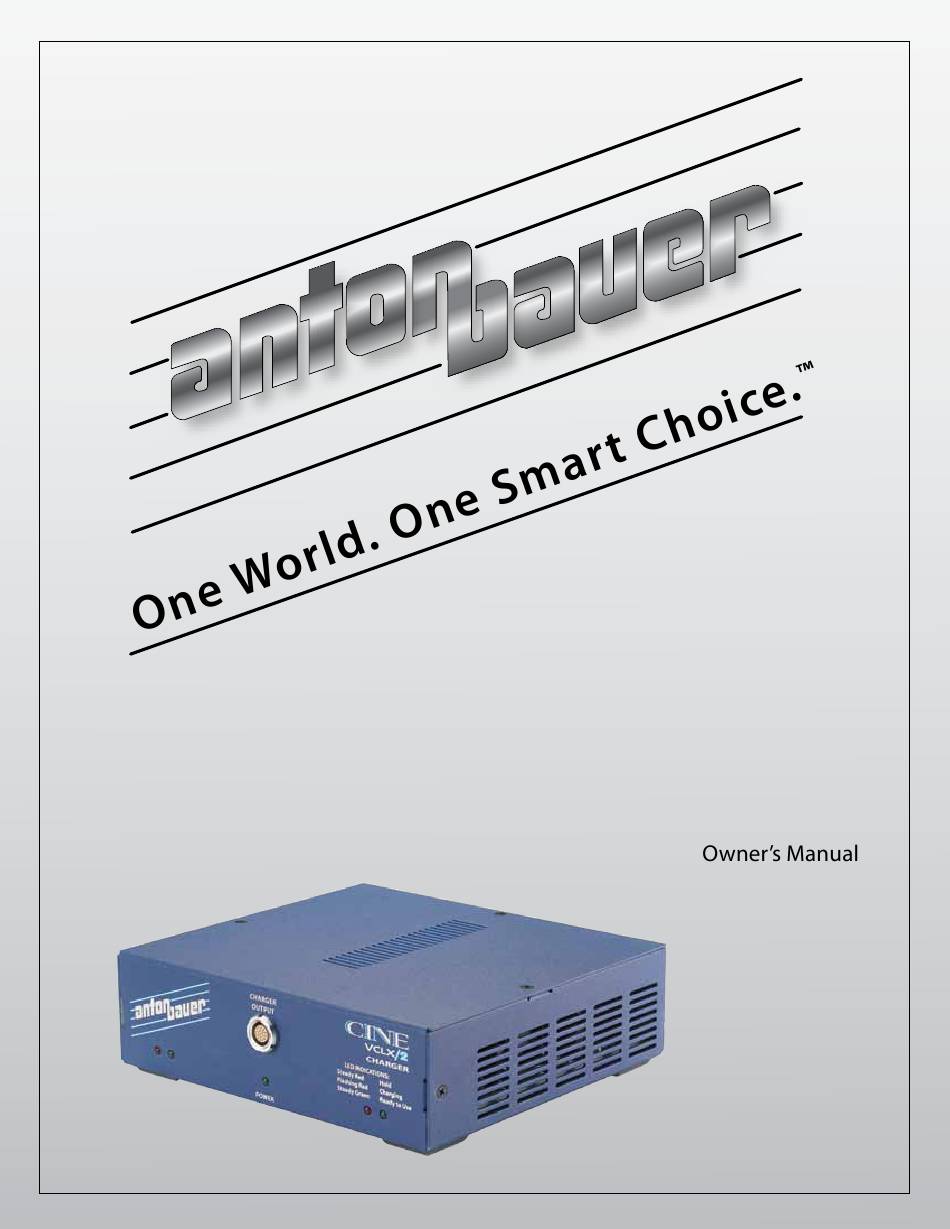

- Page 1 Approved Copy ® CINE VCLX/2 CHARGER Only for use with CINE VCLX/2 battery 7595-0339 Rev. B...
- Page 2 Approved Copy TABLE OF CONTENTS INTRODUCTION FEATURES SAFEGUARDS GROUNDING/EARTHING CHARGING APPLICATIONS THREE STAGE CHARGING METHODOLOGY LED INDICATIONS FCC NOTICE SPECIFICATIONS FUSE/TYPE REPLACEMENT WARRANTY...
- Page 3 Approved Copy INTRODUCTION GROUNDING/EARTHING The CINE VCLX/2 charger is a three (3) hour fast charger designed IMPORTANT WARNING: THIS APPARATUS MUST BE EARTHED. specially for the CINE VCLX/2 battery system. It incorporates all of the Logic Series® circuits that are employed in every Anton/Bauer charger.
- Page 4 Approved Copy LED INDICATIONS THREE STAGE CHARGING METHODOLOGY In general, the CINE VCLX/2 charger will deliver a three stage charge routine to each battery. The CINE VCLX/2 charger has two sets of LEDs. 1. STAGE ONE will deliver a high rate charge matched to the capabilities of The red and green charge status LED’s indicate the charging status...
- Page 5 SPECIFICATIONS Size 2.25” x 5.75” x 6.25” Weight 2.5lbs. (1.13kg) Input Voltage 100-240VAC 50/60 Hz Output Voltage 24 VDC 10 +/- 10% Rated Power 85 watts Fuse Rating 3 amps, 250V FUSE/TYPE REPLACEMENT The fuse of the CINE VCLX/2 charger is a PCB mounted device which should only be replaced by a qualified service technician.
- Page 6 14 Progress Drive, Shelton, Connecticut 06484. If you (the purchaser STANCES WILL ANTON/BAUER BE RESPONSIBLE FOR ANY SPE- of the Product from Anton/Bauer, or the person for whom the Product CIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES. was purchased, if it was a gift) have any questions regarding Product...
- Page 7 Approved Copy The following are trademarks of Anton/Bauer, Inc.: Anton/Bauer, Anton/Bauer logo and parallelogram design, Aspekt, Automatique, DataTap, DIONIC, Elipz, Egripz, Elightz, Essentialz, Gold Mount, HubZ, HyTRON, Impac, Interactive and design, LifeSaver, Logic Series, Logic Series Logo, Maxx man logo design, Nexus, PowerStrap, Proformer, Probe, ProPac, RealTime, Satellight, Snap-On, Stasis, Stasis Flex, Tandem, TrimPac, Ultrakit, Ultralight, “One World.
