en

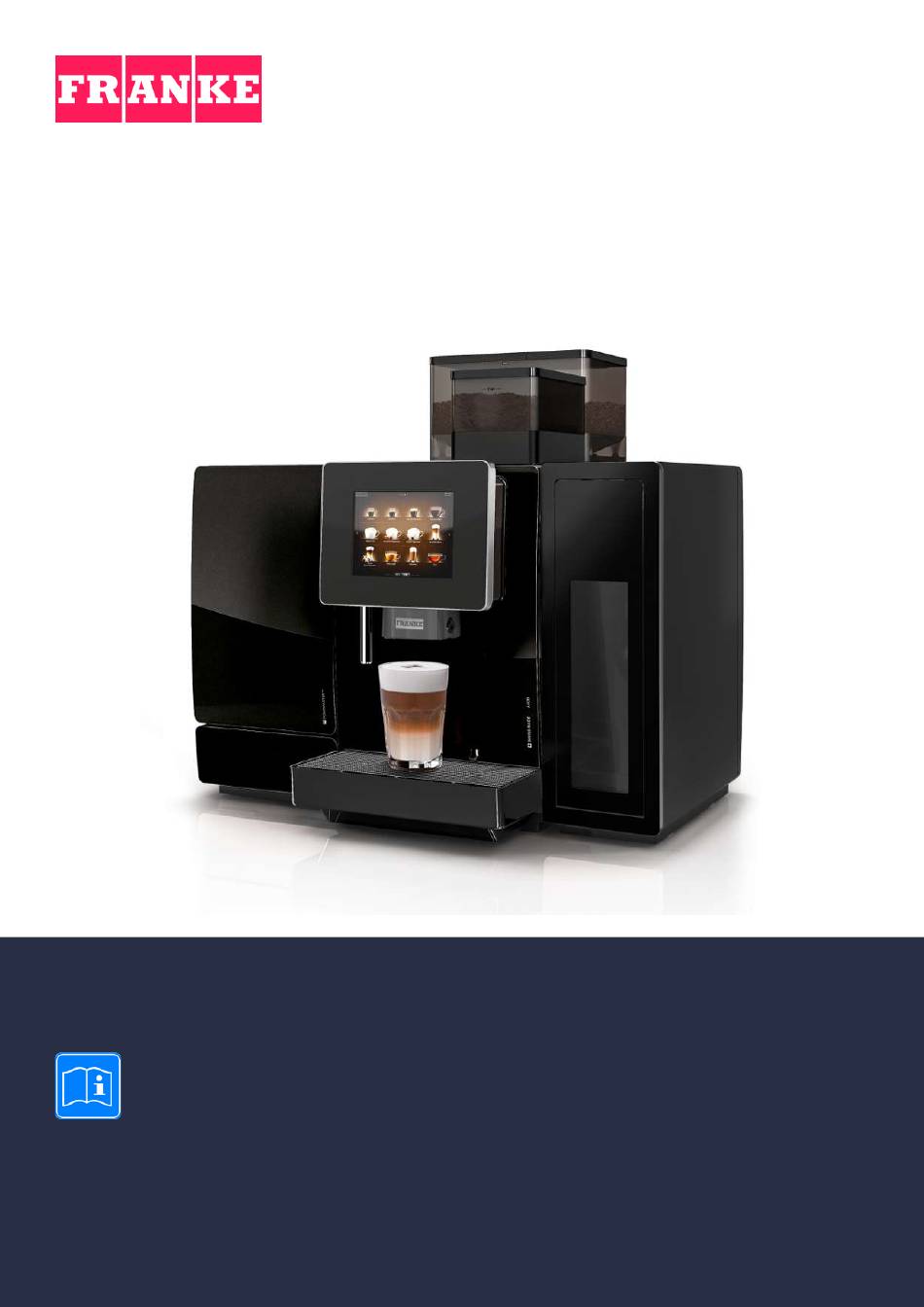

USER MANUAL
A600
FCS4043
Read the user manual before working on the machine.
Keep the manual with the machine and pass the manual on to the
next operator if the machine is sold or transferred to a third party.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A600 and is the answer not in the manual?

Questions and answers

Related Manuals for Franke A600

Summary of Contents for Franke A600

  • Page 1 USER MANUAL A600 FCS4043 Read the user manual before working on the machine. Keep the manual with the machine and pass the manual on to the next operator if the machine is sold or transferred to a third party.

  • Page 3: Table Of Contents

     26 5.2.4 Overview of operating modes  26 User interface  27 5.3.1 Cash Register operating mode  27 5.3.2 Quick Select operating mode  27 5.3.3 Operating modes in combination with Credit Mode  28 5.3.4 Franke Digital Services (option)  28 User manual A600...
  • Page 4 Starting the cleaning process  51 Starting cleaning via the Cleaning and Maintenance menu  51 9.4.1 Cleaning the aerator  52 Weekly cleaning  52 Cleaning the machine surface  52 9.6.1 Cleaning the bean hopper and powder hopper  53 9.6.2 User manual A600...
  • Page 5 Error messages  81 12.1 Color code for error messages  82 12.1.1 Troubleshooting the system  82 12.2 Tips for good coffee beverages  83 12.3 Help with problems concerning product quality  84 12.4 Decommissioning  85 Preparing for decommissioning  85 13.1 User manual A600...
  • Page 6 Transport and storage  86 13.6 Recommissioning after prolonged periods of storage or non-use  87 13.7 Disposal of parts  88 Technical data  89 Capacities in accordance with DIN 18873-2:2016-02  89 15.1 Electrical connection data  89 15.2 Index  91 User manual A600...

  • Page 7: For Your Safety

    1.1.1 Coffee machine – The A600 is a commercial machine for preparing beverages and is intended for use in food services, offices and other similar environments. – The A600 is designed to process whole coffee beans, ground coffee, powder that is suitable for auto- matic devices, and fresh milk.

  • Page 8: Prerequisites For Using The Coffee Machine

    – The A600 is intended for use by trained personnel or as a self-service machine. – Self-service machines must always be monitored to protect the users. – Each operator of the A600 must have read and understood the manual. This does not apply to its use in the self-service area.

  • Page 9: Safety Concerns When Using The Coffee Machine

    Keep hands away from the spouts and nozzles during this process. b) Do not place anything on the drip grid. c) IN CASE OF SCALDING: Immediately cool the affected area and, depending on the severity of the in- jury, consult a doctor. User manual A600...
  • Page 10 Inadequate cleaning can result in food residues accumulating in the machine and at the spouts, thereby contaminating products. a) Do not use the machine unless it has been cleaned according to the instructions. b) Clean the machine daily in accordance with the instructions. c) Inform operating personnel of the necessary cleaning measures. User manual A600...
  • Page 11 This may damage the coffee machine and/or the spout cleaning device. a) Only place the spout cleaning device on the drip grid when prompted to do so, and only once the dis- pensing spout has been fully lowered. User manual A600...

  • Page 12: Explanation Of Symbols

    When a symbol is illuminated on the dashboard, additional information and instructions can be displayed  81] Troubleshooting [ by tapping the symbol. If an error occurs, refer to the chapter for help. Symbol Designation Description Franke logo Call up the maintenance level Bean left/right Active grinder User manual A600...
  • Page 13 Drip tray is full or not installed correctly Door The door is open Water tank Water tank is empty or missing Payment Payment active First Shot Preheat system Service/configuration/ administration Brightness Set brightness Individualization Customize beverages and display User manual A600...

  • Page 14: Depiction Of Error Messages

    Data is being transferred 2.2.3 Depiction of error messages Highlighted products cannot be prepared. The illu- minated symbol on the dashboard takes you to the error message. Espresso Cappuccino Chococcino Caffè Crema To Go Steam Tea water User manual A600...
  • Page 15 If the entire system is affected by an error, the error message will appear automatically. Door open The door is open. Please close the door. Color code for error messages Temporary interruption System still fully functional System has limited functionality Some or all resources are locked User manual A600...

  • Page 16: Scope Of Delivery

    Franke Kaffeemaschinen AG SCOPE OF DELIVERY The scope of delivery may vary, depending on the configuration of the appliance. Additional accessories may be obtained directly from your retailer or from Franke Kaffeemaschinen AG in Aarburg, Switzerland. Item description Item number...
  • Page 17 (optional for internal water tank) Filter cartridge 560.0004.630 (optional for internal water tank) Water hardness test strip 560.0004.060 (optional for internal water tank) Drip grid extension 560.0484.609 Drip grid extension 560.0574.078 (option single-piece drip grid extension (USA)) User manual A600...

  • Page 18: Identification

    SU05 cooling unit The type plate for the SU05 cooling unit is located on the left inner wall. 4.1.3 Cooling unit SU12/UT12 The type plate for the cooling unit is located on the left-hand side in the cooling chamber. User manual A600...

  • Page 19: Flavor Station Fs

    CW (option) The type plate for the cup warmer is located in the interior on the rear panel. 4.1.7 AC200 (Option) The type plate of the AC200 is located on the left- hand side of the pullout. User manual A600...

  • Page 20: Type Code

    Base cooling unit (9 l), positioned directly below the coffee machine FS30 Flavor Station with 3 flavor pumps FSU30 Under-counter Flavor Station with 3 flavor pumps Cup warmer FoamMaster (cold and warm milk, cold and warm milk foam) EasyClean CleanMaster User manual A600...
  • Page 21 Franke Kaffeemaschinen AG Identification | 4 Type code Description MilkSystem Twin Modified cooling unit for the simultaneous use with two coffee machines Accounting system Coin changer Cashless Coin validator User manual A600...

  • Page 22: Description Of Machine

    DESCRIPTION OF MACHINE Coffee machine The A600 coffee machine is available with numerous options. To provide you with an overview of your machine, a sample configuration is illustrated here. Please note that your coffee machine may look differ- ent from the configuration shown here.
  • Page 23 – Adjustable feet, 100 mm – Touchpad as accessibility feature for wheelchair users – Tank kit (not in conjunction with Iced Coffee Module) – Franke Digital Services Iced Coffee Module – The Iced Coffee Module is located at the front right-hand side of the coffee machine.

  • Page 24: Coffee Machine Components

    5 | Description of machine Franke Kaffeemaschinen AG 5.1.3 Coffee machine components Powder hopper (option) Bean hopper Iced Coffee Module (option) Brewing module Grounds container Drip tray with drip grid Internal water tank (option) User manual A600...

  • Page 25: Add-On Units

    Temperature display On/off switch Cleaning agent cartridge (CleanMaster only) Milk container Cleaning container SU05 SU12 On/off switch for cooling unit Temperature display and temperature con- trol Switch for milk/cleaning mode On/off switch for heated cup tray (SU12) User manual A600...

  • Page 26: Flavor Station

    Overview of operating modes The suitable operating mode depends on the utilization of your coffee machine, your product range and the preferences of your customers. Your service technician will be happy to help you set the appropriate operating mode. User manual A600...

  • Page 27: User Interface

    Double Espresso 2 Espressos Caffè Crema To Go Steam Tea water Use the Franke logo to switch between the Scroll forwards or backwards maintenance level and product selection 5.3.2 Cash Register operating mode Cash Register is the operating mode for non-self-ser- vice utilization.

  • Page 28: Operating Modes In Combination With Credit Mode

    CHF 4.00 Franke Digital Services (option) Developed specially for the Franke coffee machine fleet, our digital services give you control and a clear overview of all activities and information about the coffee machines. Centrally controlled remote mainte- nance, such as software and configuration updates, means that on-site interventions are not required.

  • Page 29: Installation

    You must have completed these preparations before a service technician can install the coffee machine for you. The service technician will install your coffee machine and carry out the initial commissioning process. The technician will walk you through the basic functions. Dimensions All dimensions are specified in mm. Front/side view User manual A600...

  • Page 30: Feet

    Maintain the prescribed installation dimensions and clearances. b) Take care to ensure that the clearance spaces are not blocked. 6.2.1 Feet A600 is delivered with feet. – Feet 40 mm (standard) – Feet 7 mm (option) – Feet 70 mm (option) –...

  • Page 31: Determining The Water Hardness With A Measuring Strip

    The water hardness corresponds to the number of red-colored fields. 2. Dip the measuring strip into the water for 1 second. Hardness level Result shown on the measuring Water hardness strip 1 x red >5° dH/>6°e/>9°fH 2 x red >10° dH/>13°e/>18°fH User manual A600...

  • Page 32: Water Quality

    – Measured conductivity in μS/cm – Measured total hardness in dH GH – Constant = 30 [μS/cm]/[ dH GH] Calculated conductivity Risk of corrosion <200 μS/cm 200 – 500 μS/cm increased >500 μS/cm high Calculation example: – Measured conductivity 700 μS/cm User manual A600...

  • Page 33: Water Outlet

    The result of the calculation is 160 μS/cm and means that there is a low risk of corrosion. 6.3.4 Water outlet – Drain hose: D = 20 mm, L = 2000 mm – Connection to a lower-lying siphon User manual A600...

  • Page 34: Filling And Emptying

    To do this, use a dry cloth or a cloth moistened only with water. c) Do not use any cleaners, as these alter the taste of the coffee. 1. Lift off the bean hopper lid. 2. Fill coffee beans. User manual A600...

  • Page 35: Filling Powder

    2. Fill with powder suitable for automatic bev- erage dispensers. Filling the cooling unit CAUTION Germs in unpasteurized milk Germs in unpasteurized milk could pose a health hazard. a) Do not use any unpasteurized milk. b) Only use pasteurized or long-life milk. User manual A600...

  • Page 36: Su05 Cooling Unit

    3. Remove the milk container lid and suction hose and place them on a clean surface. 4. Fill the container with a maximum of 5 l of cooled milk. 5. Attach the milk container lid. 2. Switch on the cooling unit. User manual A600...

  • Page 37: Cooling Unit Su12/Ut12

    5. Fill the milk container with cooled milk. ð The current cooling chamber temperature is displayed. 6. Close the sliding cover. 3. Only pull out the milk container until the point where the sliding cover of the container lid is fully visible. User manual A600...

  • Page 38: Filling The Flavor Station

    2. Press the unlocking button and open the Fla- 5. Place the bottles in the Flavor Station. vor Station. 6. Pull the bottle holders down. 7. Push the hose connection on the hose up- 3. Switch on the Flavor Station. wards. User manual A600...

  • Page 39: Setting The Grind Coarseness

    ð Turn clockwise for a coarser grind. 4. Check the grind produced and adjust if nec- essary. ð +2: very coarse / 0: normal / -2: very fine 2. Remove the bean hopper by lifting it up- wards. User manual A600...

  • Page 40: Emptying The Bean Hopper

    NOTICE Impairment of function If the bean hopper and powder hopper are not locked correctly, the function of the coffee machine and the product quality may be impaired. a) Push the locking slide all the way in. User manual A600...

  • Page 41: Emptying The Powder Hopper

    NOTICE Impairment of function If the bean hopper and powder hopper are not locked correctly, the function of the coffee machine and the product quality may be impaired. a) Push the locking slide all the way in. User manual A600...

  • Page 42: Emptying The Grounds Container

    7.10 Empty the drip tray Clean the drip tray when a message appears on the operator panel asking you to do so. NOTICE Improper handling Liquid may leak out of the drip tray. a) Transport and empty the drip tray carefully. User manual A600...

  • Page 43: Emptying The Cooling Unit

    Only touch the suction hose, the inside of the milk container, and the milk container lid after sanitizing your hands, or when wearing single use gloves. e) Place the container lid with the suction hose on a clean surface only. User manual A600...

  • Page 44: Su05 Cooling Unit

    4. Clean the milk container, the parts that feed the milk into the system, and the cooling chamber. 7.11.2 Cooling unit SU12/UT12 NOTICE! This cooling unit is available in several versions and may therefore differ from the following illustrations depending on the configuration. User manual A600...

  • Page 45: Emptying The Flavor Station

    Emptying the Flavor Station 1. Clean the Flavor Station. See Start cleaning 2. NOTICE! After cleaning, do not insert the  51] hoses back into the bottles. Remove the bottles from the Flavor Station. 3. Close the Flavor Station. User manual A600...

  • Page 46: Preparing Beverages

    Have sufficient drinking vessels ready to use. b) You can continuously add new products to the waiting list during the preparation. c) You can select and clear products from the waiting list. 1. Place an appropriate drinking vessel under the dispensing spout. User manual A600...

  • Page 47: Preparing Beverages With Ground Coffee

    Only ground coffee may be used. Instant coffee made from dried coffee extract cannot be used. 1. Place an appropriate drinking vessel under the dispensing spout. Espresso Double Espresso Caffè Crema To Go Ristretto ð The Decaffeinated coffee selection button il- luminates. 2. Press the Decaffeinated coffee selection but- ton. User manual A600...

  • Page 48: Preparing Hot Water

    1. Place an appropriate drinking vessel under 3. Select the cup size. the hot water spout. ð Hot water is dispensed until the cycle is complete. Espresso Double Espresso 2 Espressos Caffè Crema To Go Steam Tea water 2. Select Tea water User manual A600...

  • Page 49: Steam Dispenser (Autosteam/Autosteam Pro)

    1. Place an appropriate drinking vessel under 3. Tap on the touchpad once. the dispensing spout. ð The coffee machine performs the chosen action. 2. Use the touchpad to move the cursor to the required place on the screen. User manual A600...

  • Page 50: Cleaning

    4. Rinse the components thoroughly. 2. Soak the components in hot water with a 5. Dry the components. mild cleaner. Additional areas to be cleaned by hand – Inner side of the door and door gasket on cooling unit User manual A600...

  • Page 51: Starting The Cleaning Process

    10:54 2020-03-02 My settings Individualization and data transfer Counter(s) Espresso Double Espresso 2 Espressos Cleaning and maintenance Caffè Crema To Go Steam Tea water 5. Select Cleaning and maintenance 2. Tap the Franke logo. User manual A600...

  • Page 52: Cleaning The Aerator

    Clean the machine immediately if you notice any soiling. 9.6.1 Cleaning the machine surface 1. Clean the surface of the machine with a 2. If necessary, use a mild cleaner. NOTICE! Do damp cloth. not use abrasive cleaners. User manual A600...

  • Page 53: Cleaning The Bean Hopper And Powder Hopper

    (if applicable). 3. Remove the bean hopper and powder hop- 8. Push the locking slide all the way in. per (if applicable). 9. Close the door. 4. Empty the bean hopper and powder hopper (if present). User manual A600...

  • Page 54: Cleaning The Screen

    Double Espresso 2 Espressos Counter(s) Cleaning and maintenance Caffè Crema To Go Steam Tea water 1. Tap the Franke logo. 4. Select Cleaning and maintenance Cleaning and maintenance Error/event log Clean the coffee machine Rinse the coffee machine Wipe protection  57]...

  • Page 55: Rinsing The Coffee Machine

    The machine automatically rinses after certain time intervals as well as when it is switched on or off. Espresso Double Espresso 2 Espressos Caffè Crema To Go Steam Tea water 1. Tap the Franke logo.  57] PIN codes [ 2. Enter the PIN. 3. Press User manual A600...
  • Page 56 Individualization and data transfer Cleaning the coffee machine Counter(s) Rinsing the coffee machine Cleaning and maintenance Filter water quantity Wipe protection 4. Select Cleaning and maintenance Rinse coffee machine 5. Tap and confirm. ð The coffee machine is rinsed. User manual A600...

  • Page 57: Configuration

    Calling up the maintenance level Espresso Double Espresso 2 Espressos Caffè Crema To Go Steam Tea water 1. Tap the Franke logo.  57] PIN codes [ 2. Enter the PIN. 3. Press 10.2 PIN codes Default PIN codes are assigned at the factory:...

  • Page 58: Input Methods

    My settings Individualization and data transfer Counter(s) Cleaning and maintenance 10.5.1 Menu 0 Commissioning Menu item 0.10 System information Here you will find information regarding the hardware and software versions of the machine and the con- figuration. User manual A600...

  • Page 59: Menu 1 Set Machine

    : All pre-selected products are dispensed without additional button input. – No – : Each product must be triggered with the start button. – Default: Pause between products 1–10 seconds – Appears if automatic mode is activated – Increment: User manual A600...
  • Page 60 – No allocation of the selection buttons – Default: Custom images – Yes – Activate customized images – No – For Self-service usage scenario, Quick Select oper- ating mode – Default: User manual A600...

  • Page 61: Usage Scenario

    – Selection buttons on left-hand side: Select bev- erage size – Selection buttons on right-hand side: Select ad- ditional settings PLU No. PLU No. – Store PLU number for price calculation (if PLU numbers are used) – Default: 0 User manual A600...
  • Page 62 Tea water –20 to +10 % – The temperature in the hot water boiler is con- figured by the service technician – The set temperature can be adjusted by per- centages using the slide control User manual A600...
  • Page 63 Menu item 1.12 Accounting My settings 1 Set machine 1.12 Payment The service technician determines the accounting settings according to your wishes. Parameter Value range Remarks Accounting active – Yes – Switching accounting on/off – No – Default: User manual A600...
  • Page 64 – Pos. 2: Medium roast – Medium roast – Medium decaf- feinated roast – Own bean type 1–6 Insertion flap – None – Medium Espresso roast – Medium roast – Medium decaf- feinated roast – Own bean type 1–6 User manual A600...

  • Page 65: Menu 2 Customize Beverages

    The percentage specifications are always based on the preset value. For tips on setting the parameters, see the chapter Help with problems concerning product quality  84] All values configured in menu 2 are saved in the configuration and can be re-imported. User manual A600...
  • Page 66 10 | Configuration Franke Kaffeemaschinen AG Test General Coffee Brewing quantity Water quantity Grind quantity Grinder 1 Grinder 2 Save Back Select variant Select area Save settings Select product Confirm variant Prepare a test product Adjust parameters User manual A600...

  • Page 67: Menu 3 Date And Time

    Set the month Year 0–63 Set the year Hour 0–23/0–11 Set the hour Minute 0–59 Set the minute Time zone Time zone selection list – Select the time zone from the list – Default: UTC+0100 (Europe) Zurich User manual A600...
  • Page 68 Switch timer on or off – No Hour 0–23/0–11 Select switch-off time (hour) Minute 0–59 Select switch-off time (minute) Monday, Tuesday, – Yes Activate or deactivate the timer for each day Wednesday, Thursday, – No Friday, Saturday, Sunday User manual A600...

  • Page 69: Menu 4 Nutritional Value Information

    Free text input Enter ingredients or allergens that are not included in the list Menu item 4.2 Flavor My settings 4 Nutritional value information 4.2 Flavor Menu item 4.3 Powder My settings 4 Nutritional value information 4.3 Powder User manual A600...

  • Page 70: Menu 6 Access Rights

    (owner, specialist, and operator) can be defined for accessing the maintenance level. Menu item PIN code (default values) 6.2 Owner 1111 6.3 Specialist 2222 6.4 Operator 7777 6.5 Cleaning staff 5555 6.6 Key (secured) products 8888 6.7 On/Off machine 9999 User manual A600...
  • Page 71 PIN set – Yes – : PIN is active – No – : PIN is not active Activate user profile – Yes – : User profile is active – No – : User profile is not active User manual A600...
  • Page 72 PIN set – Yes – : PIN is active – No – : PIN is not active Activate user profile – Yes – : User profile is active – No – : User profile is not active User manual A600...
  • Page 73 – Yes – : PIN is active – No – : PIN is not active Activate user profile – Yes – : user profile is active – No – : user profile is not active – Default: User manual A600...

  • Page 74: Individualization And Data Transfer

    Overview This menu provides you with the following options: – Use existing Franke media for screen savers or as advertising media – Upload and view your own media objects on the machine – Use your own media for screen savers or as advertising media –...

  • Page 75: Manage Digital Signage Via Usb Stick

    22. Tap the Download and install button. 10. Make the desired settings. ð The coffee machine adopts the new set- tings. 11.5 Configure application Changes made will only take effect after the Save button is tapped. User manual A600...

  • Page 76: Language Settings

    – No Display brightness 15-100 % Audible signal for beverage – Yes preparation – No Audible signal for error mes- – Yes sages – No 11.5.3 Display [Operating mode] Depending on the operating mode, different display parameters are available. User manual A600...

  • Page 77: Nutritional Value Settings

    Allow wrong spout – Yes Always set to . This parameter currently has no function. – No 11.5.7 Cup monitoring The parameters of the cup monitoring do not appear if the coffee machine has a camera-based (optical) cup recognition. User manual A600...

  • Page 78: Edge Lighting

    – No The use case is the same as for Remote Control, but instead of the Franke web app, the app from a third- party manufacturer is used. Allow Remote Control – Yes With Remote Control, the coffee machine refers to a QR code that leads to Franke's web app.

  • Page 79: Loading/Backing Up Data

    11.6.2 Load data Desired action Menu item Information/instruction Import configuration and 3.2 Load backup – Load backed up data (configuration, Franke me- media dia, your own media) – Eject USB stick automatically 11.6.3 Back up XML data Desired action Menu item...
  • Page 80 Provisioning Deployment Service menu dashboard. Individualization and data transfer 1. Tap the Franke logo. 2. Enter the PIN. Cleaning and maintenance 3. Press ð In addition to the Individualization and data transfer...

  • Page 81: Troubleshooting

    Wait a minute and then switch it back on again. c) Check the power supply if the machine fails to start. d) Contact your service technician if the machine cannot be started or if you are unable to rectify the er- ror. User manual A600...

  • Page 82: Color Code For Error Messages

    Milk is not flowing cor- The milk spout was not installed Start coffee machine cleaning, and install rectly out of the milk correctly when it was last cleaned the milk spout as per the instructions on spout the touch screen. User manual A600...

  • Page 83: Tips For Good Coffee Beverages

    Seal any open coffee bean packs in an airtight manner. c) Do not store coffee beans in a refrigerator or freezer. d) Only fill the coffee beans into the bean hopper that you will need for the next 3 hours. User manual A600...

  • Page 84: Help With Problems Concerning Product Quality

    Use more powder, use less water Powder clumping or moist Clean and dry powder system Taste of powder products Too sweet Use less powder, use more water Not sweet enough Use more powder, use less water Strange taste Clean powder system User manual A600...

  • Page 85: Decommissioning

    Back up the data if the machine is to be recommissioned later or if the machine is to be replaced by a ma- chine of the same type. This manual applies to coffee machines without Franke Digital Services. 1. In the service menu under Customization and ð...

  • Page 86: Short-Term Decommissioning (Up To 3 Weeks)

    If you plan to start using your machine again at a later date, it is essential that service measures are imple- mented. The coffee machine must be maintained, installed, and cleaned before preparing any beverages. a) Contact the Franke Service team for information regarding proper decommissioning and storage. b) Have your coffee machine drained by your service technician.

  • Page 87: Recommissioning After Prolonged Periods Of Storage Or Non-Use

    Deterioration in storage Parts may no longer function as they should if they have been stored or unused for periods in excess of 6 months. a) Contact your service technician for information regarding repairing and recommissioning your ma- chine. User manual A600...

  • Page 88: Disposal Of Parts

    The appliance complies with European Directive 2012/19/EU regarding Waste Electrical and Electronic Equipment (WEEE) and must not be disposed of with household waste. Dispose of electronic parts separately. Dispose of plastic parts in accordance with their marking. Two people are required for transporting the coffee machine. User manual A600...

  • Page 89: Technical Data

    15.2 Electrical connection data Voltage Main power connec- Power rating (max.) Fuse Frequency tion 200–220 V 2LPE 4500-5300 W 30 A 60 Hz 220 V 1LNPE 2400 W 16 A 50 Hz 220–240 V 1LNPE 2100-2300 W 10 A 50-60 Hz 220–240 V 1LNPE 2400-2800 W 16 A 50-60 Hz 220–240 V 1LNPE 4400-5500 W 30 A 50-60 Hz User manual A600...
  • Page 90 15 | Technical data Franke Kaffeemaschinen AG Voltage Main power connec- Power rating (max.) Fuse Frequency tion 220–240 V 2LPE  W  A  Hz 220–240 V 3LPE 5600-7900 W 30 A 50-60 Hz 380 V 3LNPE 6300 W 16 A 50-60 Hz 380–415 V 3LNPE 6300-7500 W 16 A 50-60 Hz User manual A600...

  • Page 91: Index

    Operating mode Determine water hardness  31 Cash Register  27 Dimension  29 Non-self-service mode  81 Disposal  88 Quick Select  27 Drip grid  43 Drip grid extension  17 Self-service  81 Drip tray  42 Operator panel  43 Disposal of fluid  88 User manual A600...
  • Page 92  12 Instructions  12 Software  12 Tips  12 Transport  88 Troubleshooting  83 Machine error  81 Type code  20, 21 Type plate  18 User manual  16 Wastewater tank (external)  89 Water quality  32 Water tank  89 Wipe protection  54 User manual A600...
  • Page 96 St Albans, Tel.: +1 615 462 4265 www.franke.com Hertfordshire, AL2 2DQ Fax: +1 615 462 4400 England www.franke.com Franke Coffee Systems GmbH Tel.: +44 1923 635700 Franke Strasse 1 Fax: +44 1923 635701 97947 Grünsfeld www.franke.com Deutschland Tel.: +49 9346 9278 0 coffee.franke.com...
