Whalen Ligero BBAVCL65LED-5 Manual

65'' tv stand
Hide thumbs

Advertisement

Table of Contents

If you have any questions regarding assembly or if parts are missing, DO NOT return this item to
the store where it was purchased. Please call our customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
65'' TV Stand
Stock # BBAVCL65LED-5
ADULT ASSEMBLY REQUIRED
www.whalenfurture.com
Or e-mail your request to parts@whalenfurniture.com
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2024-06-13
1-866-942-5362
Rev. 0001-A
LOT NUMBER:
DATE PURCHASED:
/
/

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ligero BBAVCL65LED-5 and is the answer not in the manual?

Questions and answers

Related Manuals for Whalen Ligero BBAVCL65LED-5

Summary of Contents for Whalen Ligero BBAVCL65LED-5

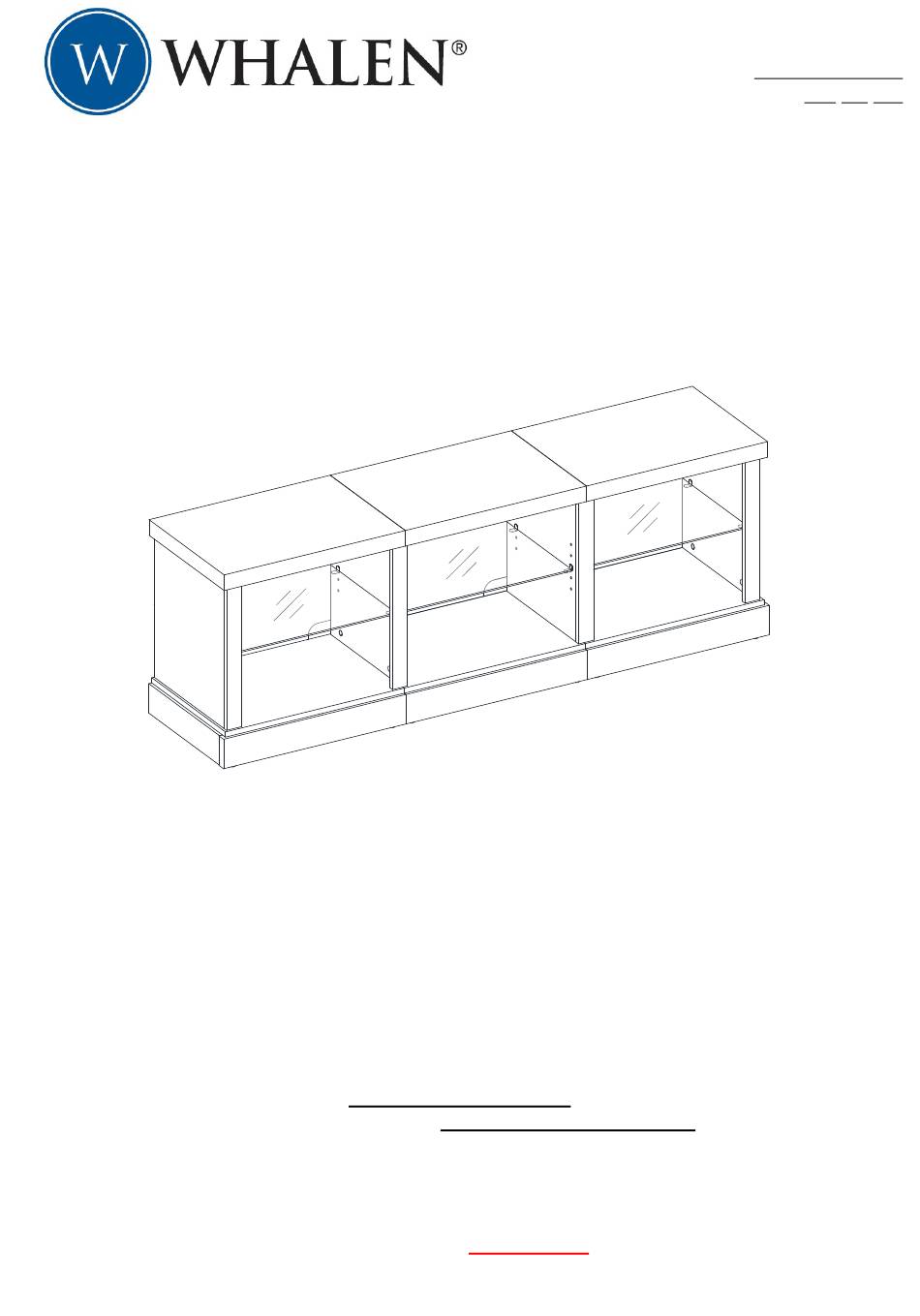

  • Page 1 LOT NUMBER: DATE PURCHASED: 65’’ TV Stand Stock # BBAVCL65LED-5 ADULT ASSEMBLY REQUIRED If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the store where it was purchased. Please call our customer service number and have your instructions and parts list ready to provide the model name, part name or factory number: 1-866-942-5362 Pacific Standard Time: 8:30 a.m.
  • Page 2 IMPORTANT Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non- abrasive surface. You will need the parts identified on page 6, 7 and 8 of this instruction manuals. NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH DOWELS.

  • Page 3: Installation

    Low Voltage Lighting Systems User Guide Please read this user guide before installing and using your Low Voltage Lighting Systems 1．THE COMPONENTS LIST Connect to power supply 1> Class 2 power supply----1 pc; MODE SPEED SPEED DEMO 2> RF control---1 pc; COLOR MODE BRIGHT...
  • Page 4 Operation 1.Using Remote Controller Please pull out the battery insulate tape before using. The RF wireless remote signal can pass through barrier, so it’s not necessary to aim at the main unit when operating. For proper receiving remote signal, please do not install the main unit in closed parts.

  • Page 5: Installing The Battery

    Installing the battery The battery is supplied with the remote control. The first thing to do with the remote control is to remove the plastic sheet insulated the battery. For replacement battery, use lithium based CR2025 battery. Please follow the sequence below to replace the battery. □...
  • Page 6 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. A- Middle Top Panel B- Middle Partition C- Middle Bottom Panel (Qty. 1) (Qty. 2) (Qty. 1) D- Middle Front Skirting E- Middle Rear Skirting F- Middle Left Bottom Stretcher...
  • Page 7 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. S- Side Panel T- Front Molding U- Side Stand Bottom Stretcher (Qty. 2) (Qty. 4) (Qty. 2) MODE S PE ED DEMO...
  • Page 8 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. Glue Touch-up Pen Tipping Restraint Hardware Kit (Qty.2) (Qty. 2) (Qty. 1) (Included in plastic bag)) Tools required: Phillips screwdriver, rubber mallet, stud finder, pencil, tape measure, power drill and 1/8”drill bit (not provided).
  • Page 9 Assembly Instructions ② x 12 NOTE: Please do not fully tighten all bolts/screws until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make it easier during assembly of unit. 1. Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a carpeted floor or the empty carton to avoid any scratch.
  • Page 10 Assembly Instructions ④ x 12 3. Glue twelve 30 mm Wood Dowels (4) into the inner holes on the Middle Bottom Stretchers (F and G) and Middle Front and Rear Skirtings (D and E). Make sure that you use a small amount of glue with both ends of all dowels.
  • Page 11 Assembly Instructions The wood dowels face in the same direction ① x 2 4. Using the wood dowels as a guide, align and attach the Middle Rear Skirting (E) between the Middle Bottom Stretchers (F and G) as shown. 5. Insert two Cam Locks (1) into the large holes in the Middle Rear Skirting (E) making sure that the arrow on the face of cam lock faces out and points towards the holes on the closest end.
  • Page 12 Assembly Instructions The outer edges are even ① x 2 6. Align and attach the Middle Front Skirting (D) to the Middle Bottom Stretchers (F and G) by engaging and tightening two Cam Locks (1) with a Phillips Screwdriver.
  • Page 13 Assembly Instructions 180° ① x 8 7. Using the installed wood dowels as a guide, align and attach the previous assembly to the Middle Bottom Panel (C) by engaging and tightening eight Cam Locks (1).
  • Page 14 Assembly Instructions 180° ② x 4 8. Turn the assembled unit completely around. 9. Securely screw four Cam Bolts (2) into the designated small holes on the top of Middle Bottom Panel (C) using a Phillips screwdriver.
  • Page 15 Assembly Instructions ② x 8 10. Securely screw eight Cam Bolts (2) into the designated small holes on the Middle Top Panel (A) and the Front Moldings (T) using a Phillips screwdriver.
  • Page 16 Assembly Instructions ④ x 12 11. Glue twelve 30 mm Wood Dowels (4) into the inner holes on the Middle Partitions (B).
  • Page 17 Assembly Instructions The outer edges are even ① x 4 12. Orient and attach one Front Molding (T) to the each of Middle Partition (B) by engaging and tightening two Cam Locks (1) using a Phillips screwdriver.
  • Page 18 Assembly Instructions The molding faces the middle front skirting ① x 4 13. Orient and attach one Middle Partition (B) to the Middle Bottom Panel (C) by engaging and tightening two Cam Locks (1). 14. Repeat the same process to attach the other Middle Partition (B) at the opposite end.
  • Page 19 Assembly Instructions ⑦ x 8 15. Align and attach four Connectors (12) to each Side Stand Bottom Stretcher (U) with one 12 mm Bolt (7) per connector.
  • Page 20 Assembly Instructions ② x 8 16. Securely screw eight Cam Bolts (2) into the designated small holes on the Left Bottom Panel (J), Left Front Skirting (K) and Left Side Skirting (M) using a Phillips screwdriver.
  • Page 21 Assembly Instructions ④ x 8 17. Glue eight 30 mm Wood Dowels (4) into the inner holes on the Left Front Skirting (K), Left Rear Skirting (L) and Left Side Skirting (M).
  • Page 22 Assembly Instructions ⑦ x 1 18. Align and attach the Left Rear Skirting (L) to the Side Stand Bottom Stretcher (U) by inserting one 12 mm Bolt (7) through the installed connector and securely screw into the Side Stand Bottom Stretcher (U).
  • Page 23 Assembly Instructions The wood dowels face in the same direction ① x 1 19. Align and attach the Left Side Skirting (M) to the Left Rear Skirting (L) by engaging and tightening one Cam Lock (1) with a Phillips screwdriver.
  • Page 24 Assembly Instructions ⑦ x 1 ① x 1 20. Align and attach the Left Front Skirting (K) to the Left Side Skirting (M) by engaging and tightening one Cam Bolt (1). 21. Fasten the Left Front Skirting (K) to the Side Stand Bottom Stretcher (U) by inserting one 12 mm Bolt (7) through the installed connector and securely screw into the Left Front Skirting (K).
  • Page 25 Assembly Instructions 180° ⑦ x 2 ① x 6 22. Using the installed wood dowels as a guide, align and attach the previous assembly to the Left Bottom Panel (J) by engaging and tightening six Cam Locks (1). 23. Fasten the Left Bottom Panel (J) to the Side Stand Bottom Stretcher (U) by inserting two 12 mm Bolts (7) through the installed connector and securely screw into the Left Bottom Panel (J).
  • Page 26 Assembly Instructions 180° ② x 2 24. Turn the assembled unit completely around. 25. Securely screw two Cam Bolts (2) into the designated small holes on the top of the Left Bottom Panel (J) using a Phillips screwdriver.
  • Page 27 Assembly Instructions ② x 4 26. Securely screw four Cam Bolts (2) into the designated small holes on the Left Top Panel (I) and Front Molding (T) using a Phillips screwdriver.
  • Page 28 Assembly Instructions ④ x 8 27. Glue eight 30 mm Wood Dowels (4) into the inner holes of the Left Top Panel (I) and Side Panel (S).
  • Page 29 Assembly Instructions The outer edges are even ① x 2 28. Orient and attach one Front Molding (T) to the Side Panel (S) by engaging and tightening two Cam Locks (1) using a Phillips screwdriver.
  • Page 30 Assembly Instructions The molding faces the left front skirting ① x 2 29. Orient and attach Side Panel (S) to the Left Bottom Panel (J) by engaging and tightening two Cam Locks (1) using a Phillips screwdriver.
  • Page 31 Assembly Instructions ③ x 2 30. Glue two 20 mm Wood Dowels (3) into the designed holes on the Side Stand Bottom Stretcher (U).
  • Page 32 Assembly Instructions ② x 8 31. Securely screw eight Cam Bolts (2) into the designated small holes on the Right Bottom Panel (O), Right Front Skirting (P) and Right Side Skirting (R) using a Phillips screwdriver.
  • Page 33 Assembly Instructions ④ x 8 32. Glue eight 30 mm Wood Dowels (4) into the inner holes on Right Front Skirting (P), Right Rear Skirting (Q) and Right Side Skirting (R).
  • Page 34 Assembly Instructions ⑦ x 1 33. Align and attach the Right Rear Skirting (Q) to the Side Stand Bottom Stretcher (U) by inserting one 12 mm Bolt (7) through the installed connector and securely screw into the Side Stand Bottom Stretcher (U).
  • Page 35 Assembly Instructions The wood dowels face in the same direction ① x 1 34. Align and attach the Right Side Skirting (R) to the Right Rear Skirting (Q) by engaging and tightening one Cam Lock (1) with a Phillips screwdriver.
  • Page 36 Assembly Instructions ⑦ x 1 ① x 1 35. Align and attach the Right Front Skirting (P) to the Right Side Skirting (R) by engaging and tightening one Cam Bolt (1). 36. Fasten the Right Front Skirting (P) to the Side Stand Bottom Stretcher (U) by inserting one 12 mm Bolt (7) through the installed connector and securely screw into the Right Front Skirting (P).
  • Page 37 Assembly Instructions 180° ⑦ x 2 ① x 6 37. Using the installed wood dowels as a guide, align and attach the previous assembly to the Right Bottom Panel (O) by engaging and tightening six Cam Locks (1). 38. Fasten the Right Bottom Panel (O) to the Side Stand Bottom Stretcher (U) by inserting two 12 mm Bolts (7) through the installed connector and securely screw into the Right Bottom Panel (O).
  • Page 38 Assembly Instructions 180° ② x 2 39. Turn the assembled unit completely around. 40. Securely screw two Cam Bolts (2) into the designated small holes on the top of the Right Bottom Panel (O) using a Phillips screwdriver.
  • Page 39 Assembly Instructions ② x 4 41. Securely screw four Cam Bolts (2) into the designated small holes on the Right Top Panel (N) and Front Molding (T) using a Phillips screwdriver.
  • Page 40 Assembly Instructions ④ x 8 42. Glue eight 30 mm Wood Dowels (4) into the inner holes of the Right Top Panel (N) and Side Panel (S).
  • Page 41 Assembly Instructions The outer edges are even ① x 2 43. Orient and attach one Front Molding (T) to the Side Panel (S) by engaging and tightening two Cam Locks (1) using a Phillips screwdriver.
  • Page 42 Assembly Instructions The molding faces the right front skirting ① x 2 44. Orient and attach Side Panel (S) to the Right Bottom Panel (O) by engaging and tightening two Cam Locks (1) using a Phillips screwdriver.
  • Page 43 Assembly Instructions ③ x 2 45. Glue two 20 mm Wood Dowels (3) into the designed holes on the Side Stand Bottom Stretcher (U).
  • Page 44 Assembly Instructions ⑧ x 8 46. Line up the assembled units on a level and protected surface and combine them together, using the inserted wood dowels as a guide. 47. Insert four 30 mm Bolts (8) through the mounting holes on the Middle Left Bottom Stretcher (F) and screw into the Side Stand Bottom Stretcher (U).
  • Page 45 Assembly Instructions ⑤ x 2 49. Using the pilot holes as a guide, fasten the (X) to the bottom of Middle Top Panel (A) with Buckles two 12mm Flat Head Screws (5) Tighten the screws with a Phillips Screwdriver.
  • Page 46 Assembly Instructions ⑩ x 2 50. Using the pilot holes as a guide, align and attach one Cord Clip (11) to the bottom of Middle Top Panels (A) with two 12mm Pan Head Screws (10). Tighten the screws with a Phillips Screwdriver.
  • Page 47 Assembly Instructions 51. Clip the LED lighting (X) into the two buckles and Secure the wire of Led Lighting in place with Cord Clip (11). NOTE: You can use the Cord Clips to help keep your cables and cords organized.
  • Page 48 Assembly Instructions ⑤ x 2 52. Using the pilot holes as a guide, fasten the (X) to the bottom of Left Top Panel (I) with two Buckles 12mm Flat Head Screws (5) Tighten the screws with a Phillips Screwdriver.
  • Page 49 Assembly Instructions ⑩ x6 53. Using the pilot holes as a guide, align and attach three Cord Clip (11) to the bottom of Left Top Panels (I) with two 12mm Pan Head Screws (10) in each. Tighten the screws with a Phillips Screwdriver.
  • Page 50 Assembly Instructions 54. Clip the LED lighting (X) into the two buckles.
  • Page 51 Assembly Instructions Connect to power supply 55. Secure the wire of Led Lighting in place with Cord Clips (11) as shown. 56. Feed the wire of LED Control Box through the thru holes of Left Rear Skirting (L) and the other side connect the plug of the previous assembled LED Lighting together properly.
  • Page 52 Assembly Instructions ⑤ x 2 57. Using the pilot holes as a guide, fasten the (X) to the bottom of Right Top Panel (N) with two Buckles 12mm Flat Head Screws (5) Tighten the screws with a Phillips Screwdriver.
  • Page 53 Assembly Instructions 58. Clip the LED lighting (X) into the two buckles.
  • Page 54 Assembly Instructions The grooves line up with each other ⑨ x 4 59. Line up the assembled units on a level and protected surface and combine them together, using the grooves line as a guide. 60. Insert two 60 mm Bolts (9) through the mounting holes on the subframe of Middle Top Panel (A) and screw into the Left Top Panel (I).
  • Page 55 Assembly Instructions Connect to power supply 62. Connect the plug of the previous assembled LED Lighting together properly. NOTE: You can use the Cord Clips to help keep your cables and cords organized.
  • Page 56 Assembly Instructions A/ I /N Connect to power supply ① x 8 63. Orient and attach the installed Top Panel (I, A and N) to both Middle Partitions (B) and Side Panels (S) by engaging eight Cam Locks (1). Turn the Cam Locks (1) with a Phillips Screwdriver until securely locked onto the cam bolts.
  • Page 57 Assembly Instructions 180° The adhesive tape faces outward. ⑥ x 34 64. Now, go back and tighten all Cam Locks and Screws. Make sure that all the parts are tight and there are no gaps between the pieces. This will help keep the unit square. 65.
  • Page 58 Assembly Instructions 90° 67. Connect the plug of the LED Control Box to the Power Supply (X) properly and insert the two- prong plug into an outlet to supply power.
  • Page 59 Assembly Instructions x 12 68. Ask for assistance to lift the assembled unit upright and position it near the final location. 69. Insert Twelve Shelf Supports (13) into the desired holes in the sides of each compartment. Make sure you place four shelf supports in the same level to level the shelf. Tilt and rest the Adjustable Glass Shelves (V) onto the Shelf Supports (13) making sure the end notches fit onto the Shelf supports properly.
  • Page 60 Assembly Instructions x 24 70. Plug the Cam Lock Covers (14) onto the visible Cams Locks to conceal the cams.
  • Page 61 Assembly Instructions Wall Wooden stud Long screw Wall Wall Metal bracket Short screw Connector Wall Floor leveler Steel cable Tools required (not included): Phillips screwdriver, stud finder, measure tape, pencil, power drill and 1/8” drill bit. 71. Ask for assistance to position the assembled unit at the desired location against a wall. If necessary, adjust the installed floor levelers to level the door and correct the tilting.
  • Page 62 Care and Maintenance  Use a soft, clean cloth that will not scratch the surface when dusting.  Use of furniture polishes is not necessary. Should you choose to use polishes, test first in an inconspicuous area.  Using solvents of any kind on your furniture may damage the finish. ...

  • Page 63: Quality Guarantee

    Should this product be defective in workmanship or materials or fail under normal use, we will repair or replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
