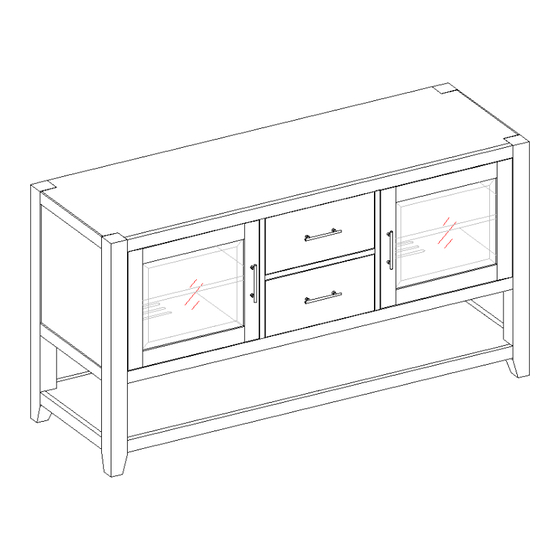

60" High Console
Model # BBHC60DBC
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if you are missing parts, do not return this item
to the Retailer Store. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE
READ AND KEEP FOR FUTURE REFERENCE.
Whalen Furniture Mfg., Inc
www.whalenfurniture.com
Or e-mail your request to parts@whalenfurniture.com
1-866-942-5362
Factory # 7-1564
LOT NUMBER:
DATE PURCHASED:
/
/
Page 1
Advertisement
Related Manuals for Whalen BBHC60DBC
Summary of Contents for Whalen BBHC60DBC
- Page 1 LOT NUMBER: DATE PURCHASED: 60” High Console Model # BBHC60DBC ADULT ASSEMBLY REQUIRED If you have any questions regarding assembly or if you are missing parts, do not return this item to the Retailer Store. Please call our toll-free customer service number and have your...
-
Page 2: Quality Guarantee
Should this product be defective in workmanship or materials or fail under normal use, we will repair or replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet your highest expectations. We guarantee that you will immediately see the value of our fine furniture. - Page 3 Model # BBHC60DBC Parts and Hardware List Please read completely through the instructions and verify that all parts listed are present before beginning assembly. A- Console (1) B- Adjustable Shelf (2) C- Cable Control (2) (Pre-attached) (1) – 3/4” Bolt (4+1 extra) (2) –...
-
Page 4: Drawer Installation
Model # BBHC60DBC DRAWER INSTALLATION If you need to remove the drawers with ball bearing slides from the unit, please follow the steps below to prevent any damage to the slides or the drawers. 1. If you need to remove the Drawer, please pull the drawer all the way out, then push the plastic release lever of the ball bearing slide up on one side and down on the other side, and then pull the drawer completely out. - Page 5 Model # BBHC60DBC Assembly Instructions 1. Unpack the unit and confirm that you have all the hardware and required parts listed. 2. Position the Console on your desired location against wall to place your TV on top when you finish assembly.
- Page 6 Model # BBHC60DBC Assembly Instructions 6. Attach 2 Cable Controls (C) onto the backside of Console (A) with the 3/4” Bolts (2) and tighten with Phillips Head Screwdriver. See detail #3. 7. The Cable Controls (C) enable you to shorten, separate and route both single and bundled cables.
-
Page 7: Tipping Restraint Hardware
Model # BBHC60DBC TIPPING RESTRAINT HARDWARE Note: We have included two Tipping Restraint Hardware bags for this unit. You must install this hardware to prevent accidents or injuries from falling unit. When properly installed, this restraint can provide protection against the unexpected tipping of the unit due to small tremors, bumps or climbing.
