Fingerprint Reader and
Keypad
SK-2612-SFSQ
Installation Manual
The ENFORCER Fingerprint Reader and Keypad is an advanced security solution that offers both
efficiency and convenience. This versatile device can function as a stand-alone controller or a
Wiegand reader.
 12VDC Operation
 Low current draw – 210mA max.
 Form C relay output – 2A@12VDC
 Adjustable output – 1~99 seconds or toggle
 Built-in tamper alarm and external alarm output
 Up to 1,000 users
 Door-propped-open / door-forced open alarm
 Outdoor rated – IP66 weatherproof
 Can serve as Wiegand reader, output – 26~37 bits
 2-Door interlock
 500 DPI Optical fingerprint reader with illuminated fingerprint window
 Fingerprint identification time – ≤1 second
 Fingerprint false acceptance rate – ≤0.01%
 Fingerprint false rejection rate – ≤0.1%

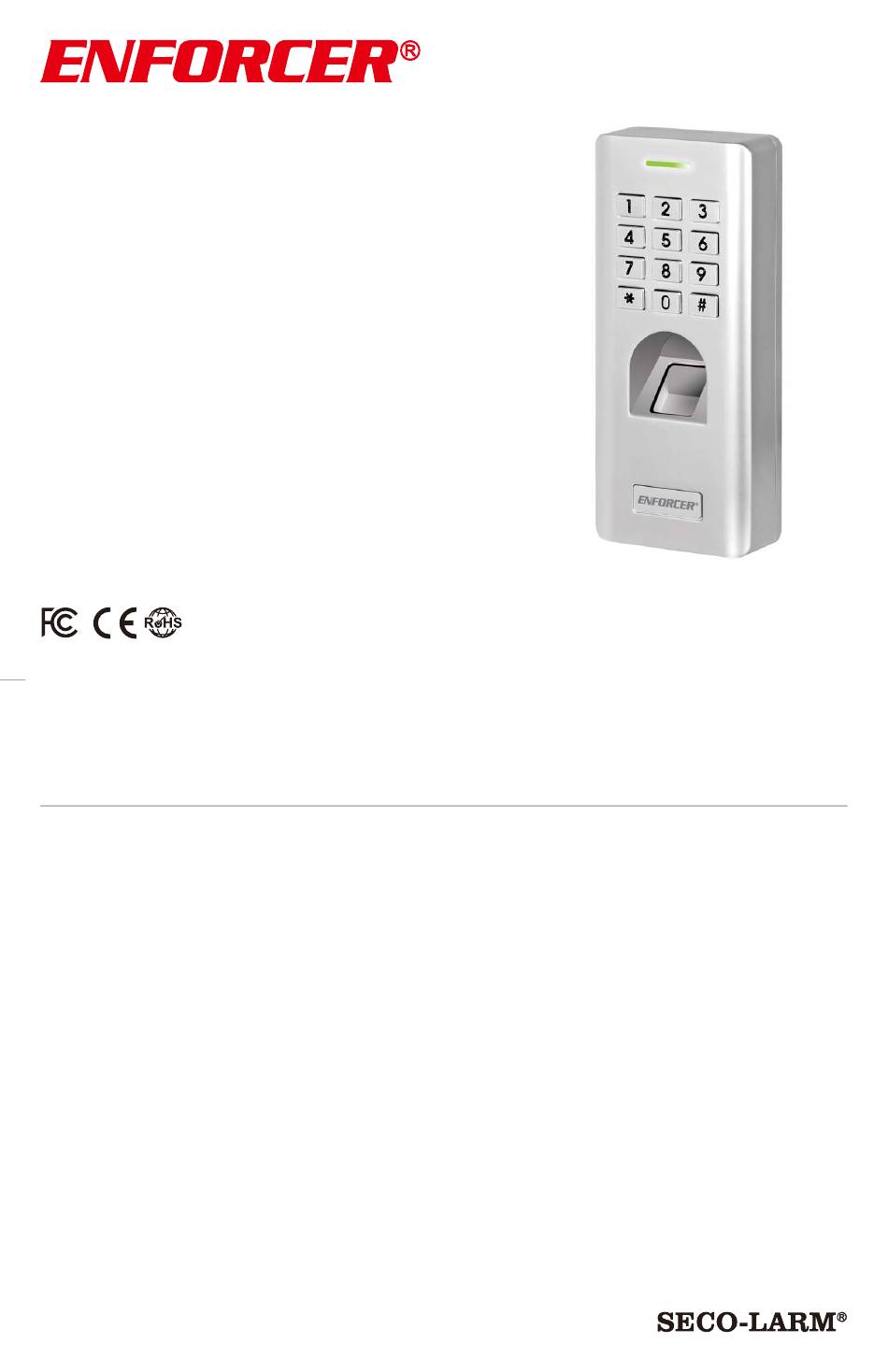

SK-2612-SFSQ shown

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENFORCER SK-2612-SFSQ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SECO-LARM ENFORCER SK-2612-SFSQ

Summary of Contents for SECO-LARM ENFORCER SK-2612-SFSQ

  • Page 1 Fingerprint Reader and Keypad SK-2612-SFSQ Installation Manual SK-2612-SFSQ shown The ENFORCER Fingerprint Reader and Keypad is an advanced security solution that offers both efficiency and convenience. This versatile device can function as a stand-alone controller or a Wiegand reader.  12VDC Operation ...

  • Page 2: Parts List

    N.O. Ground Door sensor N.C. Ground Enclosure material Zinc alloy Operating temperature -40°~140° F (-40°~60° C) Operating humidity 20~90% non-condensing Dimensions "x5 "x1" (58x137x26 mm) Weight 18.25-oz (516g) Overview " (850mm) " (137mm) " 1" (58mm) (26mm) SECO-LARM U.S.A., Inc.

  • Page 3: Mounting Diagram

    AC powered locks and for electromagnetic locks unless your (MOV, not supplied) lock has a diode/MOV built in (all SECO-LARM electromagnetic locks have built-in protection). Do not install both diode and MOV. Failure to use these as directed will void the warranty.

  • Page 4: Programming Tips

    4. Set the output time (skip this step if the default value of 5 seconds is acceptable): (1~99) NOTE: The delay time is 1~99 seconds 5. Exit programming mode: NOTE: One short beep indicates that the reader has exited programming mode. SECO-LARM U.S.A., Inc.

  • Page 5: Table Of Contents

    3. All wiring and programming should be done by a professional installer to reduce the risk of improper installation. 4. The user's operating guide for this reader is located on pg.16 of this manual. Be sure to store this manual in a safe place for future reference. SECO-LARM U.S.A., Inc.

  • Page 6: Led Indicators And Device Sounds

    AC-powered locks and for electromagnetic locks unless your lock has a diode/MOV built in (all SECO-LARM electromagnetic locks have built-in protection). Do not install both diode and MOV. Failure to use these as directed will void the warranty.

  • Page 7: Programming Functions And Defaults

     Do not disconnect the reader from power while in programming mode. Doing so may cause a memory error.  Note that, in programming instructions, programming entry actions or options other than specific keystrokes are enclosed within the parentheses, while factory defaults are enclosed within square brackets. SECO-LARM U.S.A., Inc.

  • Page 8: Programming The Master Code

     Where 2~8 is the number of users required in order to gain access.  In multi-user mode, the elapsed time between each user input must not exceed 5 seconds, otherwise the device will return to standby, and the process must start again. 3. Exit programming mode: SECO-LARM U.S.A., Inc.

  • Page 9: Adding Users

    Adding a Fingerprint + PIN User For Fingerprint + PIN Access or Fingerprint or PIN Access, to assign a user both a fingerprint and PIN, simply add a Fingerprint user and a PIN user, using the same user ID for both. SECO-LARM U.S.A., Inc.

  • Page 10: Adding A Master Add Fingerprint

    When scanning a fingerprint to add or delete, a short beep and a green flash of the LED will indicate that the fingerprint has been successfully read. If you hear multiple beeps and a flashing red LED, the fingerprint has been rejected or was not successfully read. SECO-LARM U.S.A., Inc.

  • Page 11: Delete Fingerprint User

     Scanning any valid user finger  Entering any valid user PIN Programming Tamper Alarm The tamper alarm will activate when the keypad is detached from the base housing. 1. Enter programming mode: (master code) OFF: (default) 2. Exit programming mode: SECO-LARM U.S.A., Inc.

  • Page 12: Programming Wrong Credential Lockout/Alarm

    To stop the notification, either close the door, enter the master code, scan a master fingerprint, or other valid user fingerprint/PIN. 1. Enter programming mode: (master code) Disable: [default] Enable: NOTE: The alarm duration follows the overall setting (see Programming the External Alarm Output, pg. 11). 2. Exit programming mode: SECO-LARM U.S.A., Inc.

  • Page 13: Setting Up A Two-Door Interlock System With Two Readers

    AC powered locks and for electromagnetic locks unless your (MOV, not supplied) lock has a diode/MOV built in (all SECO-LARM electromagnetic locks have built-in protection). Do not install both diode and MOV. Failure to use these as directed will void the warranty.

  • Page 14: Setting Up The Wiegand Reader Mode

    Wiegand controller. 2. Enter programming mode: (Master Code) 3. Enable Device ID: (01 ~ 99) 4. Add fingerprint via user ID: (user ID) (fingerprint) (repeat fingerprint) NOTE: User ID, any number 1~1000 5. Exit programming mode: SECO-LARM U.S.A., Inc.

  • Page 15: Wiegand Data Transmission Format

    5. If you need to program a new Master fingerprint, within 30 seconds scan the Master Add fingerprint twice, then the Master Delete fingerprint twice. The LED will change to red indicating that the reset has completed successfully. SECO-LARM U.S.A., Inc.

  • Page 16: Troubleshooting

    SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair or alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment is not operating properly as a result of causes other than defects in material and workmanship.
