Vandal-Resistant
Surface-Mount Access
Control Keypads
SK-1123-SDQ / SK-1123-SPQ
Installation Manual
Model
SK-1123-SDQ
SK-1123-SPQ
 12~24 VDC/VAC Auto-adjusting operation
 Up to 1,000 possible user codes (000~999) for output 1 and 100 (001~100) for output 2
 Up to 50 (01~50) possible visitor codes, for one-time or limited-time use (1~99 hours)
 Up to 50 (01~50) duress codes for output 1, 10 (01~10) for output 2
 Output 1: Form C relay, 1A@30VDC max. / output 2: Form C relay, 1A@30VDC max.
 Outputs 1 and 2 can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
 Tamper output N.C. Dry contact, 50mA@24VDC max.
 All features are programmed directly from the keypad No need for an external programmer
 EEPROM Memory protects programmed information in case of power loss
 Egress input lets users exit the premises without keying in the code
 Keypad illuminates when a button is pressed, programmable for FULL or AUTO in standby
 Data I/O terminal for split-series setup providing added security
 Expansion port for future optional features
 Door sensor input for anti-tailgating
 IP66 Weatherproof
SK-1123-SPQ includes all the above features plus:
 Built-in proximity reader
Outputs
Two
Two
 Interlocking input for connecting to a second keypad
 Surface-mount back box included
Backlit Keys
Yes
Yes

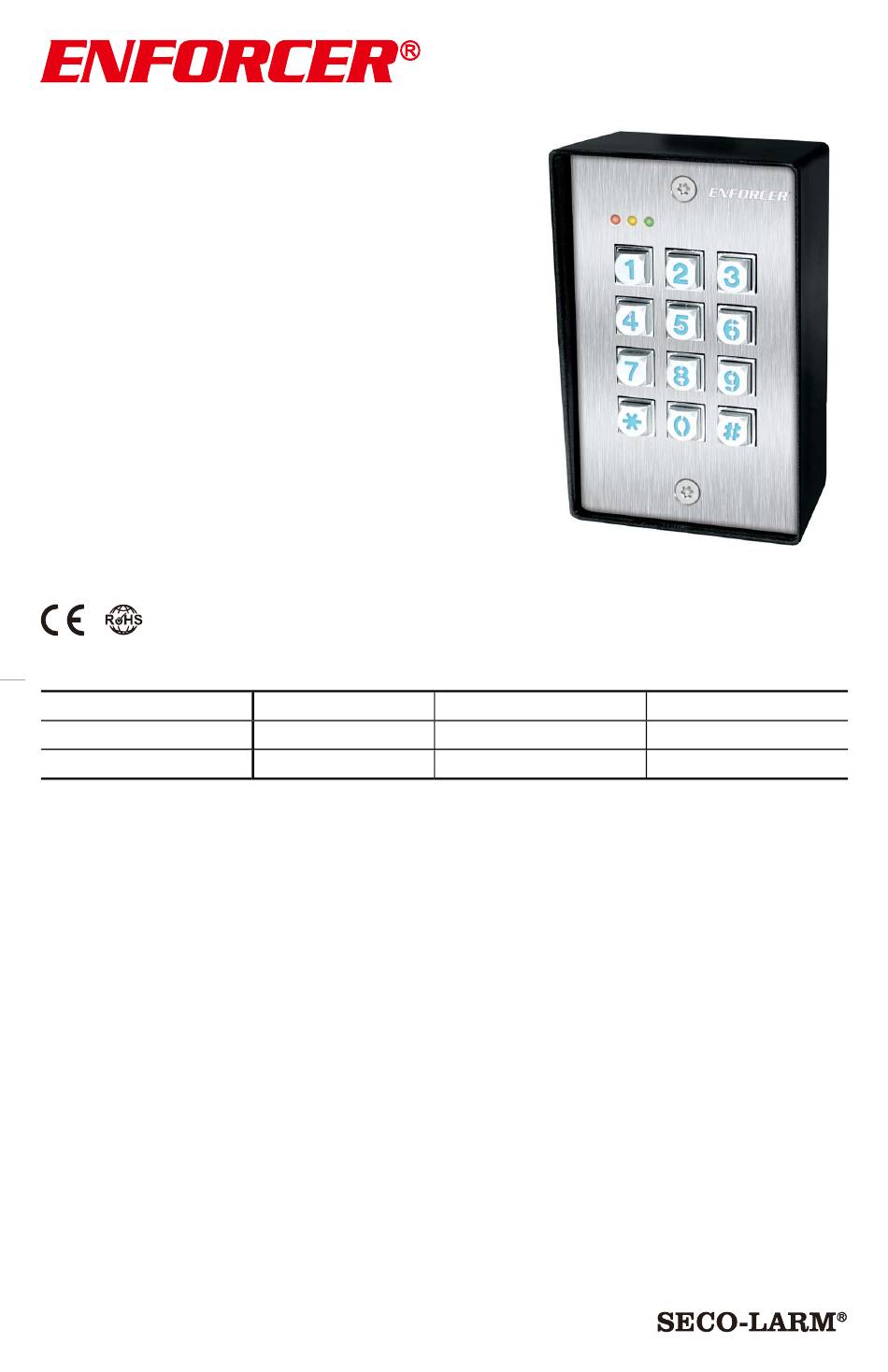

SK-1123-SDQ shown
Proximity Reader
No
Yes

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Enforcer SK-1123-SDQ and is the answer not in the manual?

Questions and answers

Related Manuals for SECO-LARM Enforcer SK-1123-SDQ

Summary of Contents for SECO-LARM Enforcer SK-1123-SDQ

  • Page 1 Vandal-Resistant Surface-Mount Access Control Keypads SK-1123-SDQ / SK-1123-SPQ Installation Manual SK-1123-SDQ shown Model Outputs Backlit Keys Proximity Reader SK-1123-SDQ SK-1123-SPQ  12~24 VDC/VAC Auto-adjusting operation  Up to 1,000 possible user codes (000~999) for output 1 and 100 (001~100) for output 2 ...

  • Page 2: Quick Installation Guide

    DC powered locks unless your lock has a diode built in. AC powered locks and electromagnetic locks require a varistor/MOV (05D390K or similar, not included) wired in the same location if the lock does not have one built in (all SECO-LARM electromagnetic locks have built-in protection).

  • Page 3: Quick Programming Guide

    5. Set output delay time (skip this step if the default value of 5 seconds is acceptable) NOTE: sets the output delay time for 3 seconds. 6. Exit programming mode Proximity reader is only available on the SK-1123-SPQ SECO-LARM U.S.A., Inc.

  • Page 4: Table Of Contents

    Programming a Common User Code ..... 16 Installer Notes ..........32 Programming User Codes and Proximity Warranty and Notices ........32 Cards ............17 Programming Visitor Codes ......19 Overview " (52mm) " " (125mm) (118mm) " " (46mm) (79mm) SECO-LARM U.S.A., Inc.

  • Page 5: Parts List

    Proximity reader sensing distance " (38mm) IP rating IP66 Weatherproof Operating humidity 5~95%, non-condensing Operating temperature -4°~158° F (-20°~70° C) Housing material Die-cast aluminum, powder paint coating Dimensions (including back box) "x3 "x2 " (125x79x52 mm) Weight 1-lb 2-oz (520g) SECO-LARM U.S.A., Inc.

  • Page 6: Led Indicators And Keypad Sounds

    Proximity card reader is only on the SK-1123-SPQ. ‡ Output relay activation sounds can be programmed for 1-sec long beep, 2 short beeps, or OFF (see pg. 27). § Amber LED flashing during standby mode can be programmed ON or OFF (see pg. 27). SECO-LARM U.S.A., Inc.

  • Page 7: Installation

    4. All wiring and programming should be done by a professional installer to reduce the risk of improper installation. 5. The user’s guide for this keypad is located on pg. 31 of this manual. 6. Be sure to store this manual in a safe place for future reference. SECO-LARM U.S.A., Inc.

  • Page 8: Wiring Diagram

    Backlit Jumper Settings Position Description Full Dim backlight during standby. Full backlight for 10 seconds after any button press. Auto No backlight during standby. Full backlight for 10 seconds after any button press. Off. Backlight function disabled. SECO-LARM U.S.A., Inc.

  • Page 9: Sample Applications

    DC powered locks unless your lock has a diode built in. AC powered locks and electromagnetic locks require a varistor/MOV (05D390K or similar, not included) wired in the same location if the lock does not have one built in (all SECO-LARM electromagnetic locks have built-in protection).
  • Page 10 DC powered locks unless your lock has a diode built in. AC powered locks and electromagnetic locks require a varistor/MOV (05D390K or similar, not included) wired in the same location if the lock does not have one built in (all SECO-LARM electromagnetic locks have built-in protection).

  • Page 11: Getting Ready To Program

    The master, super user, common user, visitor, duress, and user codes cannot be the same.  For optional Split-Series Controller installation and operation instructions, please refer to its  manual. Proximity cards are supported only on the SK-1123-SPQ SECO-LARM U.S.A., Inc.
  • Page 12 LED will return to flashing, indicating standby mode, upon exiting programming mode. NOTE: DO NOT DISCONNECT THE KEYPAD FROM POWER WHILE IN PROGRAMMING MODE. Disconnecting the keypad while in programming mode could cause a keypad memory error. SECO-LARM U.S.A., Inc.

  • Page 13: Programming Format And Default Programming Values

    The direct access to programming (DAP) code 2828 (see pg. 30) and the system restore code 9999 (see pg. 14) are fixed and cannot be changed, even via programming. Proximity cards and common user codes are supported only on the SK-1123-SPQ SECO-LARM U.S.A., Inc.

  • Page 14: System Restore

     The master, super user, common user, visitor, duress, and user codes cannot be the same.  If the keypad is set for auto code-entry mode, all codes will need to be the same number of digits as the master code (see Programming the User Code Entry Mode on pg. 26). SECO-LARM U.S.A., Inc.

  • Page 15: The Super User Code

    Using the Super User Code In these examples, assume the super user code is 2580. Activate or deactivate output 1 (timed or toggle, depending on programming). Activate or deactivate output 2 (timed or toggle, depending on programming). SECO-LARM U.S.A., Inc.

  • Page 16: Programming A Common User Code

    1. To program a common user code for output 1. The Common user code function is supported only on the SK-1123-SPQ SECO-LARM U.S.A., Inc.

  • Page 17: Programming User Codes And Proximity Cards

    The card and code must be used together to operate the output. Proximity cards are supported only on the SK-1123-SPQ SECO-LARM U.S.A., Inc.
  • Page 18 A common user code must already be programmed to the output (see pg. 16). 7. Program a user card for user ID #023 for output 2 for use with a unique user code*. READ CARD Proximity cards are supported only on the SK-1123-SPQ SECO-LARM U.S.A., Inc.

  • Page 19: Programming Visitor Codes

    1. Set the visitor code for ID #1 to 1268 and make it a one-time code. 2. Set the visitor code for ID #2 to 1378 and make it valid for three hours. 3. Delete the visitor code for ID #2 from memory. 4. Delete all currently programmed visitor codes. SECO-LARM U.S.A., Inc.

  • Page 20: Programming Duress Codes

     A duress code can be 4 to 8 digits long and must have the same length as the master code if the keypad is used in auto-entry mode (see Programming the User Code Entry Mode on pg. 26). Proximity cards are supported only on the SK-1123-SPQ SECO-LARM U.S.A., Inc.
  • Page 21 2. Deactivate the duress output using the user code. 3. Activate the duress output and activate output 1 using the duress code and a user card*. READ CARD Proximity cards are supported only on the SK-1123-SPQ SECO-LARM U.S.A., Inc.

  • Page 22: Programming The Output Mode And Timing

    1. In programming mode, set output 1 to toggle. 2. In programming mode, set output 2 to 60 seconds. 3. Reset output 1 timer. 4. Reset output 2 timer. Proximity cards are supported only on the SK-1123-SPQ SECO-LARM U.S.A., Inc.

  • Page 23: Programming The Real-Time Clock

     If the auto-disable time is programmed, losing power will cause the keypad to beep 3 times every 5 seconds. To deactivate this alert, either reset the real-time clock or clear the auto- disable time.  If the auto-disable time is not programmed, losing power will not cause the keypad to beep. SECO-LARM U.S.A., Inc.

  • Page 24: Programming The Auto-Disable Time

    In these examples, assume that the super user code is 2580. 1. In programming mode, set the auto-disable time from 12:00 PM to 1:00 PM. 2. In programming mode, set the auto-disable time from 6:30 PM to 7:30 AM the following day. SECO-LARM U.S.A., Inc.

  • Page 25: Programming The Wrong-Code System Lockup

    – No system lock-up will happen.  NOTES  The keypad’s red LED will remain lit to show that the keypad is locked.  The duress code will still function in this mode. Proximity cards are supported only on the SK-1123-SPQ SECO-LARM U.S.A., Inc.

  • Page 26: Programming The User Code Entry Mode

     To enable keypad-silent mode NOTE: This programming function only impacts the keypad sounds. It does not impact the output relay activation sounds (see Programming the Output Relay Activation Sounds on pg. 27). Proximity cards are supported only on the SK-1123-SPQ SECO-LARM U.S.A., Inc.

  • Page 27: Programming The Output Relay Activation Sounds

    Programming the Amber LED in Standby Mode The keypad’s amber LED typically flashes while the keypad is in standby mode but can be programmed off if needed. Enable amber LED flashing during standby mode (default). Disable amber LED flashing during standby mode. SECO-LARM U.S.A., Inc.

  • Page 28: Programming The Door-Forced-Open Warning/Duration

     The delay time provides time for a door to close normally before triggering the door-propped- open warning.  The door-propped-open warning beeping will stop when the open door is closed. Proximity cards are supported only on the SK-1123-SPQ SECO-LARM U.S.A., Inc.

  • Page 29: Programming The Egress Delay/Warning

    Output 1 operates immediately when the egress button is pressed. – Egress button delay duration  The delay duration can be set from 1 to 99 seconds. This tells the keypad how long to wait after the egress button is pressed before activating output 1. SECO-LARM U.S.A., Inc.

  • Page 30: Direct Access To Programming

     See Programming the Master Code on pg. 14 for how to program a new master code.  Direct access to programming (DAP) will not reset the keypad’s programming. It will only enter programming mode to program a new master code.  For a complete system reset, see System Restore on pg. 14. SECO-LARM U.S.A., Inc.

  • Page 31: Users' Guide To Operating The Keypad

    For more information on programming the Egress button, please see Programming the Egress Delay/Warning on pg. 29. Only applicable on the SK-1123-SPQ † The # key is not needed if the keypad is programmed for auto entry mode. See pg. 26. SECO-LARM U.S.A., Inc.

  • Page 32: Accessories

    This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair or alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment is not operating properly as a result of causes other than defects in material and workmanship.
