SECO-LARM ENFORCER SK-3133-PPQ Installation Manual

SECO-LARM ENFORCER SK-3133-PPQ Installation Manual

Heavy-duty outdoor access control keypad with proximity reader
Hide thumbs Also See for ENFORCER SK-3133-PPQ:
Table of Contents

Advertisement

Quick Links

Download this manual

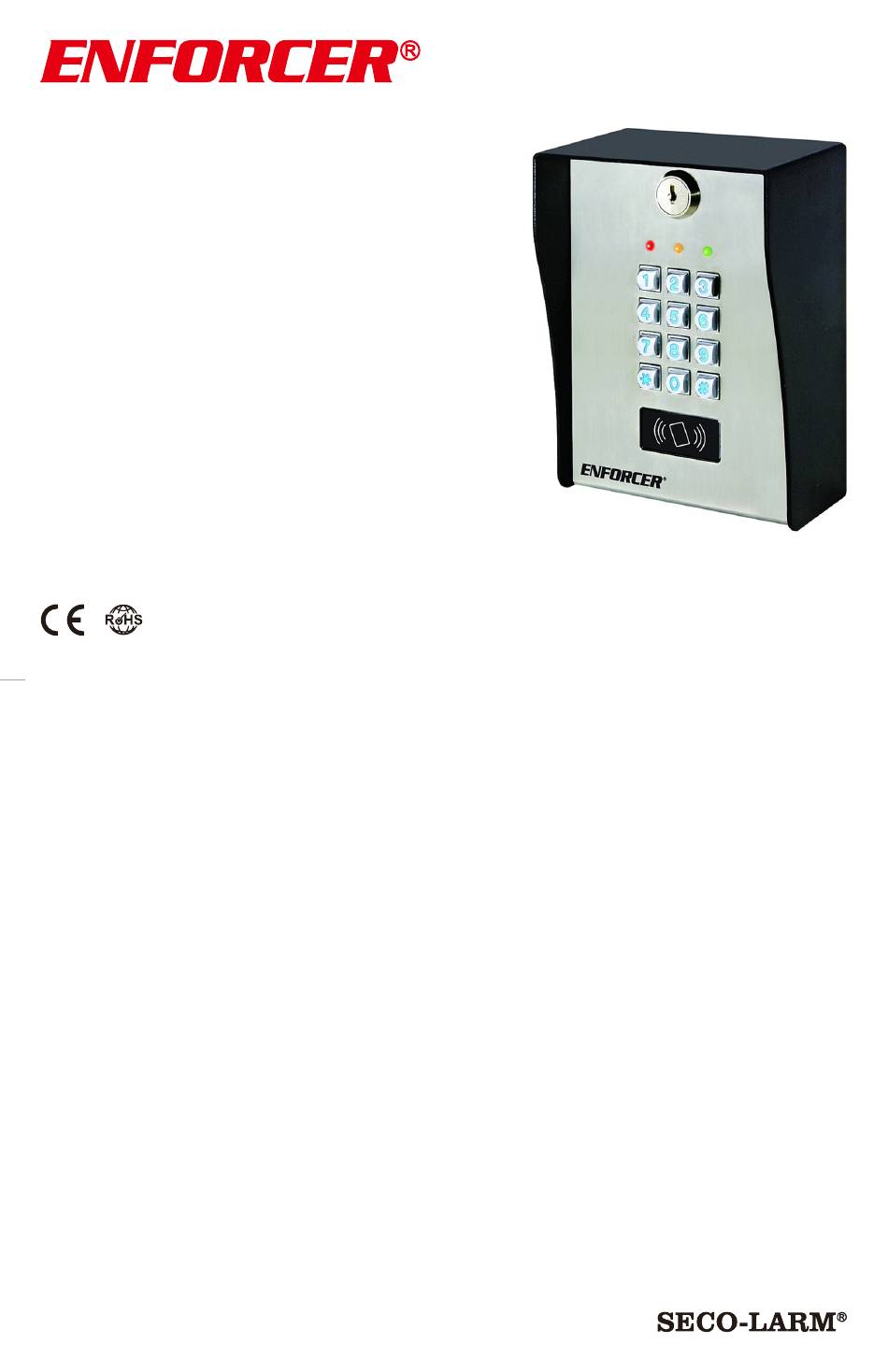

Heavy-Duty Outdoor
Access Control Keypad
with Proximity Reader
SK-3133-PPQ
Installation Manual
• Rugged construction – heavy-duty stainless steel faceplate with coated steel housing
• Built-in proximity reader
• 12~24 VAC/VDC Auto-adjusting operation
• Up to 1,000 possible user codes/cards for output 1 and 100 each for outputs 2 and 3
• Up to 50 possible visitor codes, for one-time or limited-time use (1~99 hours)
• Up to 50 duress codes for output 1 and 10 each for outputs 2 and 3
• Output 1: Form C relay, 5A@24VDC max. / output 2 and 3: Form C relay, 1A@24VDC max.
• Outputs 1, 2 and 3 can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
• Tamper output, 50mA@24VDC max.
• All features are programmed directly from the keypad, no need for an external programmer
• EEPROM Memory protects programmed information in case of power loss
• Egress input lets users exit the premises without keying in the code
• Door sensor input for anti-tailgating operation
• Interlocking input for connecting to a second keypad
• Keypad illuminates when a button is pressed, programmable for FULL or AUTO in standby
• Vandal resistant, suitable for wall, post, or gooseneck mounting
• IP66 Weatherproof

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENFORCER SK-3133-PPQ and is the answer not in the manual?

Questions and answers

Related Manuals for SECO-LARM ENFORCER SK-3133-PPQ

Summary of Contents for SECO-LARM ENFORCER SK-3133-PPQ

  • Page 1 Heavy-Duty Outdoor Access Control Keypad with Proximity Reader SK-3133-PPQ Installation Manual • Rugged construction – heavy-duty stainless steel faceplate with coated steel housing • Built-in proximity reader • 12~24 VAC/VDC Auto-adjusting operation • Up to 1,000 possible user codes/cards for output 1 and 100 each for outputs 2 and 3 •...

  • Page 2: Quick Installation Guide

    DC powered locks unless your lock has a diode built in. AC powered locks and electromagnetic locks require a varistor/MOV (05D390K or similar, not included) wired in the same location if the lock does not have one built in (all SECO-LARM electromagnetic locks have built-in protection).

  • Page 3: Quick Programming Guide

    ID #1. 5. Set output delay time (skip this step if the default value of 5 seconds is acceptable) NOTE: sets the output delay time for 3 seconds. 6. Exit programming mode SECO-LARM U.S.A., Inc.

  • Page 4: Table Of Contents

    Cards ............19 Programming Visitor Codes ......21 Overview Front Side Back Status " " lock LEDs (85mm) (64mm) ø1" (ø25mm) " " (180mm) (64mm) " (13mm) " " ø " ø " (133mm) (63mm) (ø5mm) (ø8mm) SECO-LARM U.S.A., Inc.

  • Page 5: Parts List

    IP66 Weatherproof Operating humidity 5~95%, non-condensing Operating temperature -4°~158° F (-20°~70° C) Faceplate " (1.5mm) Stainless steel Material Housing " (2mm) Anodized steel, powder paint Dimensions (including back box) "x7 "x3 " (133x180x85 mm) Weight 3-lb 12-oz (1.7kg) SECO-LARM U.S.A., Inc.

  • Page 6: Led Indicators And Keypad Sounds

    4. All wiring and programming should be done by a professional installer to reduce the risk of improper installation. 5. The user’s guide for this keypad is located on pg. 34 of this manual. 6. Be sure to store this manual in a safe place for future reference. SECO-LARM U.S.A., Inc.

  • Page 7: Installation

    These holes are used to mount the Finish assembly by replacing the inner back box, closing and keypad to a gooseneck stand. locking the keypad, and replacing the tamper screw. Fig. 2 Fig. 3 Key lock Inner back box Tamper screw SECO-LARM U.S.A., Inc.

  • Page 8: Wiring Diagram

    Switches to ground (–) when alarm occurs to trigger optional auxiliary alarm. Jumper Positions Backlit – Full K or A – Keypress K or A – Alarm Backlit – Auto FULL AUTO FULL AUTO KEY ALARM KEY ALARM K OR A K OR A BACK-LIT BACK-LIT SECO-LARM U.S.A., Inc.

  • Page 9: Sample Applications

    DC powered locks unless your lock has a diode built in. AC powered locks and electromagnetic locks require a varistor/MOV (05D390K or similar, not included) wired in the same location if the lock does not have one built in (all SECO-LARM electromagnetic locks have built-in protection).

  • Page 10: Sample Applications For Auxiliary Terminals

    DC powered locks unless your lock has a diode built in. AC powered locks and electromagnetic locks require a varistor/MOV (05D390K or similar, not included) wired in the same location if the lock does not have one built in (all SECO-LARM electromagnetic locks have built-in protection).
  • Page 11 +12~24 VAC/VDC Alarm Control Panel 1.5K Low power 24-Hour piezo buzzer N.O. Protection Zone NOTE: Only one connection option shown above is recommended. Make sure that the sink current does not exceed the maximum rating of 100mA. SECO-LARM U.S.A., Inc.

  • Page 12: Getting Ready To Program

    3. Card + code – For enhanced security, the user can be required to also enter a code after tapping a proximity card. The code may be unique to each card or to a group of users, or a common code can be used with all cards. SECO-LARM U.S.A., Inc.
  • Page 13 The amber LED will return to flashing, indicating standby mode, upon exiting programming mode. NOTE: DO NOT DISCONNECT THE KEYPAD FROM POWER WHILE IN PROGRAMMING MODE. Doing so could cause a keypad memory error. SECO-LARM U.S.A., Inc.

  • Page 14: Programming Format And Default Programming Values

    Door open warning/duration Alarm output is disabled NOTE The direct access to programming (DAP) code 2828 (see pg. 33) and the system restore code 9999 (see pg. 15) are fixed and cannot be changed, even via programming. SECO-LARM U.S.A., Inc.

  • Page 15: System Restore

    • The master, super user, common user, visitor, duress, and user codes cannot be the same. • If the keypad is set for auto code entry mode, all codes will need to be the same number of digits as the master code (see Programming User Code Entry Mode on pg. 28). SECO-LARM U.S.A., Inc.

  • Page 16: The Super User Code

    This function is useful for protecting the premises in case the super user code is lost or forgotten. To delete a super user code. 1. Make sure the keypad is in programming mode (see pg. 13). Enter SECO-LARM U.S.A., Inc.
  • Page 17 • For safety reasons, the egress button works regardless of whether output 1 is enabled or disabled via the super user code. • The super user code continues to operate output 1 even while that output is disabled. SECO-LARM U.S.A., Inc.

  • Page 18: Programming Common User Codes

    • Programming a new common user code will overwrite the previous common user code. • A common user code is not necessary if unique user codes are assigned. • The master, super user, common user, visitor, duress, and user codes cannot be the same. SECO-LARM U.S.A., Inc.

  • Page 19: Programming User Codes And Proximity Cards

    The common user code is automatically assigned as each user card is programmed into the keypad. – Delete a programmed user card or user code. • – Delete all programmed user cards or codes for the selected output. • SECO-LARM U.S.A., Inc.
  • Page 20 READ CARD NOTE: A common user code must already be programmed to the output (see pg. 18). Program a user card for user ID #023 for output 2 for use with a unique user code 2468. READ CARD SECO-LARM U.S.A., Inc.

  • Page 21: Programming Visitor Codes

    1. Set the visitor ID #1 code to 1268 and make it a one-time code. 2. Set the visitor ID #2 code to 1378 and make it valid for three hours. 3. Delete the visitor ID #2 code from memory. Delete all currently programmed visitor codes. SECO-LARM U.S.A., Inc.

  • Page 22: Programming Duress Codes

    (see Programming User Code Entry Mode on pg. 28). Examples 1. Set a duress code for ID #01 for output 1 to 2369. 2. Set a duress code for ID #01 for output 2 to 23980. SECO-LARM U.S.A., Inc.
  • Page 23 Subsequently entering the duress code will activate output 1 again but will not deactivate the duress output. 2. Deactivate the duress output using the user code. 3. Activate the duress output and activate output 1 using the duress code and a user card. READ CARD SECO-LARM U.S.A., Inc.

  • Page 24: Programming Output Mode And Duration

    In these examples, assume that the super user code is 2580. 1. In programming mode, set output 1 to toggle. 2. In programming mode, set output 2 to 60 seconds. 3. Reset output 1 timer. 4. Reset output 2 timer. 5. Reset output 3 timer. SECO-LARM U.S.A., Inc.

  • Page 25: Programming The Real-Time Clock

    • If the auto-disable time is programmed, losing power will cause the keypad to beep 3 times every 5 seconds. To deactivate this alert, either reset the real-time clock or clear the auto- disable time. • If the auto-disable time is not programmed, losing power will not cause the keypad to beep. SECO-LARM U.S.A., Inc.

  • Page 26: Programming Auto-Disable Time

    In these examples, assume that the super user code is 2580. 1. In programming mode, set the auto-disable time from 12:00 PM to 1:00 PM. 2. In programming mode, set the auto-disable time from 6:30 PM to 7:30 AM the following day. SECO-LARM U.S.A., Inc.

  • Page 27: Programming Wrong-Code System Lockup

    15 minutes or until the super user code is used as follows. SUPER USER CODE – No system lock-up will happen. • NOTES • The keypad’s red LED will remain lit to show that the keypad is locked. • The duress code will still function in this mode. SECO-LARM U.S.A., Inc.

  • Page 28: Programming User Code Entry Mode

    To Program • To enable keypad-audible mode (default) • To enable keypad-silent mode NOTE: This programming function only impacts the keypad sounds. It does not impact the output relay-activation sounds (see Programming Output Relay-Activation Sounds on pg. 29). SECO-LARM U.S.A., Inc.

  • Page 29: Programming Output Relay-Activation Sounds

    • The delay time provides time for a door to close normally before triggering the door-propped- open warning. • The door-propped-open warning beeping will stop when the open door is closed. • The alarm output cannot be programmed to operate with the door-propped-open feature. SECO-LARM U.S.A., Inc.

  • Page 30: Programming Door-Forced-Open Warning/Duration

    (see Programming Door-Forced-Open Warning/Duration, pg. 30) • The "K or A" jumper must be set to "A" for the alarm output to function correctly (see Jumper Settings, pg. 8) SECO-LARM U.S.A., Inc.

  • Page 31: Programming Egress Delay/Warning/Alarm

    NOTE: When the egress button is programmed to hold for a delay time before the door is released, it is important to post a sign near the egress button to notify users of the delay time. SECO-LARM U.S.A., Inc.
  • Page 32 For safety and to avoid confusion, when a delay or a press-and-hold delay is programmed, please post a notice near the egress button, such as "Press and hold the button for 5 seconds or until the door is unlocked." SECO-LARM U.S.A., Inc.

  • Page 33: Direct Access To Programming

    • See Programming the Master Code on pg. 15 for how to program a new master code. • Direct access to programming (DAP) will not reset the keypad’s programming. It will only enter programming mode to program a new master code. • For a complete system reset, see System Restore on pg. 15. SECO-LARM U.S.A., Inc.

  • Page 34: Users' Guide To Operating The Keypad

    NOTE: For more information on programming the Egress button, please see Programming Egress Delay/Warning on pg. 31. The # key is not needed if the keypad is programmed for auto entry mode. See pg. 28. SECO-LARM U.S.A., Inc.

  • Page 35: Installer Notes

    User's Name Card# Notes (1, 2, or3) Level* (or Duress Code) John Common Sample *Security levels: 1 = card only, 2 = code only, 3 = card + unique user code, 4 = card + common user code SECO-LARM U.S.A., Inc.

  • Page 36: Accessories

    SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair or alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment is not operating properly as a result of causes other than defects in material and workmanship.
