SECO-LARM SLI ENFORCER SK-B111-PQ Additional Information

Indoor Bluetooth
Keypad / Proximity Reader
What's in
1x SK-B111-PQ ENFORCER Indoor Bluetooth
the Box
2x Security screws
1x 11-Wire Wiring Harness

Specifications

Operating voltage
Standby
Current
draw
Active (max.)
Form C
Outputs
Tamper alarm 100mA@30VDC (Solid state N.C.)
Egress input
Door sensor input
Proximity reader
Faceplate material
Operating humidity
Operating temperature
Dimensions
Weight
Important NOTES
*
To protect the relay, you must install the enclosed diode—with the cathode (striped end
toward the positive side—for DC powered locks and install the varistor (MOV,
locks and for electromagnetic locks unless your lock has a diode/varistor (MOV) built in. Failure to use
these as directed will void the warranty.
†
Use the blue wire for fail-secure applications and the yellow wire for fail-safe applications. Use electrical
tape to insulate the end of any unused wire.
®
Single-Gang
11x Crimp connectors
9~25 VDC
50mA@12VDC, 28mA@24VDC
58mA@12VDC, 33mA@24VDC
2.0A@30VDC
N.O. Ground
N.C. Ground
EM 125kHz
Stainless steel, ABS/PC plastic
0-95%, non-condensing
-4°~122° F (-20°~50° C)
2 3 / "x4 1 / "x1 1 / " (70x114x31 mm)
4 2 4
3.75-oz (107g)
™
1x Diode
1x Quick Installation/Setup Guide

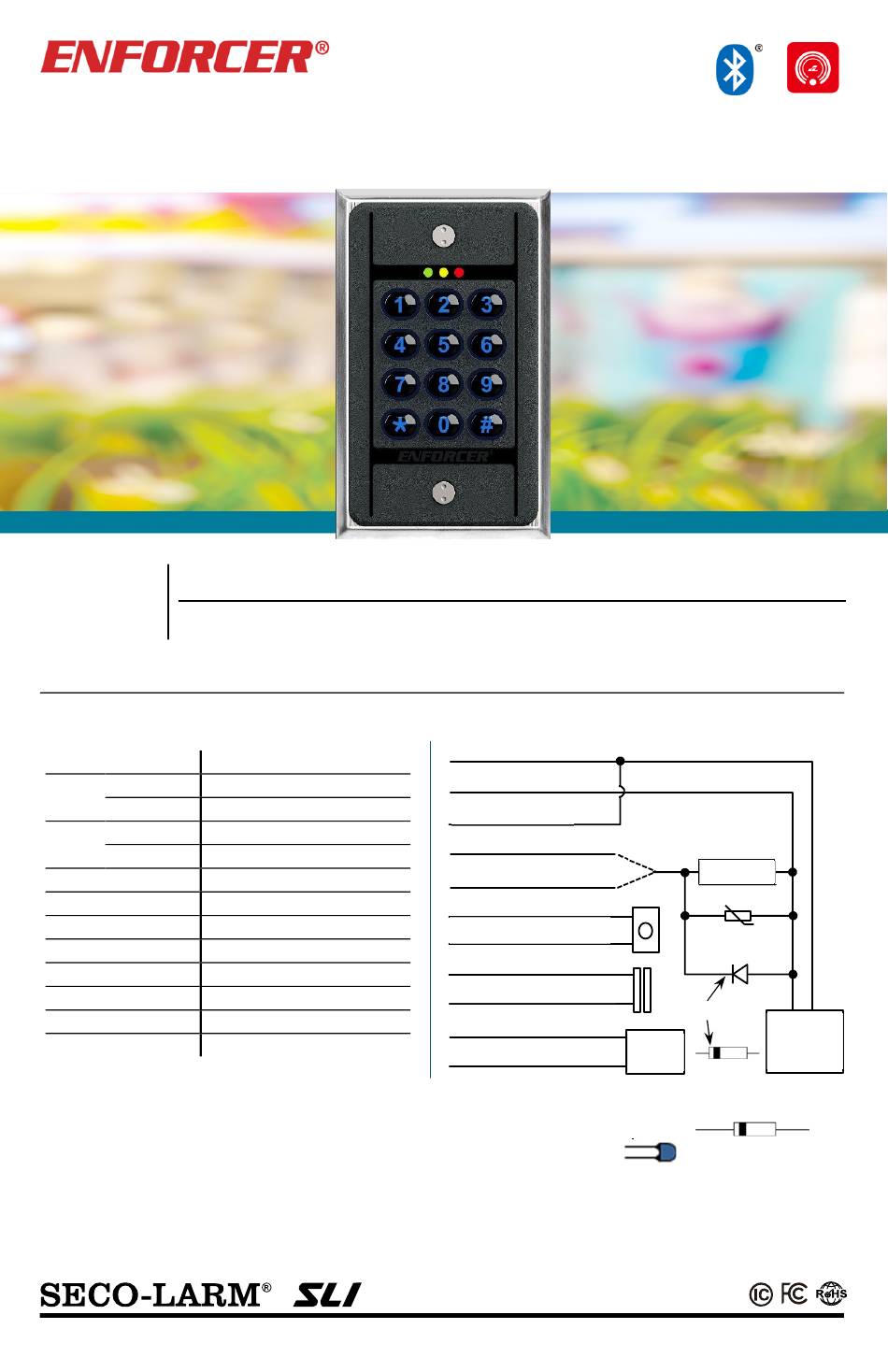

Sample Wiring Diagram

Red – power (+)
Black – power (–)
White – COM
Blue – N.O. fail-secure
Yellow – N.C. fail-safe
Green pair – to RTE button
Brown pair – to door sensor
Orange pair – to N.C. tamper
SK-B111-PQ
Additional Information
®
Keypad / Proximity Reader
1x Varistor 1x Security screw bit
1x Additional Information
†
or
+ Lock –
*
MOV
*
Diode
Cathode
Alarm
System
) for AC powered
™
SL Access
– +
Power
Supply
12/24 VDC
)
