SECO-LARM ENFORCER SK-4131-SPSQ Manual

SECO-LARM ENFORCER SK-4131-SPSQ Manual

Split series keypad with proximity card reader
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
• Split series installation for added
security
• Up to 1,000 possible user codes
and/or proximity cards

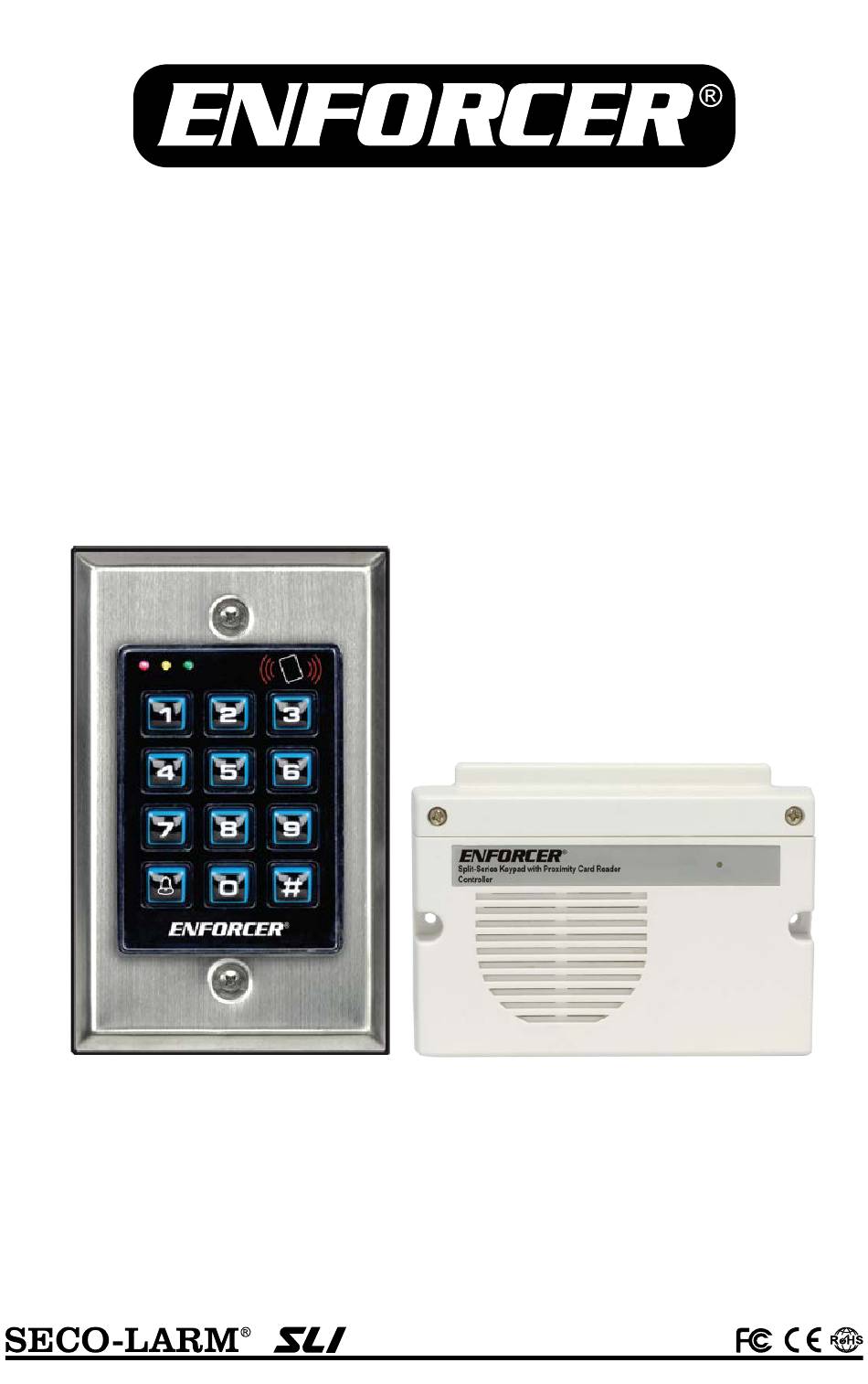

SK-4131-SPSQ
Split Series Keypad with
Proximity Card Reader
Manual
• 12~24 VDC Operation, auto-adjusting
• Tamper output
• Keypad illuminates when a button is
pressed

Advertisement

Table of Contents
loading

Related Manuals for SECO-LARM ENFORCER SK-4131-SPSQ

Summary of Contents for SECO-LARM ENFORCER SK-4131-SPSQ

  • Page 1 SK-4131-SPSQ Split Series Keypad with Proximity Card Reader Manual • Split series installation for added • 12~24 VDC Operation, auto-adjusting security • Tamper output • Up to 1,000 possible user codes • Keypad illuminates when a button is and/or proximity cards pressed...

  • Page 2: Quick Installation Guide

    This page is for installers looking to do a basic installation and programming of the keypad. For more in-depth installation and programming instructions, see the Table of Contents on page 4. Mounting Diagram: Keypad Controller Mounting Installation screws screws Mounting screws Quick Wiring Diagram: SECO-LARM U.S.A., Inc.

  • Page 3: Quick Programming Guide

    #1 delay time for 3 seconds. 8. Exit Programming Mode: 9. Move the link-up jumper to the OFF position. NOTE: The link-up procedure must be done during initial programming and any time the master code is changed. SECO-LARM U.S.A., Inc.

  • Page 4: Table Of Contents

    Programming the Door Open Alarm and Timing ................31 Programming the Egress Delay/Warning/Alarm ............... 32~33 Direct Access to Programming (DAP) .................... 34 User’s Guide to Operating the SK-4131-SPSQ ................35 Notes .............................. 36 Also Available ..........................36 Warranty ............................36 SECO-LARM U.S.A., Inc.

  • Page 5: Features

    Proximity reader frequency 125kHz (EM125) Proximity reader sensing distance " (38mm) Operating temperature -4°~158°F (-20°~70°C) Operating humidity 5~95% (non-condensing) Keypad "x2 "x1 " (117x73x38 mm) Dimensions Controller "x4 "x1 " (87x120x32 mm) Keypad 6.3-oz (180g) Weight Controller 8.8-oz (250g) SECO-LARM U.S.A., Inc.

  • Page 6: Dimensions

    Remove the cover using a screwdriver. Run wires through the wall or conduit to the controller. Refer to the wiring diagram on pages 8~9 and connect the wires. Finish assembly by reattaching the cover and cover screws. SECO-LARM U.S.A., Inc.

  • Page 7: Led Indicators And Sounds

    In standby mode 1 Flash/sec Continuous beeping for Continuous flashing Power up delay 5 seconds and doorbell for 5 seconds Egress delay warning Continuous beeping Door propped-open warning Continuous beeping Door forced-open warning Continuous beeping and alarm output SECO-LARM U.S.A., Inc.

  • Page 8: Important Notes

    Connect to trigger the left green LED. Jumper Settings Jumper Position Description Full Dim backlit during standby. Full backlit for 10 seconds after any button press. Backlit Auto No backlit during standby. Full backlit for 10 seconds after any button press. SECO-LARM U.S.A., Inc.

  • Page 9: Wiring Diagram - Controller

    Transistor ground max. 100mA@24VDC. Key Active Switches to ground (–) for 10 seconds after any Output button pressed. Transistor ground max. 100mA@24VDC. Alarm Output Switches to ground when alarm output activated, connect to an optional auxiliary alarm. SECO-LARM U.S.A., Inc.

  • Page 10: Sample Applications

    ENFORCER Split Series Keypad with Proximity Card Reader Sample Applications: Stand-Alone Door Lock: In this application, the keypad is connected to a single door lock and an egress pushbutton. SECO-LARM U.S.A., Inc.
  • Page 11 Press egress button to open the door from inside • Connect the door magnetic sensors on the doors to monitor their positions • While door 1 is open, door 2 cannot be opened, and vice versa • SECO-LARM U.S.A., Inc.

  • Page 12: Sample Applications For Auxiliary Terminals

    Door-Forced-Open Warming and Timing" and "Programming the Door Open Alarm and Timing" on pages 30~31. NOTE: Only one connection option is recommended. Make sure that the sink current does not exceed the maximum rating of 100mA. SECO-LARM U.S.A., Inc.
  • Page 13 ON an LED lamp and/ or a small buzzer to notify a guard; or connect it to a 24 hour Normally Open protection zone of an alarm system. NOTE: Only one connection option is recommended. Make sure that the sink current does not exceed the maximum rating of 100mA. SECO-LARM U.S.A., Inc.

  • Page 14: Getting Ready To Program

    (see "Direct Access to Programming (DAP)" on page 34). Turn off the beeping before the 1-minute powered-up period ends: 12 # This will immediately stop the beeping. When this beeping has ended, the keypad is ready for normal operation or for programming. SECO-LARM U.S.A., Inc.
  • Page 15 Move the link-up jumper on the controller to the ON position. Exit programming mode: Move the link-up jumper on the controller back to the OFF position. NOTE: The link-up procedure must be done during initial programming and any time the master code is changed. SECO-LARM U.S.A., Inc.

  • Page 16: Programming Format And Default Programming Values

    32~33 Door open alarm and timing Alarm output is disabled NOTE: The Direct Access to Programming (DAP) code 2828 (page 34) and the system restore code (page 17) are fixed and cannot be changed, even via programming. SECO-LARM U.S.A., Inc.

  • Page 17: System Restore

    If the link-up procedure is not performed after changing the master code then the keypad will beep once every second until the keypad and controller are re-linked (see "Linking the Keypad and Controller" on page 15). SECO-LARM U.S.A., Inc.

  • Page 18: Programming The Super User Code

    Activate or deactivate output #1 (timed or toggle, depending on programming): 2580 # 1 Activate or deactivate output #2 (timed or toggle, depending on programming): 2580 # 2 Activate or deactivate output #3 (timed or toggle, depending on programming): 2580 # 3 SECO-LARM U.S.A., Inc.

  • Page 19: Programming Common User Codes

    To program a common user code for output #1: 03 XXXX # To program a common user code for output #2: 04 XXXX # To program a common user code for output #3: 05 XXXX # SECO-LARM U.S.A., Inc.

  • Page 20: Programming User Codes And Proximity Cards

    The common user code is automatically assigned as each proximity card is programmed into a keypad. – Delete a programmed proximity card or code. • 0999 – Delete all programmed proximity cards or codes for the selected output. • SECO-LARM U.S.A., Inc.
  • Page 21 NOTE: A common user code must already be programmed to the output (see pages 19~20). Program a proximity card for user ID #023 for output #2 for use with unique user code: 20 3 023 2468 # READ CARD SECO-LARM U.S.A., Inc.

  • Page 22: Programming Visitor Codes For Output #1

    Set the visitor ID #02 code to 1378, and make it valid for three hours: 40 02 03 1378 # Delete the visitor ID #02 from memory: 40 02 # Delete all currently programmed visitor codes: 40 0999 # SECO-LARM U.S.A., Inc.

  • Page 23: Programming Duress Codes

    A duress code can be 4 to 8 digits long and must have the same length as all other codes if • the keypad is used in auto code entry mode (see "Programming the User Code Entry Mode" on page 28). SECO-LARM U.S.A., Inc.
  • Page 24 NOTE: Subsequently entering the duress code will activate output #1 again, but will not deactivate the duress output. Deactivate the duress output using the user code: 1369 # Activate the duress output and activate output #1 using the duress code and a user card: 2369 # READ CARD SECO-LARM U.S.A., Inc.

  • Page 25: Programming The Output Mode And Output Timing

    In programming mode, set output #1 to toggle: 51 0 # In programming mode, set output #2 to 60 seconds: 52 60 # Reset output #1 timer: 2580 # 1 Reset output #2 timer: 2580 # 2 SECO-LARM U.S.A., Inc.

  • Page 26: Programming The Real-Time Clock

    The real-time clock must be operating in order to set the output #1 auto-disable time (see • "Programming the Real-Time Clock" above). For safety purposes, the egress button still works while output #1 is auto-disabled. • The time is set using the military (24-hour) time format (00:00 to 23:59). • SECO-LARM U.S.A., Inc.
  • Page 27 In programming mode, clear the output #1 auto-disable time: 56 # Temporarily pause and resume the output #1 auto-disable time: 2580 # 8 Activate output #1 during the auto-disable time (i.e. open the protected door): 2580 # 1 SECO-LARM U.S.A., Inc.

  • Page 28: Programming The Wrong-Code System Lock-Up

    However, if the keypad is reprogrammed for manual entry mode, the longer codes will again operate the keypad. SECO-LARM U.S.A., Inc.

  • Page 29: Programming The Keypad Sounds

    2 short beeps – The keypad will beep twice when an output is activated: • 72 2 # Merc NOTE: This programming function only impacts the output relay activation sounds. It does not impact the keypad sounds (see "Programming the Keypad Sounds" above). SECO-LARM U.S.A., Inc.

  • Page 30: Programming The Amber Led Flashing During Standby Mode

    The door-forced-open warning and the door open alarm should not both be enabled, as the • overlap in timing could result in incorrect alarm outputs (see "Programming the Door Open Alarm and Timing on page 31). SECO-LARM U.S.A., Inc.

  • Page 31: Programming The Door-Propped-Open Warning And Delay Time

    Open Warning and Timing on page 30). To Program: Door open alarm OFF (default): • 91 0 # Door open alarm ON: • 91 TTT # NOTE: represents the alarm output time, which can be set from 1 to 999 seconds. SECO-LARM U.S.A., Inc.

  • Page 32: Programming The Egress Delay/Warning/Alarm

    The keypad and controller will beep and the alarm output and siren will activate for the programmed delay time before letting the door open, to warn that someone is preparing to exit the protected area. SECO-LARM U.S.A., Inc.
  • Page 33 NOTE: For safety and to avoid confusion, when a delay or a press-and-hold delay is programmed, please post a notice near the egress button, such as "Press and hold the button for 5 seconds or until the door is unlocked." SECO-LARM U.S.A., Inc.

  • Page 34: Direct Access To Programming (Dap)

    Direct Access to Programming (DAP) will not reset the keypad’s programming. It will only • enter programming mode in order to program a new master code. For complete system reset, see "System Restore" on page 17. • SECO-LARM U.S.A., Inc.

  • Page 35: User's Guide To Operating The Sk-4131-Spsq

    NOTE: For more information or programming the Egress button, please see "Programming the Egress Delay/Warning/Alarm" on pages 32~33). * The key is not needed if the keypad is programmed for auto entry mode. See page 28. SECO-LARM U.S.A., Inc.

  • Page 36: Notes

    This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for the lifetime of the product. SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty is void if...
