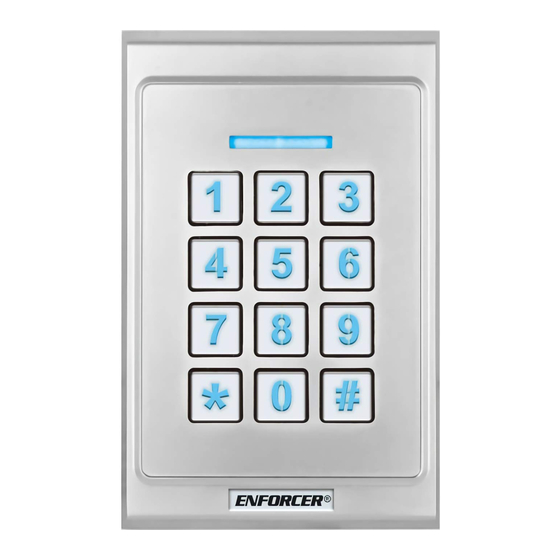

SECO-LARM ENFORCER SLI SK-B141-DQ Quick Start Manual

Bluetooth
Single-Gang Keypad
What's in
the Box:
Specifications:
Operating voltage
Standby
Current
draw
Active (max.)
Form C
Outputs
Alarm
Egress input
Door sensor input
IP Rating
Enclosure material
Operating humidity
Operating temperature
Dimensions
Weight
IMPORTANT NOTES:
*
Because the keypad uses a solid-state relay, you must install the enclosed diode—with the cathode (striped
end ) toward the positive side—for DC powered locks and install the varistor (MOV,
for AC powered locks and for electromagnetic locks unless your lock has a diode/MOV built in. Failure to
use these as directed will void the warranty.
†
Use the blue wire for fail-secure applications and the yellow wire for fail-safe applications. Use electrical
tape to insulate the end of any unused wire.
®
1x SK-B141-DQ ENFORCER Bluetooth
4x Mounting screws
1x Security screw bit
9~25 VDC
29mA@12VDC, 16mA@24VDC
34mA@12VDC, 20mA@24VDC
2.5A@30VDC (Solid state relay)
50mA@30VDC
N.O. Ground
N.C. Ground
IP65 Weather-resistant
Zinc alloy
0-95%, non-condensing
-4°~122° F (-20°~50° C)
1 13 7
3 / "x4 / "x / " (79x123x23 mm)
8 16 8
1-lb 4.9-oz (593g)
™
4x Plastic wall anchors
1x Quick Installation/Setup Guide

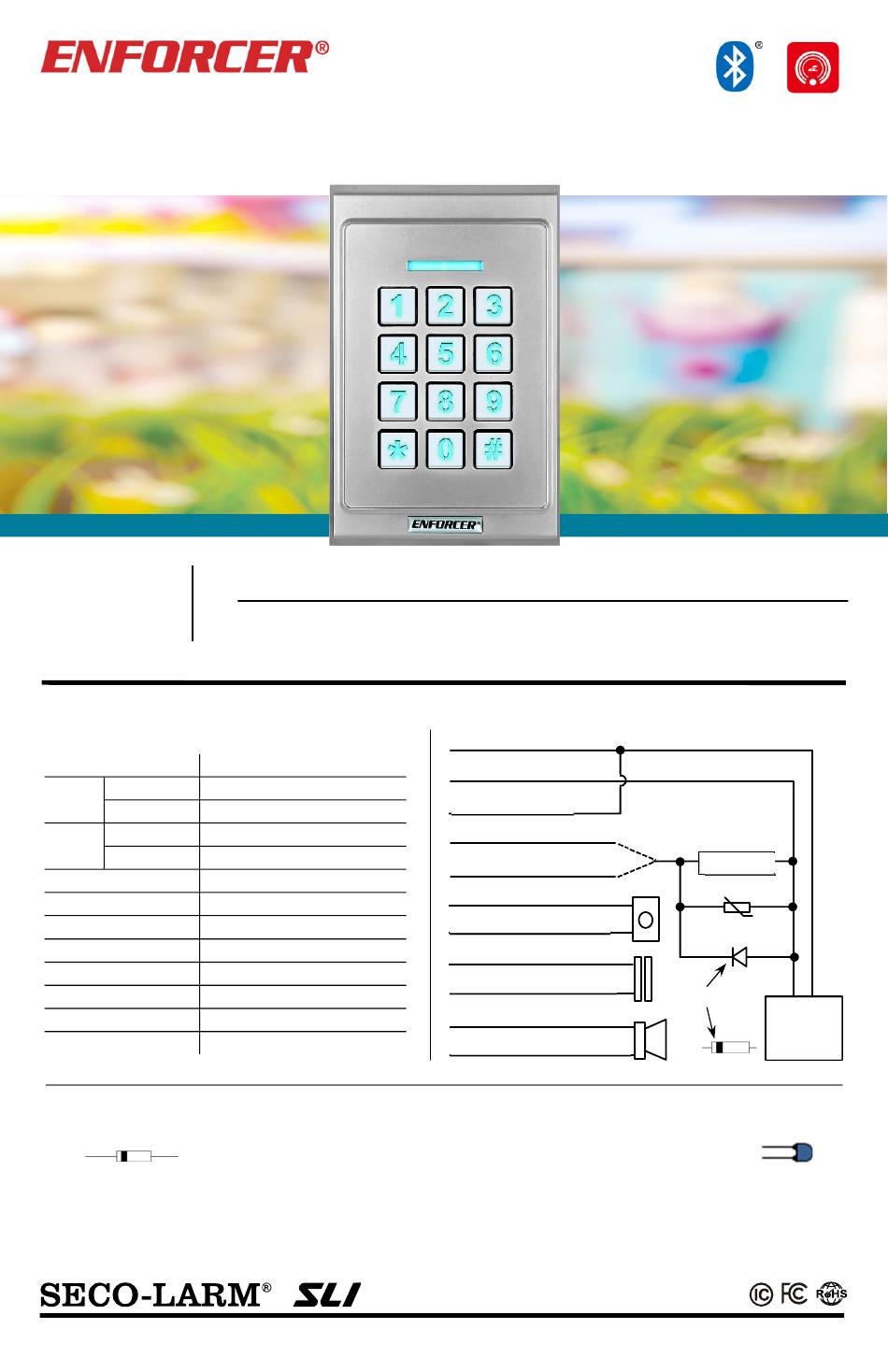

Sample Wiring Diagram:
Red – power (+)
Black – power (–)
White – COM
Blue – N.O. fail-secure
Yellow – N.C. fail-safe
Green pair – RTE button
Brown pair – door sensor
Orange pair – external alarm
SK-B141-DQ
Additional Information
®
Single-Gang Keypad
12x Wire crimps 1x Diode
1x Additional Information
†
or
+ Lock –
MOV
Diode
Cathode
™
SL Access
1x Varistor
*
*
– +
Power
Supply
12/24 VDC
)
