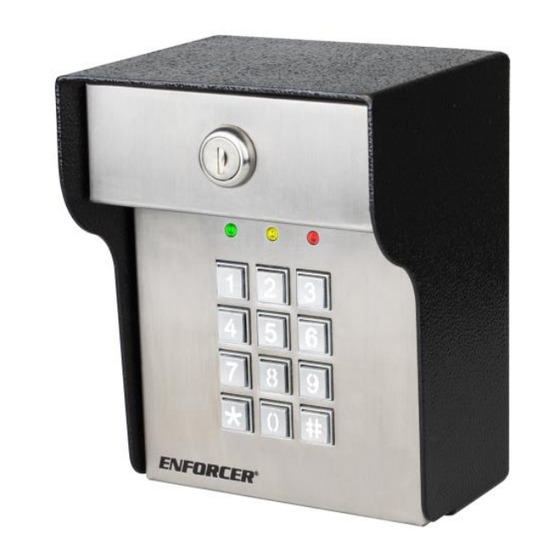

Heavy-duty outdoor stand-alone keypad

Advertisement

SK-3523-SDQ
Heavy-Duty Outdoor Stand-Alone Keypad
Manual
Also available from SECO-LARM:
Indoor Keypads
Outdoor Keypads
SK-1011-SQ
SK-1131-SQ
SK-1123-SQ
SK-1123-FQ
SK-2323-SPAQ SK-1323-SDQ
NOTE: Products with a model number that ends with "Q" or have a round green "Q" sticker represent RoHs compliant products.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENFORCER SK-3523-SDQ and is the answer not in the manual?

Questions and answers

Summary of Contents for SECO-LARM ENFORCER SK-3523-SDQ

  • Page 1 SK-3523-SDQ Heavy-Duty Outdoor Stand-Alone Keypad Manual Also available from SECO-LARM: Indoor Keypads Outdoor Keypads SK-1011-SQ SK-1131-SQ SK-1123-SQ SK-1123-FQ SK-2323-SPAQ SK-1323-SDQ NOTE: Products with a model number that ends with “Q” or have a round green “Q” sticker represent RoHs compliant products.
  • Page 2: Table Of Contents

    12A@14VDC / 7A@120VAC Relay outputs Output #2 12A@14VDC / 7A@120VAC Tamper switch 3A@125/250 VAC Egress (P.B.) input N.O. Ground Reed input N.C. Ground Operating temperature -4°~158° F (-20°~70° C) Dimensions ”x5 ”x4 ” (167x128x112 mm) Weight 4-lb (1.8kg) SECO-LARM U.S.A., Inc.
  • Page 3: Overview

    *See Reed Jumper (page 4) Dimensions: ” ” Front: Side: Rear: (64mm) (112mm) 1” ” (25mm) ” 1 2 3 (167mm) (64mm) 4 5 6 7 8 9 ”  (8mm) ” (13mm) ” ” ” (128mm) (74mm) (5mm) ” (213mm) SECO-LARM U.S.A., Inc...
  • Page 4: Important Notes

    #1 whenever the contact is opened and closed, working as an anti-tailgating feature.  The green LED will flash rapidly whenever the N.C. contact is open Door Sensor Door Sensor Bypassed Enabled and the relay is inactive. (Default) SECO-LARM U.S.A., Inc.
  • Page 5: Installation

    Connect a IN4004 diode (not included) as close as possible and in parallel with an electric strike. This absorbs possible electromagnetic interference to prevent operation of the strike from damaging the keypad. Do not connect a diode when using electromagnetic locks. Please consult the alarm control panel’s manual for more information. SECO-LARM U.S.A., Inc...
  • Page 6: User Control Chart

    ENFORCER Heavy-Duty Outdoor Stand-Alone Keypad SECO-LARM U.S.A., Inc.
  • Page 7 ENFORCER Heavy-Duty Outdoor Stand-Alone Keypad SECO-LARM U.S.A., Inc...
  • Page 8: Sample Application: Connecting To A Gate Operator

    2. Run two wires from the gate operator’s power output terminals to the SK-3523-SDQ’s power terminals. 3. Run two wires from Output #1 on the SK-3523-SDQ to the open/close signal input terminals of the gate operator. Please consult your gate operator manual for more detailed instructions. SECO-LARM U.S.A., Inc.
  • Page 9: Wiring - Door Hold Open Code

    Note: This resets the keypad to factory default settings. All user codes are deleted and the master code is 1234 or 12345 (see above). S.R. S.R. S.R. Keypad will (System restore) (System restore) (System restore) JUMPER JUMPER JUMPER beep 26 times SECO-LARM U.S.A., Inc...
  • Page 10: Programming Instructions

    The red LED will turn solid, confirming the new user code. Step 5 Step 6 Restart from Step 1 to program another Output #2 User Code. Return to programming mode by entering: SECO-LARM U.S.A., Inc.
  • Page 11: Factory Defaults

    If more than 8 digits are entered before a code, more than 10 digits are entered before a code, the keypad will go into lockdown for 55 seconds. the keypad will go into lockdown for 55 seconds. SECO-LARM U.S.A., Inc...
  • Page 12: Operation And Programming Quick Reference Guide

    WARRANTY This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for a period of two (2) years from the date of sale to the original consumer customer. SECO-LARM’s obligation is limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM.
