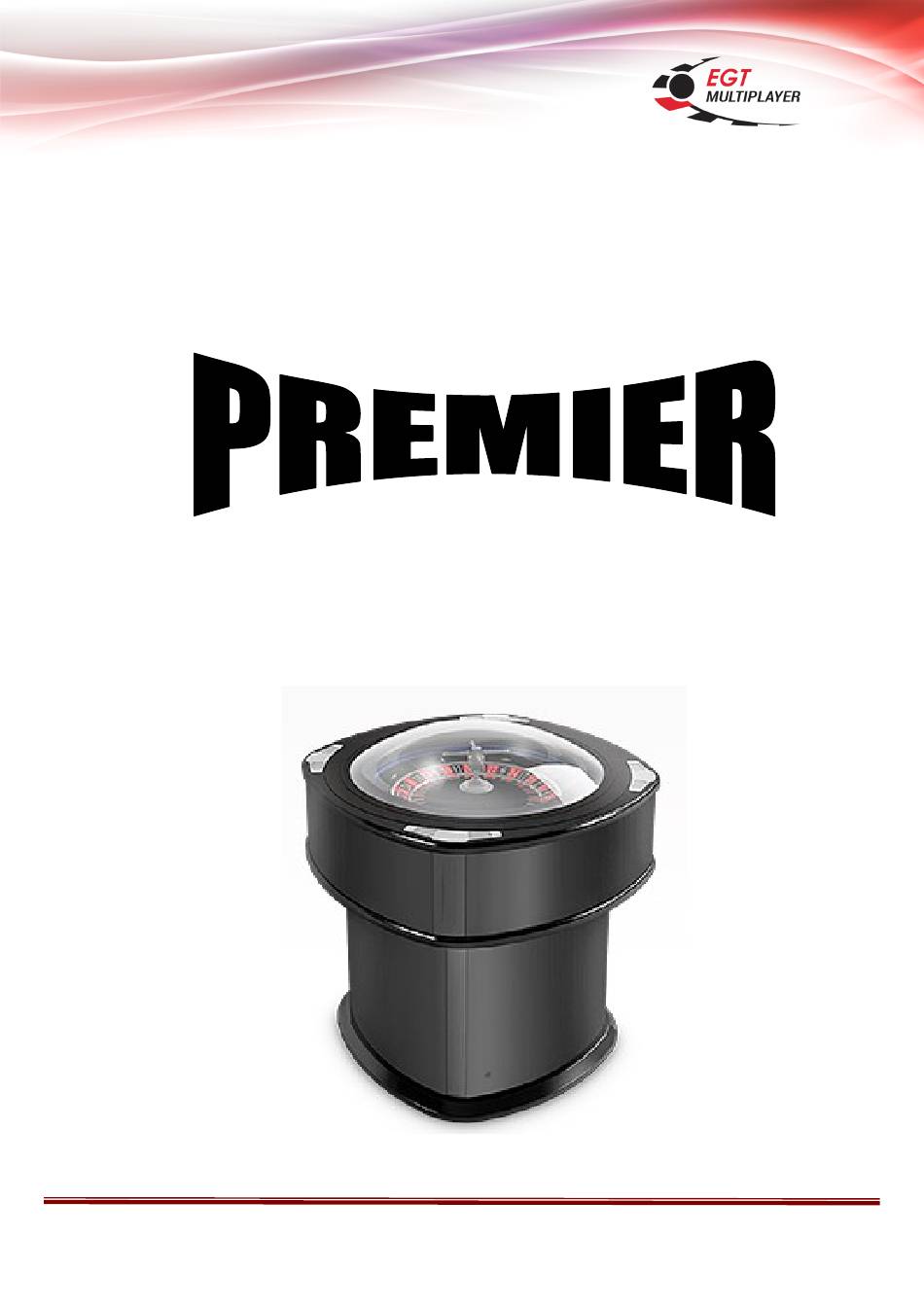

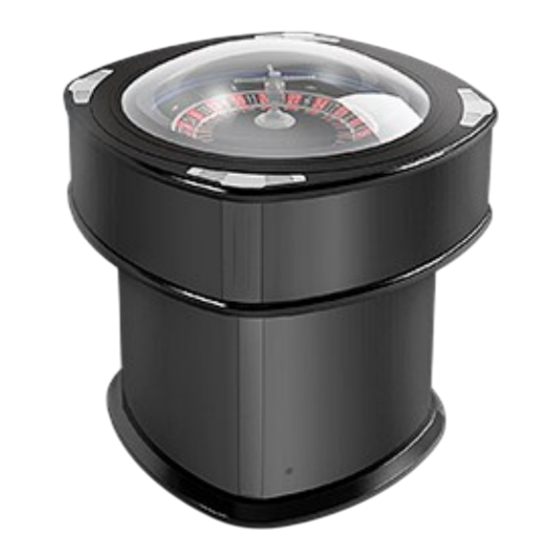

ROULETTE CENTER PREMIER
USER MANUAL
USER MANUAL
ROULETTE CENTER
Rev. 2.3 / 29.05.2019
The manufacturer reserves the right to make changes to the product and the
documentation without prior notice.
www.egt-multiplayer.com
©2018, EGT Multiplayer Ltd.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROULETTE CENTER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EGT ROULETTE CENTER

Summary of Contents for EGT ROULETTE CENTER

  • Page 1 ROULETTE CENTER PREMIER USER MANUAL USER MANUAL ROULETTE CENTER Rev. 2.3 / 29.05.2019 The manufacturer reserves the right to make changes to the product and the documentation without prior notice. www.egt-multiplayer.com ©2018, EGT Multiplayer Ltd.
  • Page 2 ROULETTE CENTER PREMIER USER MANUAL REVISION HISTORY: Rev.1.0. An initial document’s version. Rev.1.1. Revision of syntax errors. Rev.1.2. Correction of stylistic and graphic details. Added more detailed information on the counter module and Exciter-a. Added information about video duplicator. Rev.1.3. Added information about model of power supply.

  • Page 3: Table Of Contents

    III.17. Door switches ......................... 24 III.18 Video control system ......................25 III.19 Video duplicator ........................ 25 IV. Configuration of the Roulette Center Premier IV.1 Introduction ......................... 26 IV.2 Resetting the memory of the control platform ..............27 IV.3 Premier RC Configuration ....................28 IV.4 Diamond Number Jackpot ....................
  • Page 4 This user manual provides all the necessary information for the proper and safe usage of the presented hardware and/or software product. The following document refers to ROULETTE CENTER PREMIER with m-Core control platform.  The table of contents at the beginning of the user manual indicates where the respective ...

  • Page 5: Introduction

    Roulette game with one zero-37 numbers altogether, which is characterized by a stylish design combined with modern technology. The system consists of a roulette center Premier and separate multiplayer terminals for electronic betting connected to it. A different number of terminals can be connected and they can be positioned around the center in different ways.

  • Page 6: Technical Data

    ROULETTE CENTER PREMIER USER MANUAL I. 2. TECHNICAL DATA I.2.1. Technical Data Manufacturer: EGT Multiplayer Ltd, Bulgaria Type: EGT - RC 2 Voltage: 230 , +/- 10%, 50 Hz Current: 4.0 А Frequency : 50 - 60 Hz Fuses: F1 T6 А...
  • Page 7 ROULETTE CENTER PREMIER USER MANUAL I.2.2. Roulette Center Dimensions - Figure.І.2.1 Dimensions of Roulette Center Premier Weight: 140 kg Height: 1050 mm Width: 1050 mm Depth: 1050 mm www.egt-multiplayer.com ©2018, EGT Multiplayer Ltd.

  • Page 8: General Conditions Of Use

    ROULETTE CENTER PREMIER USER MANUAL I. 3. GENERAL CONDITIONS OF USE Roulette Center Premier is designed and constructed in a way that keeps its efficiency under the following conditions: Temperature of the environment from 0С° to +30С°;  Humidity from 0% to 85%;...

  • Page 9: Transportation

     The first start of the Roulette Center after its installation should be performed by an authorized technician, who should check the exploitation parameters and the settings, according to the client requirements and the national laws of the country, in which the Roulette Center has been registered;...
  • Page 10 EN 60335-1.  The Roulette Center can only be plugged in a bipolar plug with protection grounding of the electrical installation. The Roulette Center should be situated in a way that the access to the main power distribution box is not difficult.
  • Page 11 ROULETTE CENTER PREMIER USER MANUAL IMPORTANT:  The protective earth conductor is intended for installation by only by EGT technicians Connect to earth before connecting to supply.  The following symbols are added to the jackpot server box:  - protective earth - To identify any terminal which is intended for connection to an exter-...

  • Page 12: 4. Cleaning And Maintenance

    The cleaning should be performed only after the main circuit- breaker is switched off. The following parts of the Roulette Center should be cleaned regularly: The visible and reachable surfaces of the body should be cleaned daily with suitable ...

  • Page 13: Hardware

    ROULETTE CENTER PREMIER USER MANUAL CHAPTER ІІІ. HARDWARE III.1. GENERAL DESCRIPTION OF COMPONENTS Figure. III. 1.1 Roulette Center Premier with the main door open Figure. III. 1.2. Roulette Center Premier with the service doors open www.egt-multiplayer.com ©2018, EGT Multiplayer Ltd.
  • Page 14 ROULETTE CENTER PREMIER USER MANUAL Figure. III. 1.3. Roulette Center Premier with the service doors open (look from left) General description of the components - positions: The general description of the components shown on Figure. III. 1.1, Figure. III. 1.2., Figure. III. 1.3.
  • Page 15 Fig. III. 2.1. EGT Distribution Box Main Power Supply Unit: Mean Well HRP-300-12 - pos. 15 (III. 1.3); operates at 12 V, supplies the roulette center motors (Microprocessor Board - Roulette Center Controller); Main Power Supply Unit: Mean Well SP-200-12 - pos. 15 (III.
  • Page 16 ROULETTE CENTER PREMIER USER MANUAL Alternative model: SP-200-12 Producer: Mean Well Model: SP-200-12 ( Fig. III. 2.1) Fig. III. 2.1. Mean Well SP-200-12 Main Power Supply Unit SP-200-12 Parameters Value 85 ÷ 264V AC 47 ÷ 63 Hz Input 120 ÷ 370V DC...
  • Page 17 ROULETTE CENTER PREMIER USER MANUAL ІІІ.3. CYLINDER III. 3.1. Location in the Roulette Center: pos. 2 on Fig. III. 1.1 III. 3.2. Model: EGT-“ELR NEON mod.BG”. III. 3.3. Producer of the Wheel: Bohm. III. 3.4. Function The cylinder is a main component of the rou- lette.

  • Page 18: Iii.4 Control Platform

    – Player terminals, Game (Roulette) centers, Jackpot Servers, etc. EGT Multiplayer uses Linux OS in all of its equipment. mCore is assembled by EGT Multiplayer and has four main components (III.4.): Mini-ITX motherboard;...

  • Page 19: Iii.5 Backplane Connectors Board

    III.5.2. Type: Backplane III.5.3. Function: Backplane Connectors Board allows the connection between PX300 and the roulette center periph- erals. Therefore, there are various connectors which are described in Application V.4. On the Backplane there are some additional features as well such as: ...
  • Page 20 An additional 15” LCD monitor is posioned above the SVS 23” in order to visualize the Jack- III. 8 15’’ LCD TOP PANEL (OPTIONAL) pot “Diamond Number”. 15’’ LCD top panel NOTE! Detailed information about the “Diamond Number” Jackpot is pre- sented in Chapter IV “Configuration of the Roulette Center” www.egt-multiplayer.com ©2018, EGT Multiplayer Ltd.
  • Page 21 ROULETTE CENTER PREMIER USER MANUAL III. 9. COUNTERS MODULE III. 9.1. Location in the Roulette Center: pos. 3 on Figure. III. 1.1 III. 9.3. Technical Parameters:  number of the counters: 6;  Power supply: +12 V, 1.25 A max III.
  • Page 22 ROULETTE CENTER PREMIER USER MANUAL ІІІ.10. МOTORS III. 10.1. Type and function: Lifting Motor  It is managed with a power supply of 13,5 V. After the winning number has been read it lifts the central part of the roulette (hat) so the ball can resume its starting position. ( Fig.
  • Page 23 ROULETTE CENTER PREMIER USER MANUAL ІІІ. 11. MAIN INDUCTION MOTOR CONTROLLER III. 11.1. Location in the Roulette Center: pos.11 (III. 1.2.) III. 11.2. Type: SKA 1200037 specializing frequency con- vector with microprocessor control. III. 11.3. Function: It provides the smooth spinning and stopping of the disc, as well as precise rotation calculations.
  • Page 24 ROULETTE CENTER PREMIER USER MANUAL ІІІ.14. NETWORK SWITCH III. 14.1. Function: It provides the high-speed distribution of the information between the terminals and the central computer of the roulette center. III. 14.2. Type:  Producer: D-Link or ZyXEL  Model: DES-1016D Fig.
  • Page 25 ROULETTE CENTER PREMIER USER MANUAL III. 16. LOUDSPEAKERS III. 16.1. Location in the Roulette Center: Pos. 16 on Fig. III.1.3. III. 16.2. Function: They reproduce all the sound messages and melodies. III. 16.3. Technical Parameters:  Producer: AURASOUND, Inc; ...
  • Page 26 ROULETTE CENTER PREMIER USER MANUAL ІІІ.18.VIDEO CONTROL SYSTEM III. 18.1. Type: Аxis F41 Main Unit III. 18.2. Function: It allows a real-time visualization of the balls at the gaming places. III. 18.3. Specifications:  + 12 VDC voltage  HDTV 1080p at 50/60 frames per second ...

  • Page 27: Configuration Of The Roulette Center Premier

    Each configuration is built on the base of “CLIENT” computers for each of the multiplayer terminals and one central computer “SERVER” for the Roulette Center. The software of the multiplayer terminals and the software of the Center are different. The software storage is a CFast Card 8 GB.

  • Page 28: Iv.2 Resetting The Memory Of The Control Platform

    ROULETTE CENTER PREMIER USER MANUAL IV.2. RESETTING THE MEMORY OF THE CONTROL PLATFORM To reset the memory (NVRAM) of the control platform a NVRAM Clear Cfast Card is needed. It is necessary to perform the following operations: a) Turn off the power of the gaming device;...
  • Page 29 The way the roulette center is set defines all of its funcionalities and the information which appears on the SVS screen, the topper and at the screens of each gaming place.
  • Page 30 ROULETTE CENTER PREMIER USER MANUAL IV. 3.1 Network Settings To set up the center: From the System Menu go to Servers/Game Server/Network Settings/Roulette 1 (or the rou- lette, that was used in the previous step) Here is the description of all settings in this section: System settings: Require MCS - Forces the center to work only while there is connection with the MCS.
  • Page 31 Volume Center - sets the center's volume level. The parameters of the function are: [ OFF/from 10 to 100% ]. Voice - configures the language of the Roulette center and the central system, as well as the texts on the sta- tistics.
  • Page 32 ROULETTE CENTER PREMIER USER MANUAL Description of the Servers/Games/ Settings /Roulette 2 section, page two: Stream Settings - settings of the video streamer. The settings are used by the center and all playstations, connected to it. Stream URL - Network Address of the streamer.
  • Page 33 ROULETTE CENTER PREMIER USER MANUAL Diamond Number Layout - sets the layout of the Diamond Number visualization (if Diamond Number is ena- bled). NOTE! The value should correspond to the required layout and Diamond Number visualization's monitor resolution (if Diamond Number is not enabled, the selected value does not matter).
  • Page 34 ROULETTE CENTER PREMIER USER MANUAL ІV.4. DIAMOND NUMBER JACKPOT It is an attractive and drawing attention JACKPOT system, which aims to keep the interest and enjoyment of the players while placing bets on roulette. With fascinating animation and sound, this jackpot system consists of two levels - DIAMOND and SAPPHIRE.
  • Page 35 The 1:1 bets do not participate (red/black. 1-18, 19-36, odd/even. Only a bet on a number can win. A bet is considered as valid at the roulette center if laid before the “No more bets” announcement, which can happen before or after the blowing of the ball, in accordance with the casino policy.
  • Page 36 IV. 5.2 When the Roulette Center reports an error: When an error is reported (e.g. a door is open), the Roulette Center sends it to all the clients. When the gaming place connects to the Roulette Center, the Center sends to it its present sta- tus, the actual errors included.
  • Page 37 ROULETTE CENTER PREMIER USER MANUAL 1. If the error is announced during the game:  1.1 if the error does not refer to an open door, then the game continues 1.2 if the error refers to an open door: 1.2.1 if the setting “Intrusion Behavior” is configurated to “Do Nothing”, then the game continues.

  • Page 38: Contacts

    ROULETTE CENTER PREMIER USER MANUAL CHAPTER V. CONTACTS V. 1. TECHNICAL SUPPORT www.egt-multiplayer.com ©2018, EGT Multiplayer Ltd.
  • Page 39 ROULETTE CENTER PREMIER USER MANUAL www.egt-multiplayer.com ©2018, EGT Multiplayer Ltd.
  • Page 40 ROULETTE CENTER PREMIER USER MANUAL www.egt-multiplayer.com ©2018, EGT Multiplayer Ltd.
  • Page 41 ROULETTE CENTER PREMIER USER MANUAL www.egt-multiplayer.com ©2018, EGT Multiplayer Ltd.

  • Page 42: Offices And Representatives

    ROULETTE CENTER PREMIER USER MANUAL V.2. OFFICES AND REPRESENTATIVES For more information about your area visit www.egt-multiplayer.com the WEB address: www.egt-multiplayer.com ©2018, EGT Multiplayer Ltd.
