EGT R-LINE R8/27 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
R-Line R8/27
User Manual
USER MANUAL
The manufacturer retains its right to make changes
on the product and the documentation without prior notice.
www.egt-multiplayer.com
www.egt-multiplayer.com
©2021, EGT Multiplayer Ltd.
©2021, EGT Multiplayer Ltd.
R8/27
Rev.1.0
18.03.2021
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the R-LINE R8/27 and is the answer not in the manual?

Questions and answers

Related Manuals for EGT R-LINE R8/27

Summary of Contents for EGT R-LINE R8/27

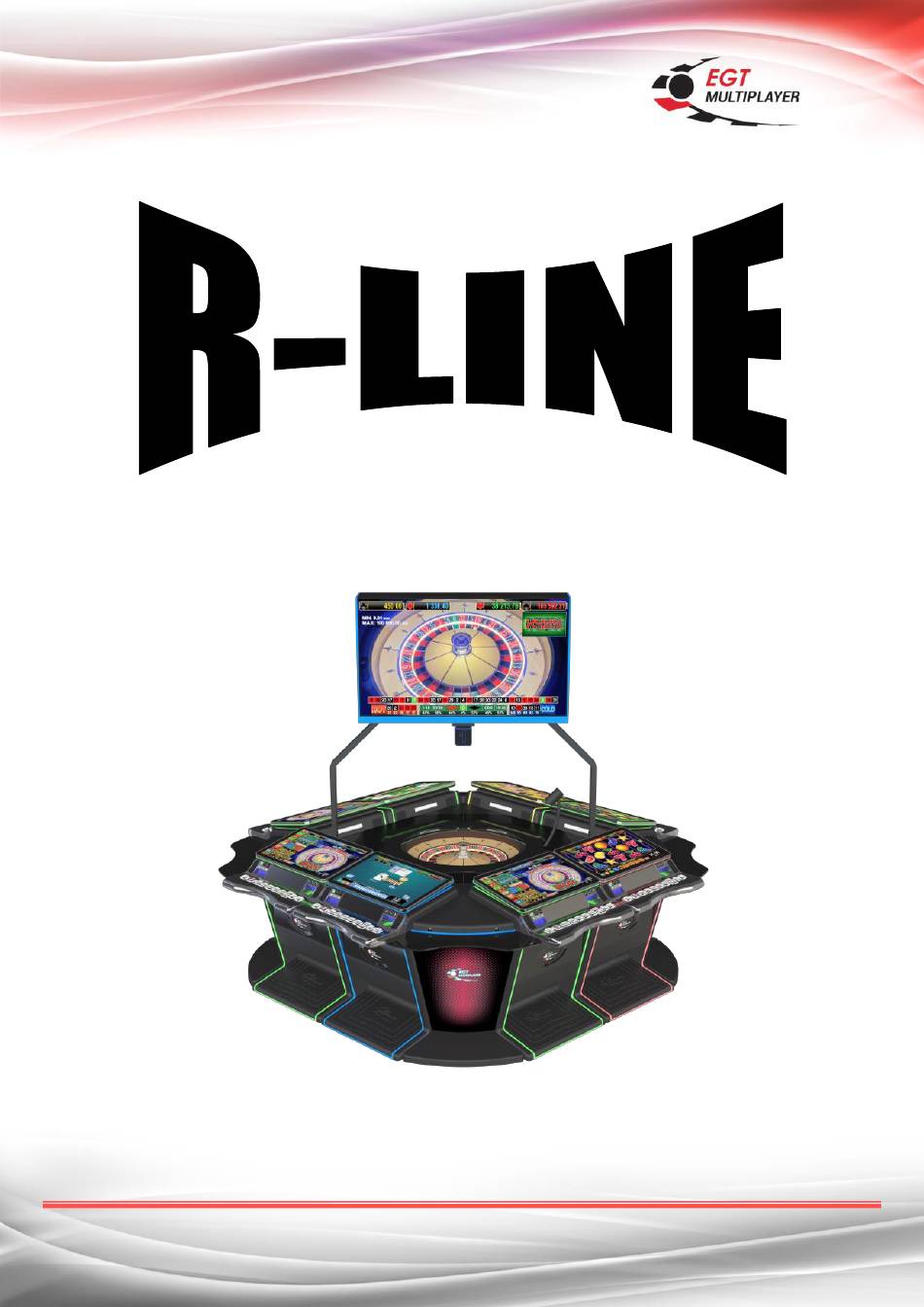

  • Page 1 R-Line R8/27 User Manual USER MANUAL R8/27 Rev.1.0 18.03.2021 The manufacturer retains its right to make changes on the product and the documentation without prior notice. www.egt-multiplayer.com www.egt-multiplayer.com ©2021, EGT Multiplayer Ltd. ©2021, EGT Multiplayer Ltd.
  • Page 2 R-Line R8/27 User Manual Revision History: Rev.1.0. Initial version of document. www.egt-multiplayer.com ©2021, EGT Multiplayer Ltd.
  • Page 3 The current user manual provides all the necessary information for proper and safe usage of the presented hardware and/or software product. The following document refers to R-Line R8/27 Cabinet with m-Core control platform.  The table of contents at the beginning of the user manual indicates where the respective ...
  • Page 4 3.1. General description of components ..................11 A. Statistics Screen ......................12 B. Roulette Center ....................... 13 C. Connection ........................14 D. R-Line R27 Multiplayer Terminal ..................16 4. Troubleshooting 4.1. Troubleshooting ........................19 5. Contacts 5.1. Contacts ..........................20 www.egt-multiplayer.com ©2021, EGT Multiplayer Ltd.
  • Page 5 R-Line R8/27 User Manual CHAPTER 1. INTRODUCTION 1.1. GENERAL DESCRIPTION The R-Line R8/27 Cabinet (Fig.1.1.1.) is a new generation gaming device which combines several different products of EGT Multiplayer Ltd. General Features: 8 x 27” Full HD Touch Screen play ...
  • Page 6 R-Line R8/27 User Manual 1.2. TECHNICAL DATA 1.2.1. Technical Data: Producer: EGT Multiplayer Ltd, Bulgaria Type: EGT-R8/27 Voltage: 100 ÷ 240 V Current: 6,5 A Consumption: 1500 W (statistics included) Frequency: 50 - 60 Hz Location of Identification Details: All technical data is specified and indicated on the Identification Badge, affixed to the Cabinet.
  • Page 7 R-Line R8/27 User Manual 1.2.2. Dimensions The R-line R8/27 Cabinet has the following dimensions (Fig.1.2.3.): Fig.1.2.3 Dimensions of RR-line R8/27 Cabinet Height: 2358 mm Width: 2543 mm (Square’s side) Depth: 2962 mm (Diagonal) www.egt-multiplayer.com ©2021, EGT Multiplayer Ltd.
  • Page 8 The terminal must be placed in vertical position upon transportation. It must stay in stable position, secured against moving and mechanical impact upon transportation. EGT Multiplayer is not responsible for damages caused during transportation. ATTENTION! When the terminal has been transported or displaced from a cold to a warm room, it has to acclimatize for at least two hours prior to power supply, in order to avoid condensation.
  • Page 9 Cabinet is designed for the following voltages: 100 ÷ 240 V; 50 - 60 Hz  The electrical connections from and to the Cabinet should only be performed by EGT Multiplayer Ltd. specialists, their authorized representatives, or specialists, who have undertaken proper training;...
  • Page 10 Children should not to be allowed to play on the Cabinet;  www.egt-multiplayer.com ©2021, EGT Multiplayer Ltd.
  • Page 11 R-Line R8/27 User Manual CHAPTER 3. HARDWARE 3.1. GENERAL DESCRIPTION OF COMPONENTS Fig.3.1. R-Line R8/27 Cabinet - general overview DESCRIPTION OF COMPONENTS ( Fig.3.1) A. Statistics screen 55” C. Connection B. Roulette Center D. R-Line R27 Terminal ATTENTION! Detailed description of each component can be found in the respective User Manual.
  • Page 12 What is visualized on the Statistics screen is an option set up in the settings menu, based on clients’ or jurisdictional requirements. ATTENTION! Detailed description of the Statistics screen can be found in the respective Statistics screen’s User Manual. www.egt-multiplayer.com ©2021, EGT Multiplayer Ltd.
  • Page 13 1 Roulette wheel 4 mCORE 2 Frequency Voltage Converter 5 Roulette Center Control 3 Power Supply Unit (PSU) ATTENTION! Detailed description of the Roulette Center can be found in the respective Roulette Center User Manual. www.egt-multiplayer.com ©2021, EGT Multiplayer Ltd.
  • Page 14 User Manual C. CONNECTION The R-line R8/27 Cabinet has four connections in total. They are located in the four corners of the square shaped cabinet. From the outside they all look the same (fig. C.1.), but their content is different. Thus, the cabinet has the following type of connections: Main 1 (fig.
  • Page 15 Fig.C.3. “Main 2” Connection - overview with opened door Fig.C.4. “Standard 1 and 2 ” Connections - overview with opened door ATTENTION! Detailed description of the Connections can be found in the respective Connections’ User Manual. www.egt-multiplayer.com ©2021, EGT Multiplayer Ltd.
  • Page 16 Fig.D.1. R-Line R27 - overview at closed doors DESCRIPTION OF COMPONENTS ( Fig.D.1) 1 Top Light 11 Electromechanical Counters 2 27’’ Full HD Monitor with Touchscreen 12 EGT MP illumination logo 3 Loudspeakers 13 Foot rest stand 4 Future Option 14 LED illumination 5 Future Option...
  • Page 17 Top Light Identification Badge Transport Wheels Fig.D.2. R-Line R27 - back overview DESCRIPTION OF COMPONENTS (Fig.D.3) RGB Static Controller Sound Controller Bill Validator Keyboard Controller Ticket Printer Fig.D.3. R-Line R27 - overview with open upper part www.egt-multiplayer.com ©2021, EGT Multiplayer Ltd.
  • Page 18 31 Power Distribution Box 32 Power Supply Unit (PSU) 33 mCORE Slim Game Platform 34 I button reader ATTENTION! Detailed description of the R-Line Multiplayer terminal can be found in the respective R-Line Multiplayer terminal’s User Manual. www.egt-multiplayer.com ©2021, EGT Multiplayer Ltd.
  • Page 19 CHAPTER 4. TROUBLESHOOTING 4.1. TROUBLESHOOTING In table 4.1 different problems that may take place are presented. For each problem there is a proposed solution. If a problem persists, get in touch with EGT Multiplayer Ltd. Problem Possible causes Solution The power cable is unplugged.
  • Page 20 User Manual CHAPTER 5. CONTACTS 5.1. CONTACTS www.egt-multiplayer.com For more information visit the WEB address: For other areas visit the WEB address to locate EGT www.egt-multiplayer.com/contacts Multiplayer’s local office, distributer or licensee: EGT Multiplayer’s 24/7 Support is available at the www.egt-multiplayer.com/support WEB address: www.egt-multiplayer.com...
