Parts removal

HVPS removal

Note: Make sure to perform the HVPS characterization when replacing the HVPS.
See Performing the HVPS characterization on page
1. Remove the tray insert.
2. Remove the duplex unit.
3. Remove the rear door. See
4. Remove the bottom rear door. See
5. Remove the left cover. See

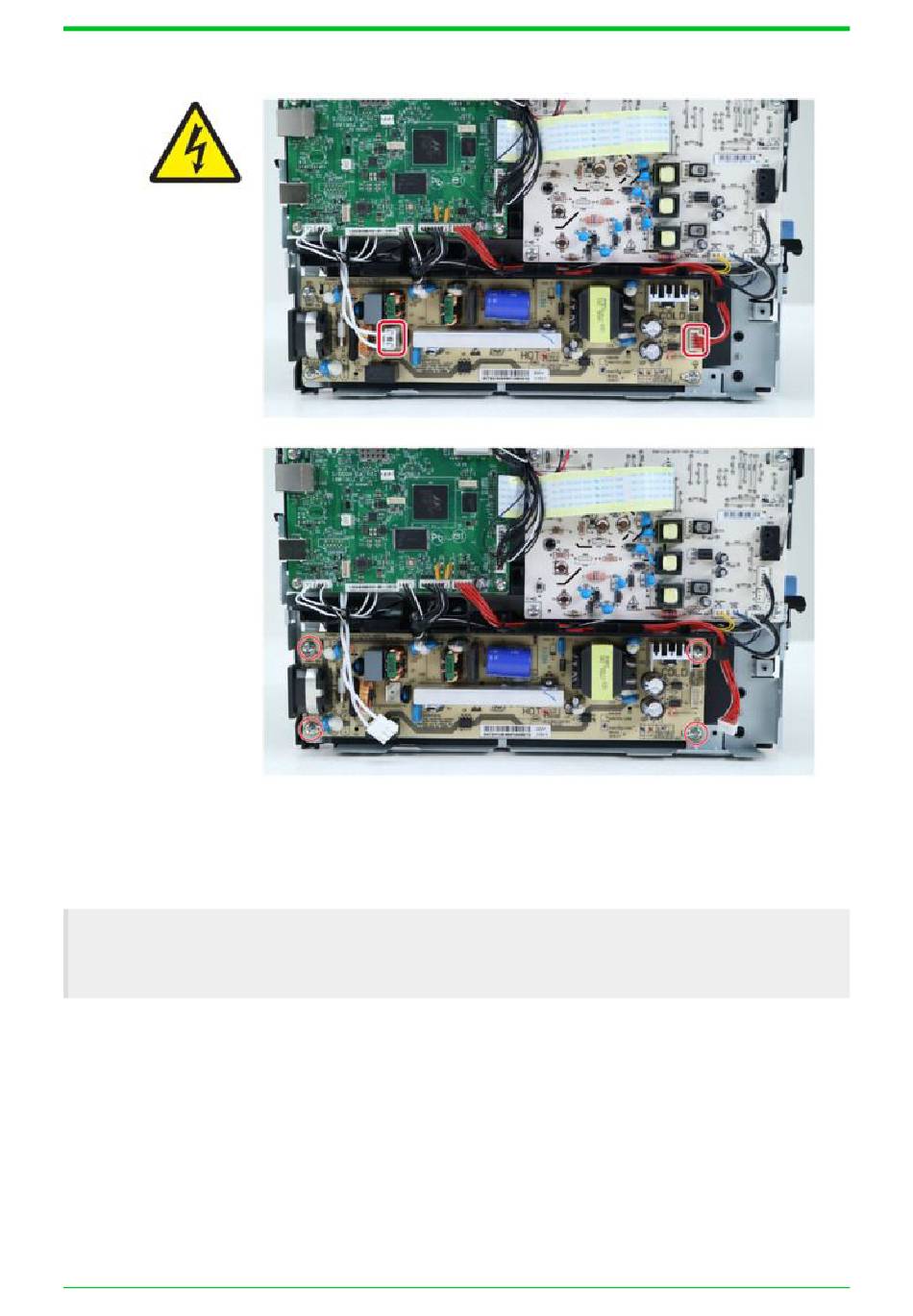

6. Disconnect all the cables.
Bottom rear door removal on page
Bottom rear door removal on page
Left cover removal on page
327
318.
347.
347.
319.
