2. DESCRIPTION OF DEVICE COMPONENTS

19
17 16
18
2

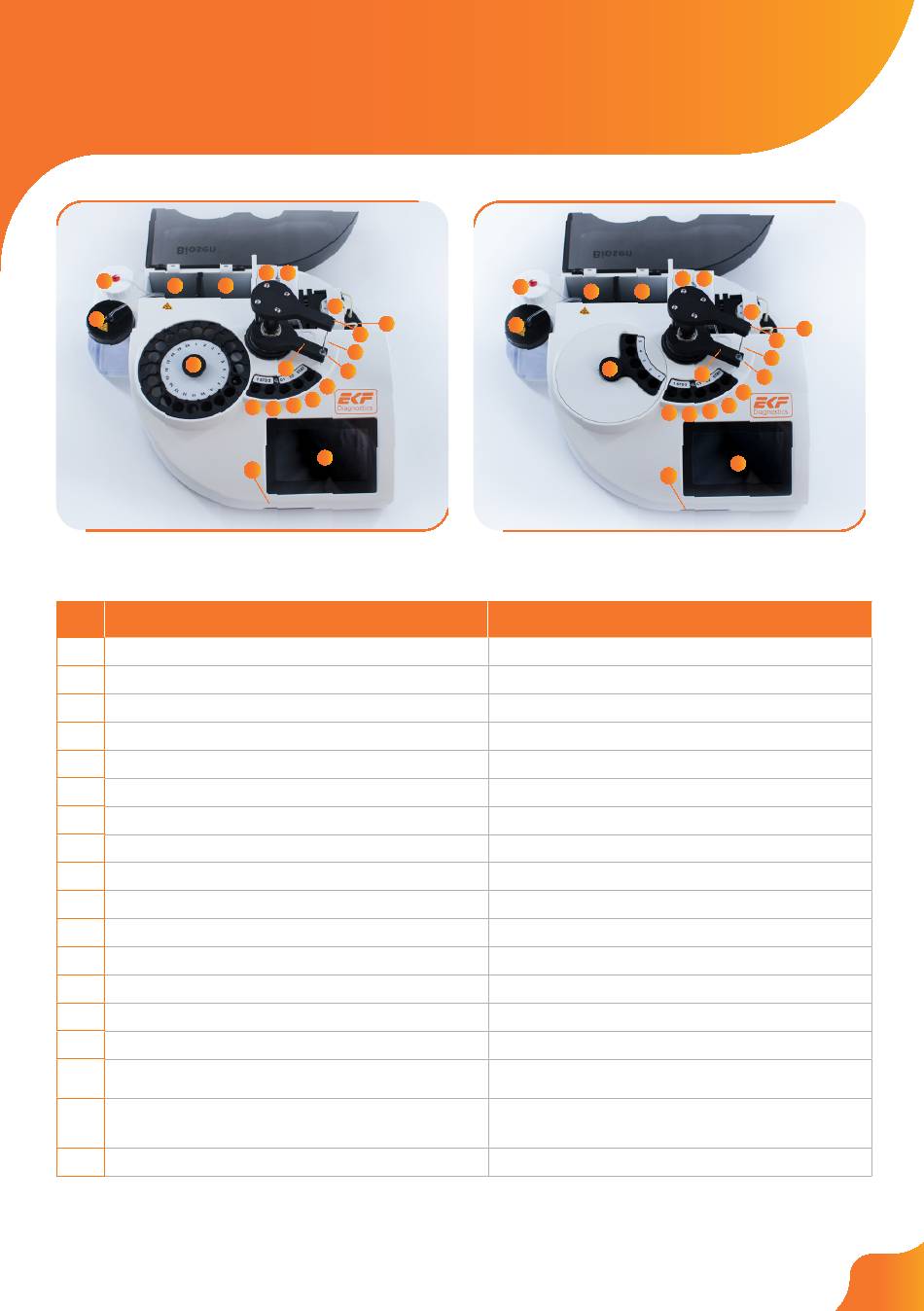

Figure 1 – Front view
NR.
1 Display with touch panel
2 Tray for 20 samples
3, 4 Positions for standard 1 and 2 (STD1, STD2)
5, 6 Positions for control 1 and 2 (C1, C2)
7
Positions for urgent sample (STAT)
8
Exchanger (maintenance part)
9
Sample cannula (maintenance part)
10 Lifter
11 Pivot arm
12 Pump tube (maintenance part)
13 Pump with pump flap
14 Sensor holder measuring channel 1
15 Sensor holder measuring channel 2 (optional)
16
Opening for bottle of system solution
17
Opening for waste bottle
Waste bottle with lid, color code black +
18
symbol Biohazard
Bottle for system solution with lid, color
19
code red
20 Card reader
15 14
13
12
10
9
11
8
7
6
3 4 5
1
20
C-Line Clinic
19
17 16
18
2
3 4 5
20
C-Line GP+
Display with touch panel
Tray for 5 samples
Positions for standard 1 and 2 (STD1, STD2)
Positions for control 1 and 2 (C1, C2)
Positions for urgent sample (STAT)
Exchanger (maintenance part)
Sample cannula (maintenance part)
Lifter
Pivot arm
Pump tube (maintenance part)
Pump with pump flap
Sensor holder measuring channel 1
Sensor holder measuring channel 2 (optional)
Opening for bottle of system solution
Opening for waste bottle
Waste bottle with lid, color code black +
symbol Biohazard
Bottle for system solution with lid, color
code red
Card reader
