6.5 Exchanger and sample cannula

The exchanger should be changed in a 6 month cycle. The sample cannula should
be changed in a 12 month cycle.
Empty the whole flow system using the menu item
main menu/maintenance/emptying and follow the instructions on the screen.

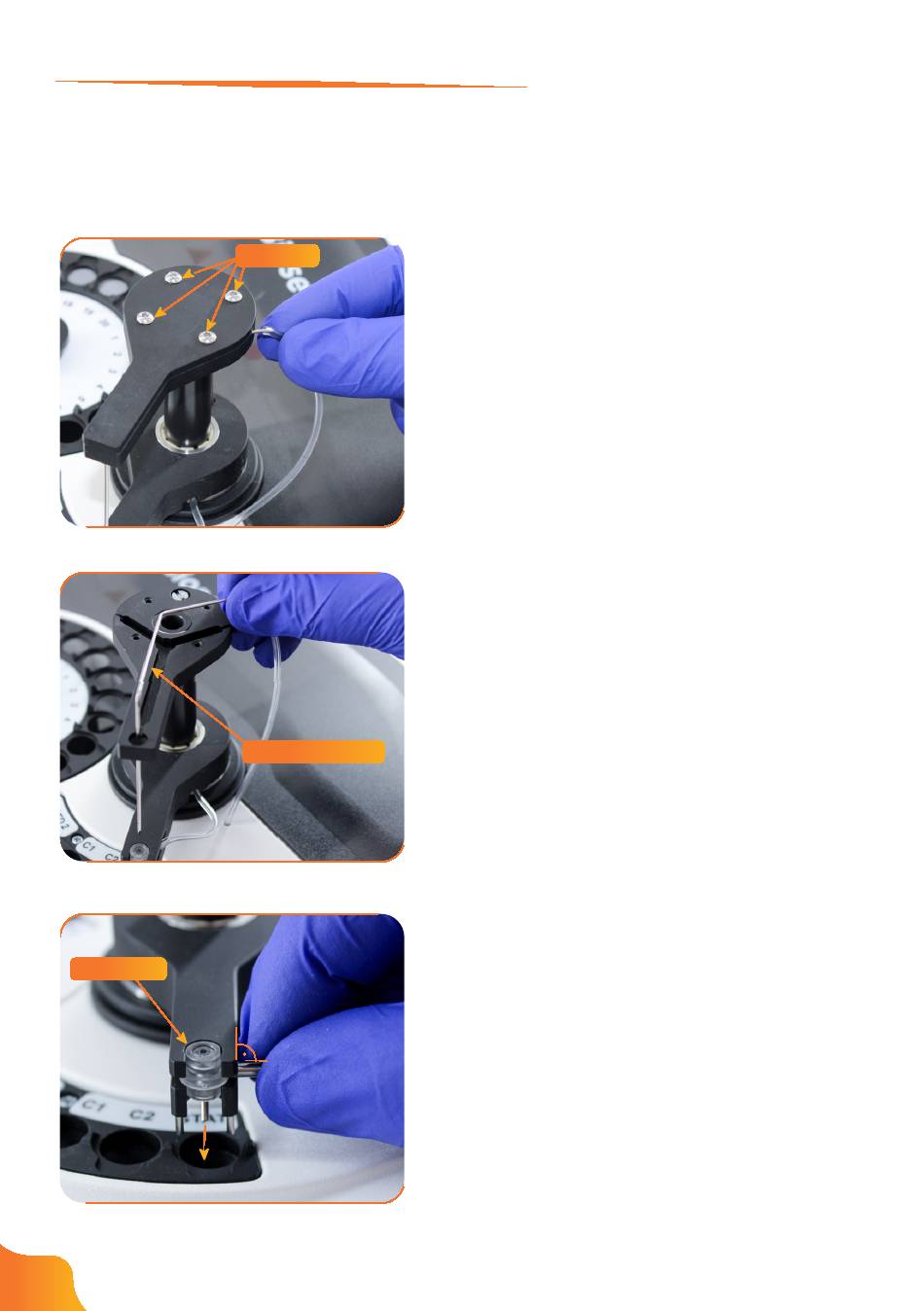

Figure 33 - loosen screws
Figure 34 - pull out sample cannula
Exchanger
Figure 35- pull out exchanger
36
Screws
Sample cannula
Pull the tube away from the
sample cannula and loosen the
fastening screws.
Take off the cover plate of the pivot
arm and pull out the sample cannula
upwards.
Turn the exchanger at the tube
connection until it is at right angles to
the pivot and then pull it out forwards.
