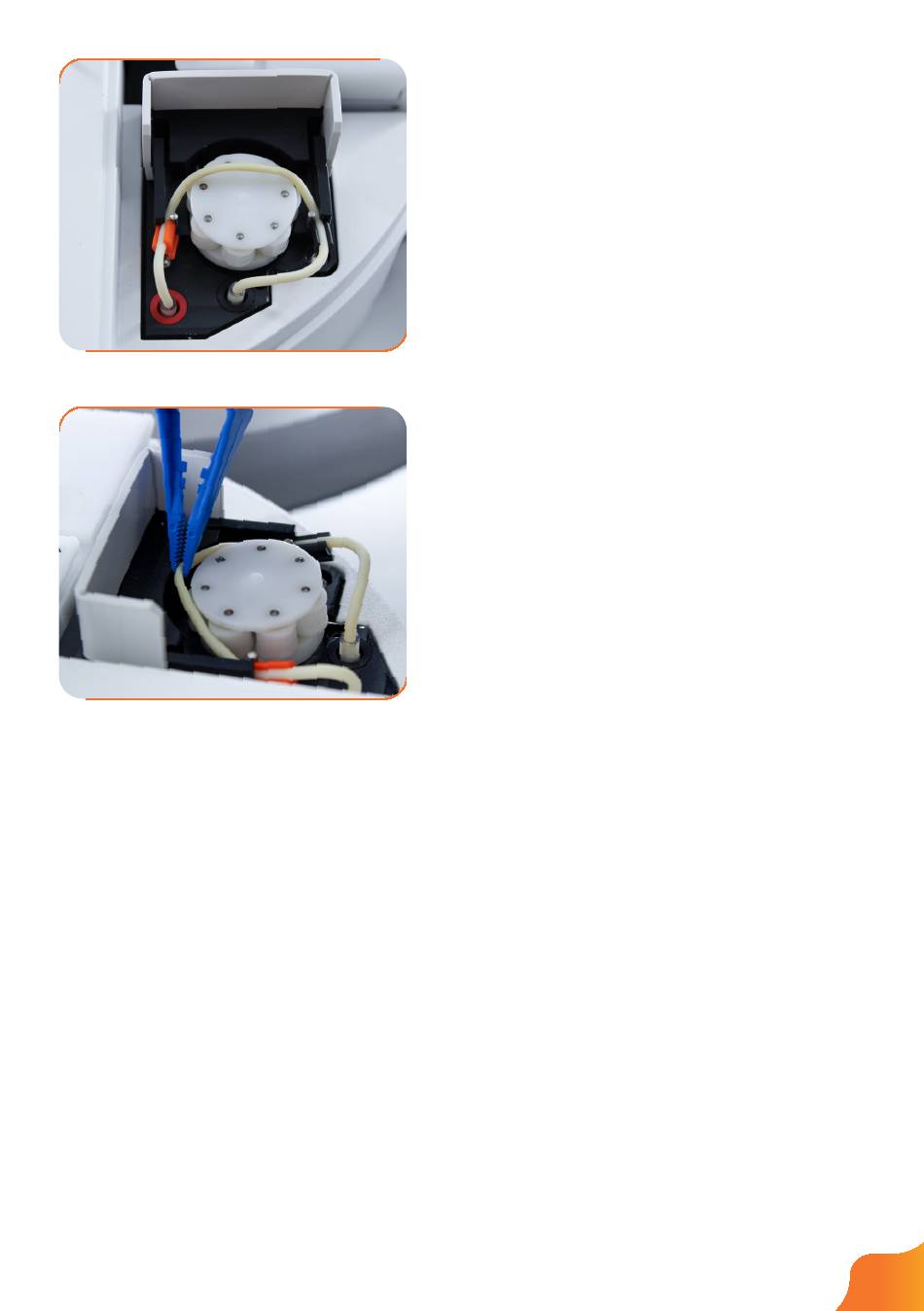

Figure 31 – push tube into the constriction
Figure 32 – looping over pump tube
Push the tube into the constriction
between the metal rod and the
housing. Make sure that the red and
black markings remain on the side of
the tube connections.
The pump tube must be looped over
and centered on the pump rollers. A
rounded pair of tweezers is
recommended for this.
Do not use sharp objects.
Then close the pump flap from left to
right.
