3. DESCRIPTION OF GRAPHICAL USER INTERFACE

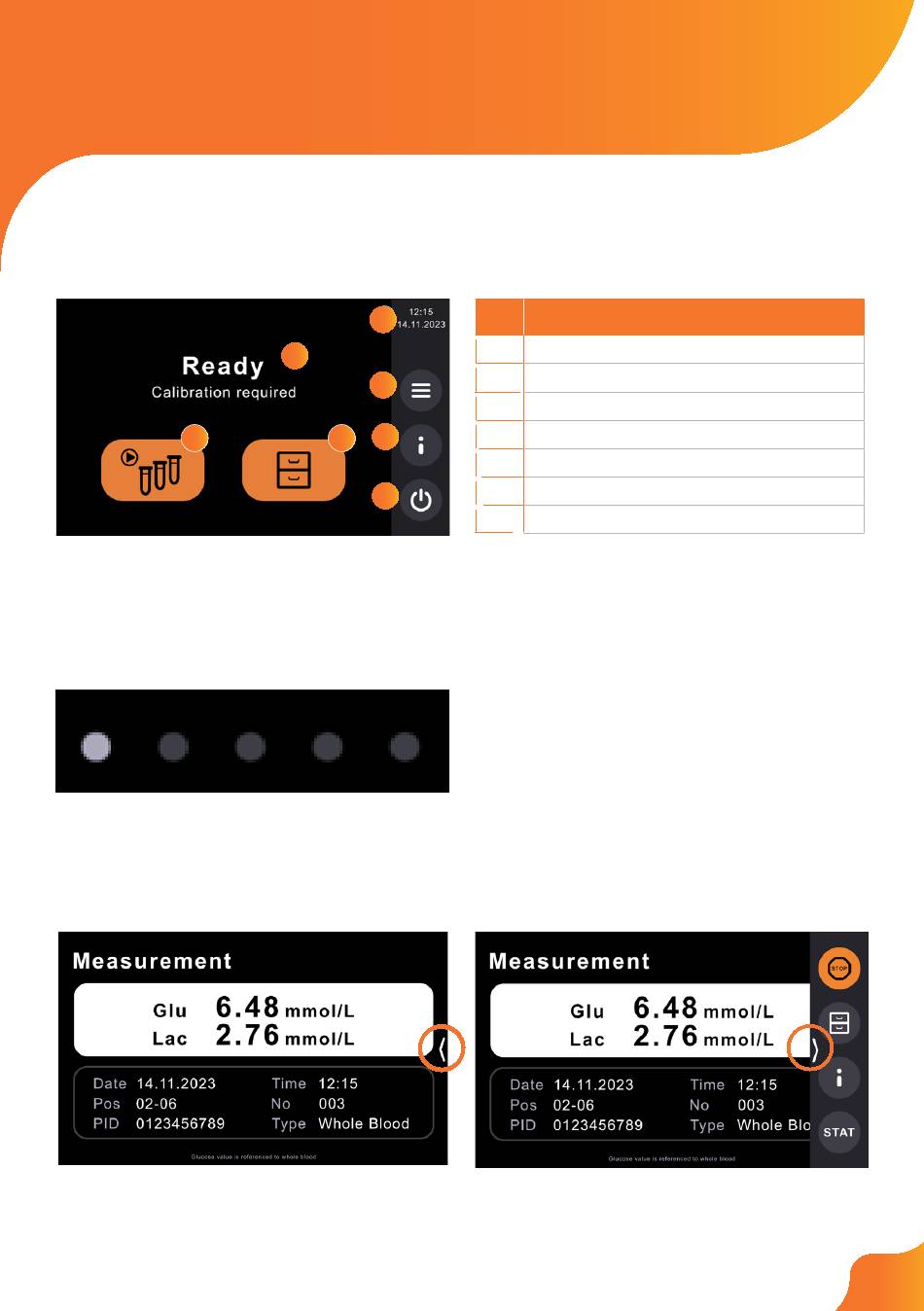

The touch panel is the main interface for the user. The home screen is displayed
in Figure 3. You can see the status of the device (1) and use the main functions to
perform measurement (2) and access the memory (3) directly from this screen.
2
Figure 3 – Home screen view
In some instances, additional screens are available by swiping to the side. This is
always indicated by page indicators in the form of grey dots at the lower end of
the display (see Figure 4).
Figure 4 - Page Indicator
A white arrow on the right indicates, that there are more buttons available (see
Figure 5 and Figure 6).
Figure 5 - white arrow at the right
4
1
5
6
3
7
NR. Description
1 Status of the device + advice text
2
Perform measurement
3 Memory
4 Date and time
5 Main Menu
6 Info Menu
7
Stand by
Figure 6 - additional buttons
