Replacing the hot end
Hide thumbs Also See for 2 PLUS:

Advertisement

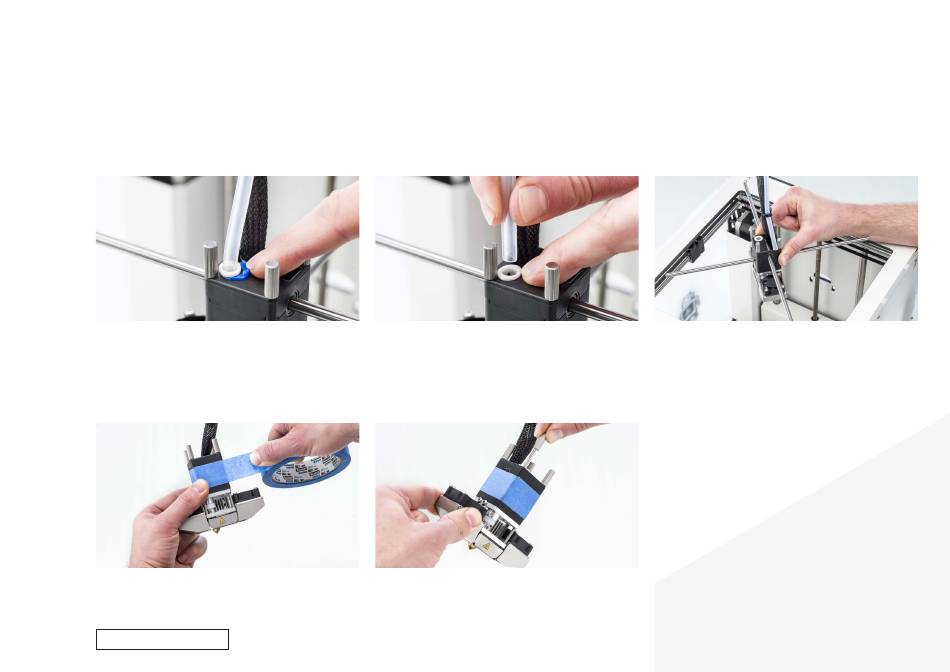

Disassembly
1. Remove the clamp clips
Place the print head in the front right corner.
Remove the blue clamp clip..
4. Tape the print head housing
Put some tape around the three parts of the print head housing.
This ensures that the parts stay together.
For internal use only
2. Remove the Bowden tube
Press down on the white tube coupling collet.
At the same time, pull the Bowden tube upwards, out of the print
head.
5. Remove the thumb screws
Loosen the four thumb screws and take them out of the print head.
Move the print head housing up, keep it out of the way using more
tape.
2
/ 8
Page.
3. Take the print head out of the printer
Pull the Y print head shaft forward so it snaps out of the sliding
blocks.
Tilt the left and right sliding blocks so that the X print head shaft
also comes loose.
Rotate the print head 45 degrees so you can lift the print head and
shafts out of the printer, then put the print head shafts aside.
