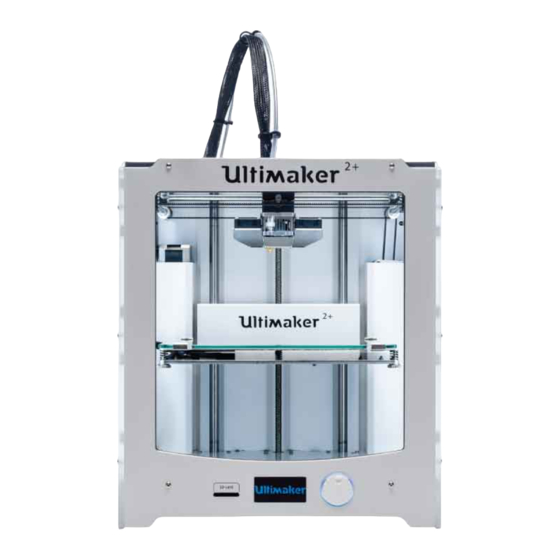

Ultimaker 2+ Repair Manual

Hide thumbs Also See for 2+:

Download this manual

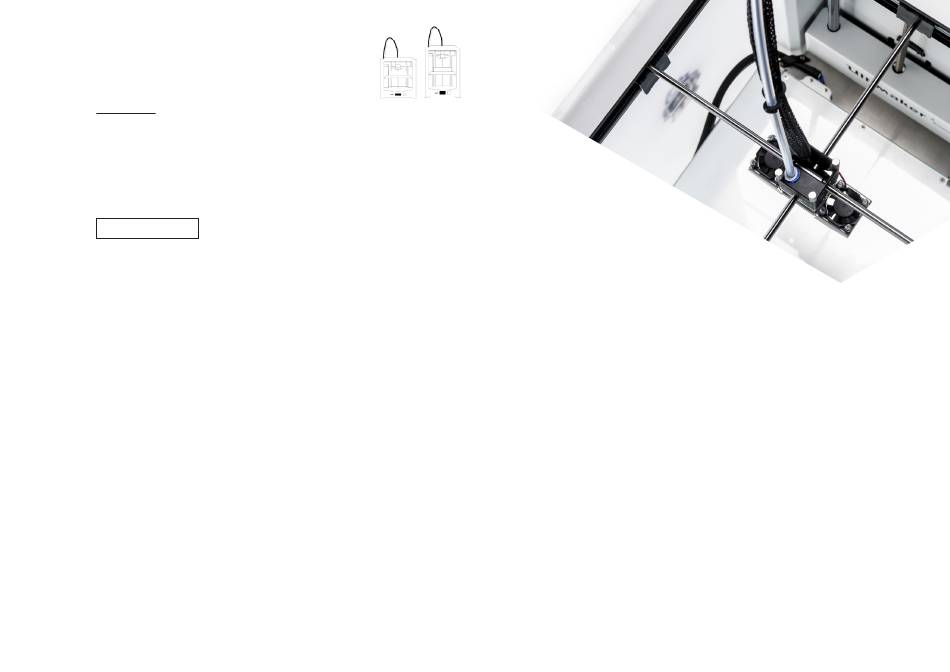

Repair manual Ultimaker 2+

Replacing

the display

For internal use only

Replacing the display

Important: Make sure the filament is removed, the Ultimaker is

turned off and the power supply is disconnected before you start the

replacement.

Tip: All orientations are noted as seen from the front of the printer.

Note: These instructions are the same for the Ultimaker 2+ and

Ultimaker 2 Extended+.

Equipment/supplies needed

Tools

•

2.0 hex screwdriver

•

Socket wrench

•

Pliers

•

0.3 Torque screwdriver with 11 CR-V socket (optional)

Parts

•

1x 1247 - Display

Page.

Need help?

Do you have a question about the 2+ and is the answer not in the manual?

Page 1 Tip: All orientations are noted as seen from the front of the printer. Note: These instructions are the same for the Ultimaker 2+ and Ultimaker 2 Extended+. Equipment/supplies needed Tools •...
Page 2 4. Loosen the Ulticontroller cover • Use pliers to turn the M7 nut counterclockwise until it is loose. • Gently place the Ultimaker on its left side. • Hold the M7 washer up with your fingernail to align it with the •...
Page 3 Disassembly 5. Remove the Ulticontroller cover 6. Remove the Ulticontroller board from the bottom panel 7. Disconnect the display • Tilt the back of the cover and firmly pull it away from the bottom • Remove the four M3x12 bolts that hold the Ulticontroller board •...
Page 4 Re-assembly 1. Connect the new display to the Ulticontroller 2. Remove the foil 3. Put the Ulticontroller in position • Place the display with the screen down before connecting. • Remove the protection foil from the display. • Carefully move the Ulticontroller towards its position on the •...
Page 5 Re-assembly 7. Fit the controller button 8. Put the Ulticontroller cover back in place 9. Secure the Ulticontroller cover • Push the button over the pin. • Slide the front two tabs against the display, on each side of the •...
