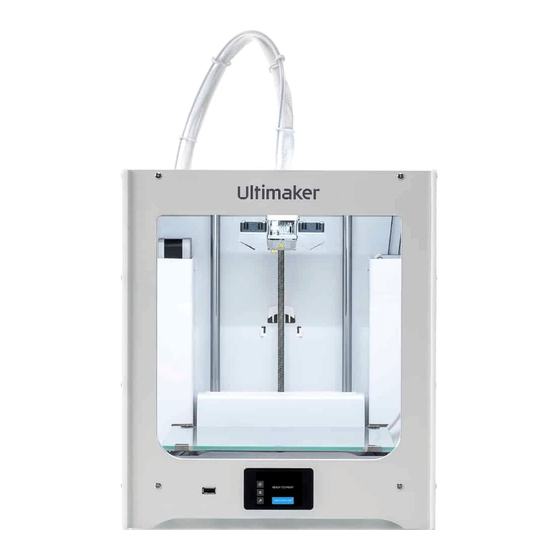

Ultimaker 2+ Connect

Repair manual: Connectivity board

Required

Tools

• ESD prevention supplies

• 2.0 mm hex screwdriver

• 2.0 mm hex bit

• Torque screwdriver 0.5 Nm (or adjustable)

• Tweezers or flat-sided screwdriver (optional)

Parts

• 1x 221542 – Connectivity board assembly

Time

• 10 minutes

Notes

Caution:

Make sure the filament is unloaded, the Ultimaker

2+ Connect is turned off, and the power cable is disconnected

before you start the replacement.

Caution:

This repair involves working with or exposing

sensitive electronic components. Take ESD precautions before

starting this procedure.

Tip:

All orientations are as seen from the front in the upright

orientation, unless specified otherwise.

Need help?

Do you have a question about the 2+ Connect and is the answer not in the manual?

Page 1 Caution: Make sure the filament is unloaded, the Ultimaker • 2.0 mm hex screwdriver 2+ Connect is turned off, and the power cable is disconnected • 2.0 mm hex bit before you start the replacement. • Torque screwdriver 0.5 Nm (or adjustable) •...
Page 2 4. Press the lip on the Ethernet cable and 5. Disconnect the gray ribbon cable from disconnect the cable from the connectivity board the connectivity board Tip: You do not need to open any of the cable clips Ultimaker 2+ Connect Repair manual: Connectivity board...
Page 3 Be very careful; these connectors are fragile 8. Remove the four M3x12 bolts that secure the 9. Take out the connectivity board assembly connectivity board to the bottom panel Tools: 2.0 mm hex screwdriver Ultimaker 2+ Connect Repair manual: Connectivity board...
Page 4 Ensure the cables remain fully inserted while closing the connectors 5. Connect the Ethernet cable so that 6. Connect the ribbon cable to the black connector it clicks into place at the side of the board Ultimaker 2+ Connect Repair manual: Connectivity board...
Page 5 After replacing the connectivity board, the following actions and checks are recommended: • Update the firmware to the latest version • Connect the printer to the network • Run a (quick) test print Ultimaker 2+ Connect Repair manual: Connectivity board...
