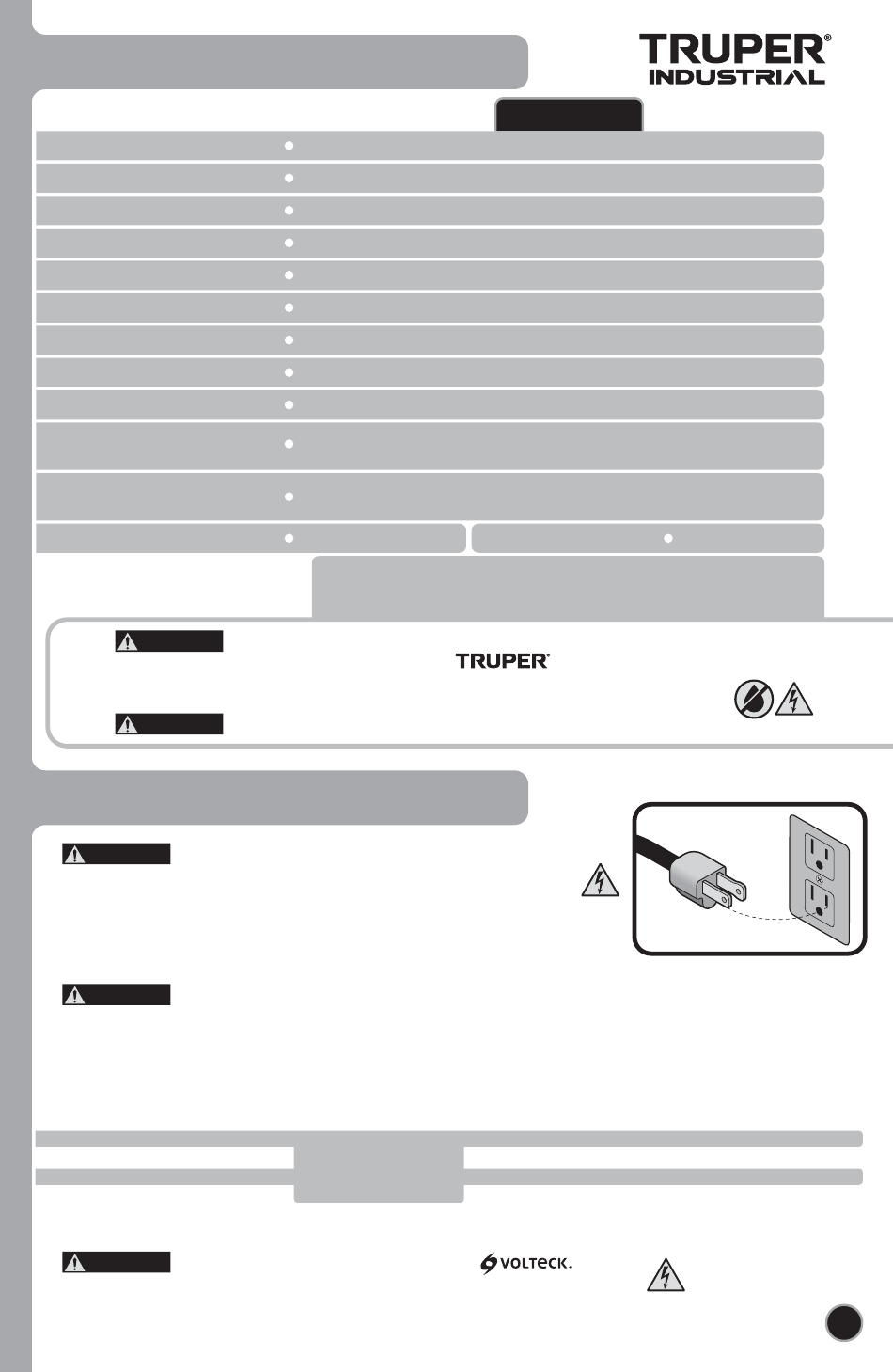

Technical data

Code
Description
Chuck
Voltage
Frequency
Current
Power
Speed
Drilling Capacity
Duty cycle
Conductors
Insulation
WARNING
Avoid the risk of electric shock or severe injury. When the power cable gets damaged
it should only be replaced by the manufacturer or at a
The build quality of the electric insulation is altered if spills or liquid gets into the tool while in use.
Do not expose to rain, liquids and/or dampness.
Before gaining access to the terminals all power sources should be disconnected.
WARNING

Power requirements

WARNING
Double insulated and reinforced insulation tools are equipped
with a polarized plug (one blade is wider than the other). This plug will fit into any
polarized plug and will only fit one way. If the plug does not fit in the socket, flip it
over. If it still does not fit, contact a qualified electrician or install a polarized plug.
Do not alter the plug in any way. Both types of insulation eliminate the need for a
grounded, three-part power cord or grounded power system.
WARNING
When using an extension cable, verify the gauge is enough for the power that your product needs. A lower
gauge cable will cause voltage drop in the line, resulting in power loss and overheating. The following table shows the right
size to use depending on cable's length and the ampere capability shown in the tool's nameplate. When in doubt use the
next higher gauge.
Ampere
Capacity
from 0 A and up to 10 A
from 10 A and up to 13 A
from 13 A and up to 15 A
from 15 A and up to 20 A
WARNING When operating power tools outdoors, use a
extension cable labeled "For Outdoors Use". These extensions are especially designed
for operating outdoors and reduce the risk of electric shock.
18 AWG x 2C with insulating temperature of 221 °F
Class II
Number of
Conductors
3 (one grounded)
* It is safe to use only if the extensions have a built-in artifact for over current protection.
AWG = American Wire Gauge. Reference: NMX-J-195-ANCE
TAL-1/4N
103067
Drill
1/4" (6.5 mm)
127 V~
60 Hz
3.2 A
380 W
0 RPM - 3 300 RPM
Steel: 15/64" | Wood: 19/32"
50 minutes work per 20 minutes idle.
Maximum 6 hours per day.
IP Grade
Power Cord Grips used in this product: Type "Y".
Tool Build Quality: Reinforced insulation
Thermal insulation on motor winding: Class E.
Authorized Service Center.
Extension gauge
from 5.9' to 49.2'
18 AWG( * )
16 AWG
14 AWG
8 AWG
grounded
IP20
| higher than 49.2'
16 AWG
14 AWG
12 AWG
6 AWG
ENGLISH
3
