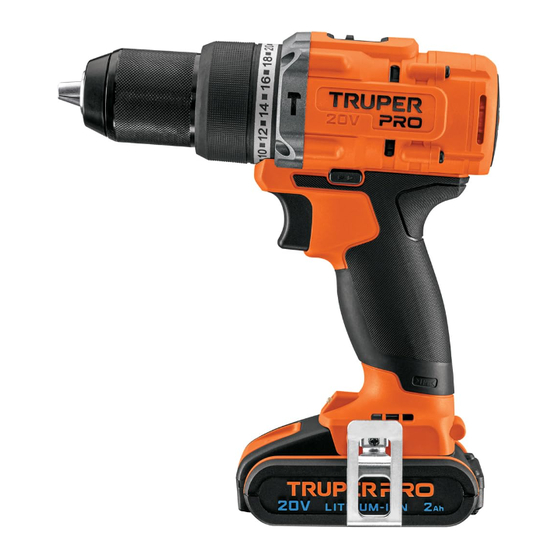

- Page 1 Manual Cordless hammer drill/driver 13 mm 20 V 1/2” Chuck Applies for: Codes Models 103246 ROTI-20A3 103247 ROTI-20A2 103248 ROTI-20AS ROTI-20A2 Read this manual thoroughly CAUTION before using the tool.
-
Page 2: Table Of Contents
Contents CAUTION Technical data Power requirements To gain the best performance of the tool, prolong the duty life, General safety warnings make the Warranty valid if for electric tools necessary, and to avoid hazards of fatal injuries please read and Safety warnings for the understand this Manual before use of hammer drills... -
Page 3: Technical Data
Avoid the risk of electric shock or severe injury. When the power cable gets damaged it should only be replaced by the manufacturer or at a TRUPER Authorized Service Center. The build quality of the electric insulation is altered if spills or liquid gets into the tool while in use. -
Page 4: General Safety Warnings For Electric Tools
General safety warnings for electric tools WARNING! Read all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury. Keep all warnings and instructions for future reference. The term 'power tool' in the warnings refers to your corded (plugged-in) or cordless (battery-operated) power tool. -
Page 5: Safety Warnings For The
Only recharge with the charger specified by the manufacturer. Damaged or modified batteries can exhibit unpredictable behavior, resulting in Charge only with the charger specified by TRUPER. Do not use any charger not fires, explosions, or injury risks. specifically provided for use with the equipment. -
Page 6: Safety Warnings For The
When the battery is not in use, keep it away from other • Recharge only with the charger specified by TRUPER. Do not use any other metallic objects, such as clips, coins, keys, nails, screws, or other small metallic charger not specifically provided for use with the equipment. -
Page 7: Parts
Parts Speed Torque and mode Chuck selector selector Double ended drill bit Forward/reverse Battery switch charger ON/OFF switch Soft grip handle LED light Battery pack release button Battery (included only in ROTI-20A3 and ROTI-20A2) Belt clip Start up NOTE: Before using the tool, carefully read the instruction manual. The machine is intended for screwing and unscrewing, as well as for drilling in wood, steel, concrete, and plastic. -
Page 8: Belt Clip Assembly
Start up Charging • Connect the charger to a suitable power outlet. The green light will illuminate. • Slide the battery pack into the charger, ensuring that the battery is in the correct charging position securely. The green light will turn off, and the red light will illuminate to indicate that the charging process has started. -
Page 9: Checking The Battery Status
Start up Checking the battery status Reversible For drilling and screwing, use the forward rotation The battery level can be checked through the battery marked with (lever moves to the left). Only use indicator light by pressing the button next to the lights. the reverse rotation marked with (lever moves to the right) to remove screws or release a jammed drill... -
Page 10: Speed Selection
Start up Speed selection Torque adjustment The drill features a two-speed selector designed for drilling (Screwing force of your drill driver) or screwing at LOW speed (marked 1) or HIGH speed Torque is adjusted by turning the torque adjustment (marked 2). A sliding switch is located on top of the drill to ring. -
Page 11: Overload Protection
Start up Temperature-dependent Using the LED Light overload protection To turn on the light, simply press the on/off switch. When you release the on/off switch, the light will turn off after When used as intended, the power tool should not be 10 seconds. -
Page 12: Troubleshooting
Troubleshooting Problem Cause Solution The drill looses • Low battery. • Charge the battery. efficiency. The trigger cannot be • The direction rotation button is in the blocking • Move the direction button into the rotate or reverse pushed. position. position. -
Page 13: Maintenance
Cleaning and care Service • Keep the vents clean and free from obstructions to Tool servicing should only be carried out at a TRUPER ensure proper motor cooling. Authorized Service Center. Service and maintenance • Regularly inspect all mounting screws and ensure they performed by unqualified persons can be dangerous and are tightened correctly. -
Page 14: Notes
Notes ENGLISH... -
Page 15: Authorized Service Centers
Authorized service centers In the event of any problem contacting a TRUPER Authorized Service Center, please see our webpage WWW.TRUPER.COM to get an updated list, or call our toll-free numbers 800 690-6990 or 800 018-7873 to get information about the nearest Service Center. -
Page 16: Warranty Policy
It includes the costs of transportation of the product that derive from its fulfillment of its service network. . Phone number 800-018-7873. Made in China. Imported by TRUPER, S.A. de C.V. Parque Industrial 1, Parque Industrial Jilotepec, Jilotepec, Edo. de Méx. C.P. 54257, Phone number 761 782 9100.
