Manual

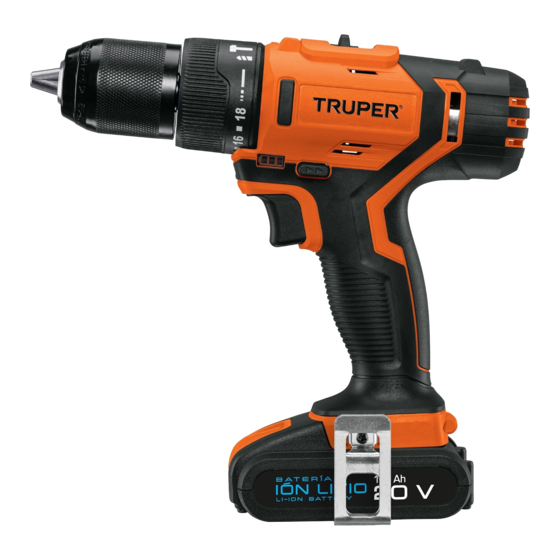

Cordless hammer drill /
drill / driver
Applies for:
Code
18155
ROTI-20A
CAUTION
Model
ROTI-20A
Read this manual thoroughly
before using the tool.
20 V
1/2"
Chuck

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROTI-20A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Truper ROTI-20A

  • Page 1 Manual Cordless hammer drill / drill / driver 20 V 1/2” Chuck Applies for: Code Model 18155 ROTI-20A ROTI-20A Read this manual thoroughly CAUTION before using the tool.
  • Page 2: Table Of Contents

    Parts Start Up Keep this manual for future references. Trouble shooting The illustrations in this manual are for reference only. They might be different from the real tool. Maintenance Environmental Protection Notes Authorized Service Centers Warranty Policy ROTI-20A ENGLISH...
  • Page 3: Technical Data

    Technical Data ROTI-20A Code 18155 Description Cordless hammer drill / drill / driver Chuck 1/2” keyless Voltage 20 V Speed Position 1: 0 - 350 RPM 0 - 5 600 strokes per minute Position 2: 0 - 1 400 RPM...
  • Page 4: General Power Tools Safety Warnings

    General power tool safety warnings WARNING! Read carefully all safety warnings and instruction listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references.
  • Page 5: Safety Warnings For Hammer Drills / Drills / Drivers

    Battery and Charger Before operating the tool DANGER • Use only the Truper charger included to • Take your time to assess the job to be done and double charge the battery. Using a different charger may cause fire check you are paying attention to the necessary caution or injury hazard.
  • Page 6: Parts

    Parts Torque Keyless The wireless hammer drill is Speed chuck regulator selector useful to both boring orifices with the impact mode as well as screwing and unscrewing. Battery level indicator Double light Rotation direction button and switch lock Handle Battery charger Switch Battery...
  • Page 7 Start Up Battery use The battery is shipped with NO CHARGE. It is necessary to charge the battery 6 hours before being able to use it for the first time. Subsequent load times are performed in about 60 minutes. A normal charging temperature is from 32 °F to 113 °F Out of this level the charge gets interrupted until reaching the right temperature.
  • Page 8 Start Up Torque adjust to drill screw • To select the desired torque level to screw drive, turn the torque regulator until it matches the corresponding number with the upper mark: From 1 to 3 for small screws, From 4 to 7 for screws on soft materials, From 8 to 11 for screws on soft and hard material, From 12 to 15 for screws on hard wood, On 16 to 18, for larger screws.
  • Page 9: Troubleshooting

    Troubleshooting Problem Cause Solution The hammer drill • Low battery. • Charge the battery. looses efficiency. The trigger cannot be • The direction rotation button is in the blocking • Move the direction button into the rotate or reverse pushed. position.
  • Page 10: Notes

    Notes ENGLISH...
  • Page 11: Authorized Service Centers

    In the event of any problem contacting a Authorized Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 800 690-6990 or 800 018-7873 to get information about the nearest Service Center. AGUASCALIENTES DE TODO PARA LA CONSTRUCCIÓN...
  • Page 12: Warranty Policy

    . Transportation costs resulting from compliance of this warranty will be covered by For questions or comments, call 800-690-6990. Made in China. Imported by Truper S.A. de C.V. Parque Industrial 1, Parque Industrial Jilotepec, Jilotepec, Edo. de Méx. C.P. 54257 Stamp of the business.

This manual is also suitable for:

18155
