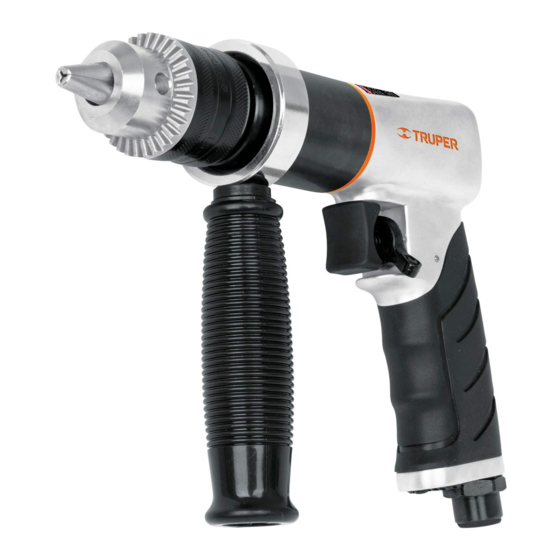

Reversible air drill

Advertisement

Quick Links

Manual
Reversible
Air Drill
Applies for:
Code
Model
19369
TPN-785HX
TPN-785HX
WARNING
CAUTION
Use oil continuously and
dosed to lubricate the tool.
Read this manual thoroughly
before using the tool.
1/2"
Chuck

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TPN-785HX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Truper TPN-785HX

  • Page 1 Manual Reversible 1/2” Air Drill Chuck Applies for: Code Model 19369 TPN-785HX TPN-785HX Use oil continuously and WARNING dosed to lubricate the tool. Read this manual thoroughly CAUTION before using the tool.
  • Page 2: Table Of Contents

    Parts Keep this manual for future references. Assembly The illustrations in this manual are for reference Star Up only. They might be different from the real tool. Maintenance Authorized Service Centers Warranty Policy TPN-785HX ENGLISH...
  • Page 3: Technical Data

    Technical Data TPN-785HX Code 19369 Description Reversible air drill Chuck 1/2” Air Output Bottom Noise Level 83 dB Vibration < 2.5 m/s Free Speed 800 RPM Weight Without Accessories 3 lb Total Length 8-1/4” Air Pressure 90 PSI Air Consumption...
  • Page 4: General Safety Warnings For Pneumatic Tools

    General Safety Warnings for Pneumatic Tools Keep your work area clean, tidy and well lit. Wear adequate protective safety accessories. CAUTION CAUTION Cluttered and dark areas may cause accidents. Wear eye protection, dust mask, non-skid safety shoes, helmet and ear plugs. In normal conditions, the risk of Never use the tool in explosive areas or in the presence injury is reduced.
  • Page 5: Risk Control When Using Pneumatic Tools

    Risk Control When Using Pneumatic Tools Risk of injury in head and eyes To prevent head and eyes injuries WARNING • Compressed air out of pneumatic • Always, when operating pneumatic equipment wear equipment may be dangerous. Objects like brackets, burrs, protection glasses in compliance with the ANSI Z87.1 splinters, dust and other residues may be impelled towards Standard.
  • Page 6 Risk Control When Using Pneumatic Tools Risk of injuries To prevent injuries WARNING • Damaged hoses may burst and cause • Do not abuse the hose or the connectors. serious injuries or deafness. • Keep the hose away from sharp or abrasive edges. •...
  • Page 7: Parts

    Parts Auxiliary Handle Mount Chuck Handle Trigger Rotary Auxiliary Selector Handle Chuck Excess Oil Input Exhaust Assembly Auxiliary Handle Set Up 1. Screw the auxiliary handle to the mount by turning it just a little. Auxiliary 2. Insert the drill head through the Handle auxiliary handle mount.
  • Page 8: Star Up

    Star Up Air intake connection • Remove the plastic cap that covers the air inlet at the base of the handle. Plastic • Connect the air hose to the tool using an adapter (not Intake included) by screwing the adapter into the tool's air inlet. •...
  • Page 9: Authorized Service Centers

    Authorized Service Centers In the event of any problem contacting a Truper Authorized Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 800 690-6990 or 800 0187-8737 to get information about the nearest Service Center.
  • Page 10: Warranty Policy

    . Transportation costs resulting from compliance of this warranty will be covered by For questions or comments, call 800-690-6990. Made in China. Imported by Truper S.A. de C.V. Parque Industrial 1, Jilotepec, Edo. de Méx. C.P. 54240 Stamp of the business.
