Hardware Requirements; Figure 3. X-Nucleo-Iod02A1 Expansion Board; Figure 4. X-Nucleo-Iod02A1 And Stm32 Nucleo Stack - ST X-NUCLEO-IOD02A1 Getting Started

Dotted line indicates the power section
1.2

Hardware requirements

The X-NUCLEO-IOD02A1
G071RB or NUCLEO-L452RE
To function correctly, the
pins on the STM32 Nucleo
UM2741 - Rev 3

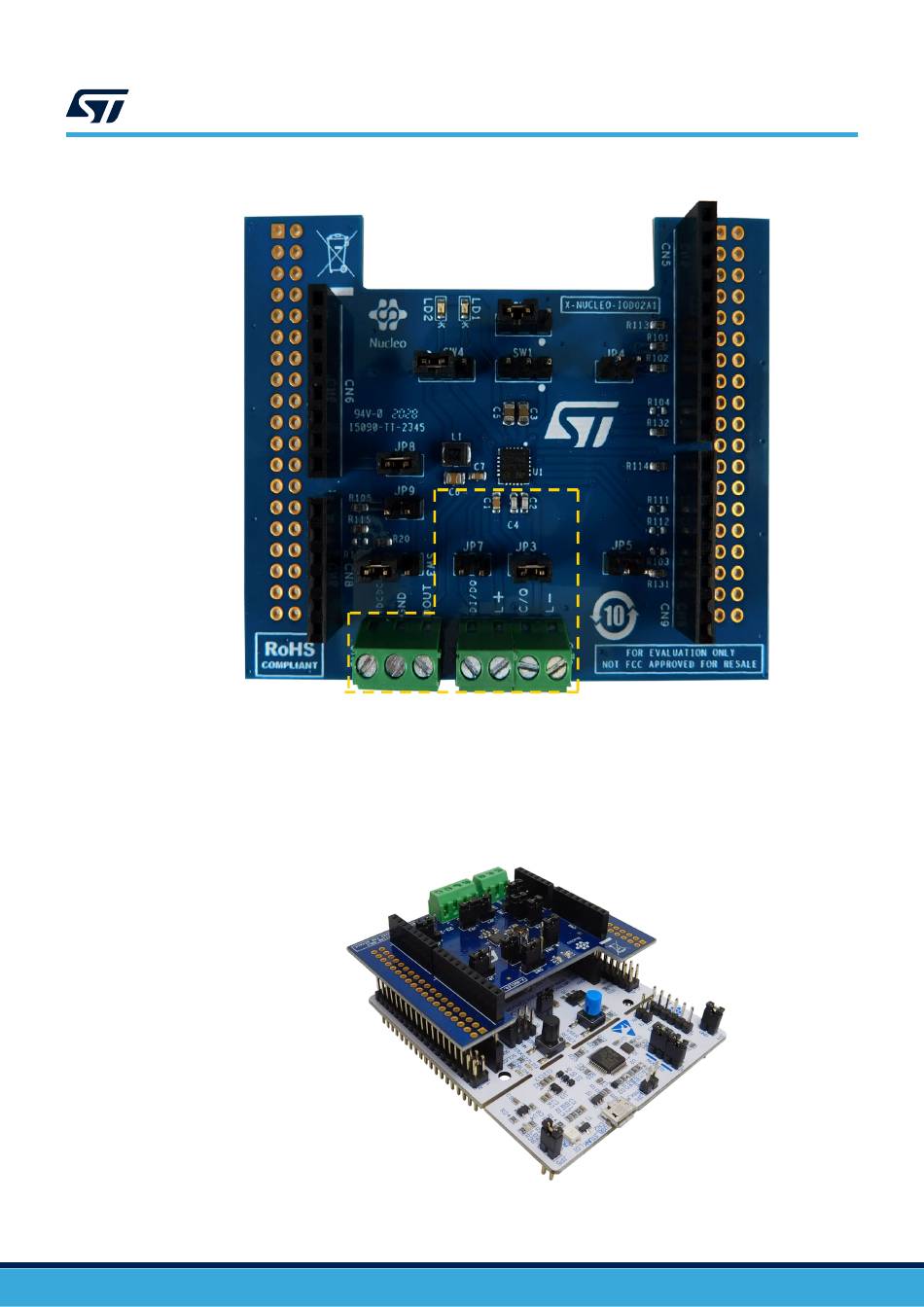

Figure 3. X-NUCLEO-IOD02A1 expansion board
expansion board is designed to be used with the
or NUCLEO-F303RE STM32 Nucleo
X-NUCLEO-IOD02A1 must be plugged onto the matching Arduino UNO R3 connector
board as shown below.
Figure 4. X-NUCLEO-IOD02A1 and STM32 Nucleo stack
NUCLEO-L073RZ or
development boards.
UM2741
Getting started
NUCLEO-
page 4/14
