- Page 1 ARCEUS ELECTRIC COMBI BOILER ARCEUS EK 12-15-18-24-27 kW MT 6-9-12-15-18-24-27 kW CH/ST USER AND INSTALLATION MANUAL...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ......................3 WARRANTY AND SERVICE ..................3 SYMBOLS ........................3 SAFETY RULES AND WARNINGS… ................4 Safety Rules ......................4 Installation ......................4 Assembly ......................4 Commissioning ....................4 Operation and Maintenance ................. 4 PRODUCT ........................5 General Specifications ..................5 Product Notation .................... -
Page 3: Introduction

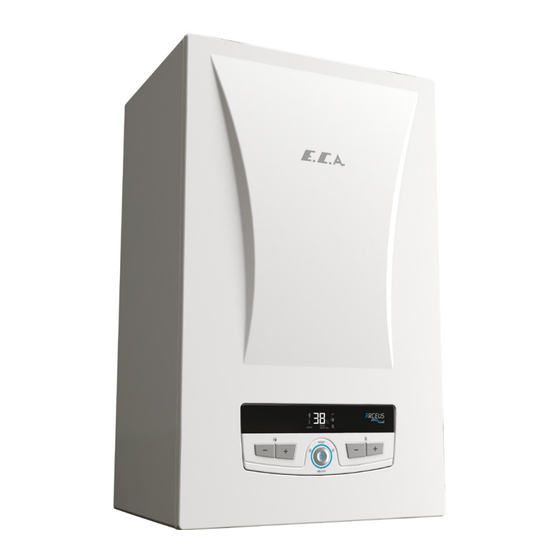

1- INTRODUCTION First of all, thank you for choosing E.C.A. E.C.A. ARCEUS electric combi boilers are intended for meeting central heating and hot domestic water requirement in an efficient, safe, and comfortable manner. ARCEUS electric combi boilers can operate on 220-240 VAC (6/9/12/15 kW) and 380-415 VAC (6/9/12/15/18/24/27 kW) power. MT model: It is intended for both central heating and hot domestic water requirement. -
Page 4: Safety Rules And Warnings
SAFETY RULES AND WARNINGS 4.1- Safety Rules The power line to which the device is connected must have cross-sectional dimensions as specified in the manual and grounded. For three-phase operating devices, a three-phase power supply must be available at the installation location. Leakage current protection relay must be connected before the device input. -
Page 5: Product
CAUTION: If the device is used incorrectly and inappropriately, it may pose a life- threatening risk and may cause material damage to the product and its surroundings. CAUTION: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 6: Wiring Diagrams
5.3- Wiring Diagrams Circuit Breaker Contactor Electric Heaters Relay Board CH Flow NTC CH Return NTC Boiler Tank NTC 3 Way Valve DHW Solar STB Water Pressure Sensor DHW Outlet Sensor Circulation Pump Figure 1. Arceus 6-9 kW Wiring Diagram... - Page 7 Circuit Breaker Contactor Electric Heaters Relay Boards CH Flow NTC CH Return NTC Boiler Tank NTC 3 Way Valve DHW Solar STB Water Pressure Sensor DHW Outlet Sensor Circulation Pump Figure 2. Arceus 12-15 kW Wiring Diagram...
- Page 8 Circuit Breaker Contactor Electric Heaters Relay Boards CH Flow NTC CH Return NTC Boiler Tank NTC 3 Way Valve DHW Solar STB Water Pressure Sensor DHW Outlet Sensor Circulation Pump Figure 3. Arceus 18-24 kW Wiring Diagram...
- Page 9 Circuit Breaker Contactor Contactor Electric Heaters Electric Heaters Relay Boards CH Flow NTC CH Return NTC Boiler Tank NTC 3 Way Valve DHW Solar STB Water Pressure Sensor DHW Outlet Sensor Circulation Pump Figure 4. Arceus 27 kW Wiring Diagram...
-
Page 10: Detailed View, Component List And Installation
5.4- Detailed View, Component List and Installation Figure 5. Component View of Device Air Purge Expansion Vessel Circuit Breaker Drain Valve Ground Terminal Block Plate Heat Exchanger Neutral Terminal Block Circulation Pump Neutral Busbar Relay Boards Cantactor Pressure Sensor 3 Way Valve Immersion type NTC 3 Bar Safety Valve Flow sensor... - Page 11 5.4.1- MT Model Installation DHW Outlet DHW Inlet CH Return CH Flow Figurel 6. Monothermic Device Installation Scheme 5.4.2- CH Model Installation CH Return CH Flow Figure 7. CH Device Installation Scheme 5.4.3- ST Model Installation CH Return Boiler Exit CH Exit Boiler Return...
-
Page 12: Package
6- PACKAGE CAUTION: Warnings on the carton package must be observed during transportation and storage of the device. - The device is delivered in a carton box with dimensions of 735 x 345 x 490 (HxWxD) as supported by lower and upper styrofoams. - The parts required for the installation of the device (wall bracket, 5 gaskets, 3 dowels, and fixing screws for water connections) are placed in the upper styrofoam. -
Page 13: Wall Mounting Of The Device
- The device can not be used at altitudes higher than 2000 m above sea level.There is no need to remove side panels for the inside combi boiler service operations. Min. 50 mm spaces are given by considering a possible side panel sheet replacement. - Do not assemble your combi boiler in places where it will be exposed to direct sunlight. -
Page 14: Connections
8- CONNECTIONS 8.1- Water Pipe Connections - The water connections between the wall mounting bracket fixed on the wall and the combi boiler are made with the pipe group and nipples as shown in the figure 8.1.1- MT Model a) Central heating pipe 3/4" outlet line (hot) b) Domestic water pipe 1/2"... -
Page 15: Electrical Connection
8.1.3- HST Model a)Central heating pipe 3/4" outlet line (hot) b) Boiler outlet line 1/2" (hot) c) Boiler return line 1/2" (cold) d) Installation Filling line 1/2" e) Central heating pipe 3/4" return line (cold) Figure 13. ST boiler water connections 8.2- Electrical Connection Your combi boiler must be connected to a grounded power line that can supply 230 VAC 50 Hz... - Page 16 CAUTION: Only 6, 9 ,12 and 15 kW models are suitable for single phase operation. CAUTION: For single-phase operation of the device, you can connect the live wire of the supply cord to the middle pole of the circuit breaker and bridge to the other poles of the circuit breaker by the bridging bar supplied with the product.
- Page 17 Supply Cord Nominal Supply Line Minimum Device Power Supply Current (A) Circuit Breaker Capacity Single-phase B32-1P ARCEUS 6 CH-ST Three-phase 5x2.5 B10-3P Single-phase 3x10 B40-1P ARCEUS 9 CH-ST Three-phase 5x2.5 B15-3P Single-phase 3x10 B63-1P ARCEUS 12 MT-CH-ST Three-phase B20-3P B80-1P 3x16 Single-phase ARCEUS 15...
-
Page 18: Room Thermostat
8.3- Room Thermostat One of the optional room thermostats compatible with your device can be used to provide local heating control. Poly Plus 100 Wireless ECA Poly TOUCH 400B ECA Poly COMFORT 200B Room Thermostat Thermostat Thermostat 7006903002 7006903006 7006903007 ECA Poly TOUCH 400W ECA Poly COMFORT 200W ECA Poly PURE 100W... -
Page 19: Initial Start-Up, Operation And Shut Down
9- INITIAL START-UP, OPERATION AND SHUT DOWN 9.1- Initial Start-Up - First of all, the electrical connection of combi boiler should be made. The electrical connection of the device must be connected to a grounded supply line that can supply sufficient voltage for the device. -
Page 20: Control Panel
10- CONTROL PANEL 10.1- Button Functions Reset/Mode Selection Button Using mode can be changed pressing the mode selection button to change between the winter mode and the summer mode. If the button is pressed for 3 seconds, the device will switch to the "stand by"... - Page 21 Figure 17. Control Panel Button Configuration 10.2.1- Button Functions: Button Button Number Name Function - Increases central heating set temperature - Increases password value at parameter menu entry CH + - Increases parameter value - Indicates information value - Indicates error history value - Reduces central heating set temperature - Reduces password value at parameter menu entry CH -...
-
Page 22: Operation Modes
- Allows for selection between STANDBY MODE, SUMMER MODE, and WINTER MODE when shortly pressed. - Resets error - Allows skipping the test mode - Allows skipping the AP function - Directs to the service menu when pressed for 5 Mode seconds - Allows access to the selected sub-menu in the service... - Page 23 10.3.5- Domestic Hot Water (DHW) Eco Mode: At the times that hot water demand is not expected (e.g. holidays etc.) or more economic use is preferred, ECO mode prevents the water in the exchanger to be heated and provides a more economic use of the device. When the ECO Mode is active “EC”...
-
Page 24: Error Codes And Descriptions
10.4.4- Maintenance Reminder Function: After the time period that the device stays connected to the power upply reaches 8760 hours (1 year), the customer is informed that the annual maintenance time has come by flashing “ASE” characters and steady alarm icon on the screen. -
Page 25: Useful Product Information
This error is displayed if the solar boiler tank temperature sensor is Solar Boiler Tank short or open circuit, or damaged. Domestic water and central Temperature Sensor heating demands are stopped. When this error is cleared, normal Error operation begins. This error is displayed if the solar panel temperature sensor Solar Panel Temperature (PT1000) is short or open circuit, or damaged. -
Page 26: Disposal Of The Device
12.3- Cleaning of Combi Boiler Keep the outer casing of the combi boiler clean by wiping it with a soft damp cloth. Do not use strong, abrasive cleaning agents. During and after the warranty period of the combi boiler, performing maintenance regularly once a year before the winter season ensures safe use and prolongs the life of the device. - Page 27 SCREED DRYING FUNCTION The device has 5 different heating profiles to dry the screed placed on the installation. Profiles include 30-day periods. The function is suitable for use in underfloor heating systems. The company that produces the screed material should be consulted for the appropriate profile. To use the function, all installation connections must be made without any leaks.
-
Page 28: Erp Manual
15.1 The product data presented below complies with the requirements of EU regulations 811/2013 and 813/2013 to comply with directives 92/42/EU and 92/42/EEC ARCEUS ELECTRIC ARCEUS ELECTRIC ARCEUS ELECTRIC ARCEUS ELECTRIC ARCEUS ELECTRIC ARCEUS ELECTRIC ARCEUS ELECTRIC Product Data Symbol Unit COMBI EK 6 kW COMBI EK 9 kW... - Page 29 15.2- Package information card stating the central heating energy efficiency of the package 15.2.1- Package Information - Combi Boiler Seasonal Space Heating Energy Efficiency of the Combi Boiler (Table 7) “I” “I”: The value of the seasonal heating efficiency of the primary central heater, expressed in %. Temperature Controller Class I = 1%, Class II = 2%, Class III = 1.5%, (Room Thermostat-Outdoor Air Sensor)
- Page 30 Water Heating Energy Efficiency of Combination Heater (Table 8) “I” Declared load profile: Solar Energy Device Contribution Auxiliary Electric ( 1.1 x 'I' - 10 % ) x 'II' - 'III' - 'I' = From the solar energy device data sheet Water Heating Energy Efficiency of the Package under Average Climatic Conditions Water Heating Energy Efficiency Class of the Package under Average Climatic Conditions Water Heating Energy Efficiency of the Package under Average Climate Conditions...
-
Page 31: Removal Information
16- REMOVAL INFORMATION 16.1- Unpacking the New Product Packaging protects your device against transport damage. All materials used in packaging are environmentally friendly and can be reused. Please help: Dispose of the packaging in a way that will not harm the environment. To obtain information about current troubleshooting methods, please contact your authorized dealer or municipality. - Page 32 PRODUCTION Organize Sanayi Bolgesi 3.Kisim Mustafa Kemal Boulevard No:13 45030 MANISA Tel.:+90 236 213 00 21 Fax:+90 236 213 08 59 email: emas@emas.com.tr www.emas.com.tr...
Need help?
Do you have a question about the ARCEUS EK 12 MT and is the answer not in the manual?
Questions and answers
Initial Start-Up, Operation And Shut Down - E.C.A. ARCEUS EK 12 MT User And Installation Manual For this unit, what do you do if the unit is stuck on the AP cycle? Meaning it just keeps running the AP cycle and makes a noise every 20 seconds and runs through the 20 second cycle again and again? Or in other words, how long after a power outage should it take to complete the AP cycle? Thanks, Jim
If the E.C.A. ARCEUS EK 12 MT unit is stuck on the AP (anti-blocking) cycle and continues to run the cycle repeatedly, check if there is a heat demand. The anti-blocking function is interrupted if heat demand occurs, and the valve returns to normal working position. If the device remains stuck without heat demand, it may require inspection or service.
The AP cycle (anti-blocking function) activates every 24 hours and runs for 10 seconds. After a power outage, the cycle should not take more than 10 seconds to complete.
