PV-ezRack Timber Hanger Bolt
Amendments
Issue No
1.0
1.1
Contents
1 Introduction...................................................
2 Tools &Components ......................................
3 System Overview............................................. 5
4 Installation Instructions..................................
Issue: 1.1
Installation Guide V1.1
Amendment Details
First Publication
Following MCS 012 standard
1001, 1003, 1005, 1007, 1009 Min'an Rd,
Huoju Hi-tech Ind. Dev. Zone, Xiang'an
District 361101, Xiamen, Fujian, China.
26/03/2024
28/03/2024
2
4
6
1 / 11
T: +86 (0592) 3110088
E: sales@clenergy.com.cn
W: www.clenergy.com.cn
Date
Date: 28/03/2024
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Clenergy PV-ezRack Timber Hanger Bolt
Summary of Contents for Clenergy PV-ezRack Timber Hanger Bolt

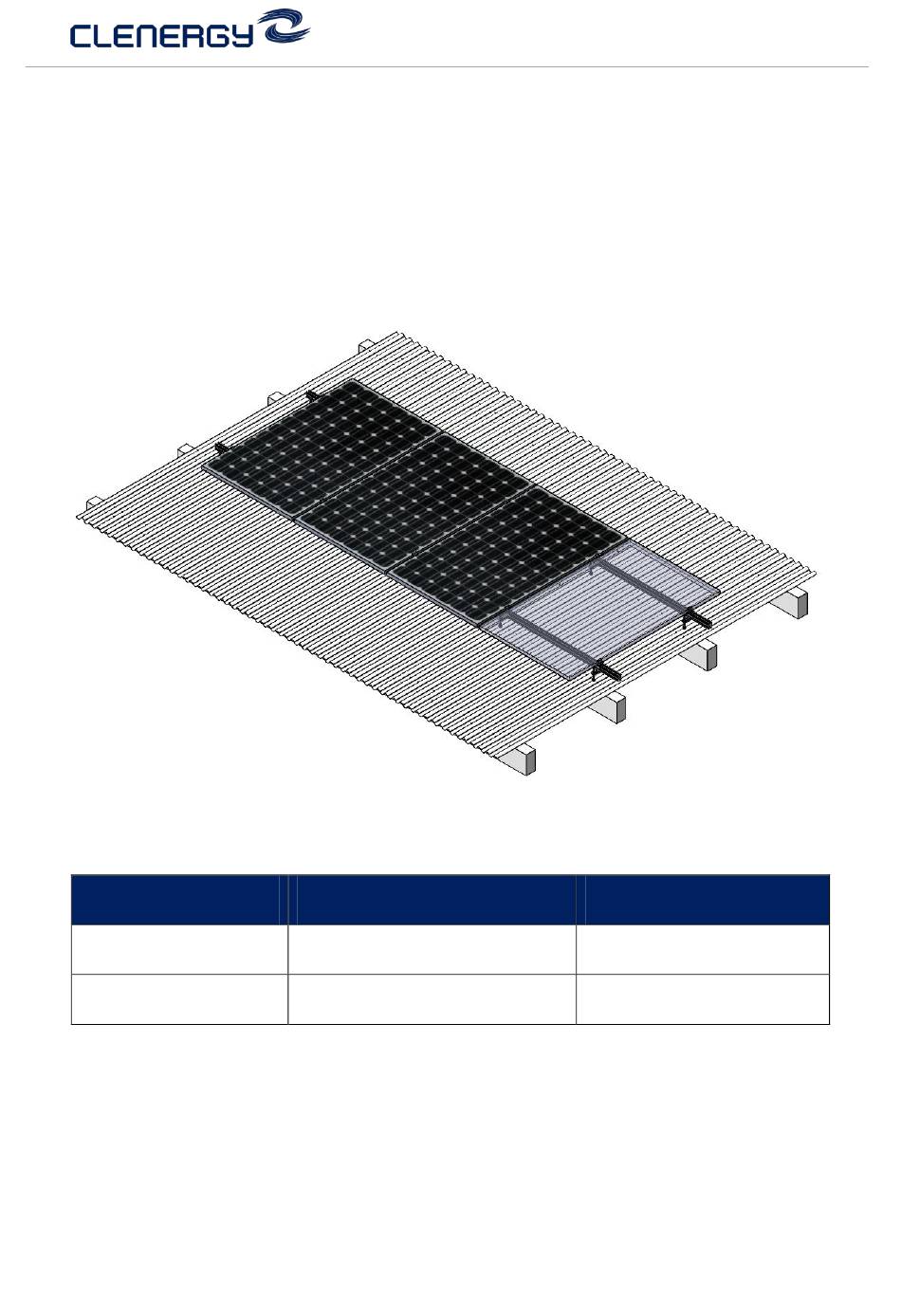

- Page 1 1001, 1003, 1005, 1007, 1009 Min’an Rd, T: +86 (0592) 3110088 Huoju Hi-tech Ind. Dev. Zone, Xiang’an E: sales@clenergy.com.cn District 361101, Xiamen, Fujian, China. W: www.clenergy.com.cn PV-ezRack Timber Hanger Bolt Installation Guide V1.1 Amendments Issue No Amendment Details Date First Publication...

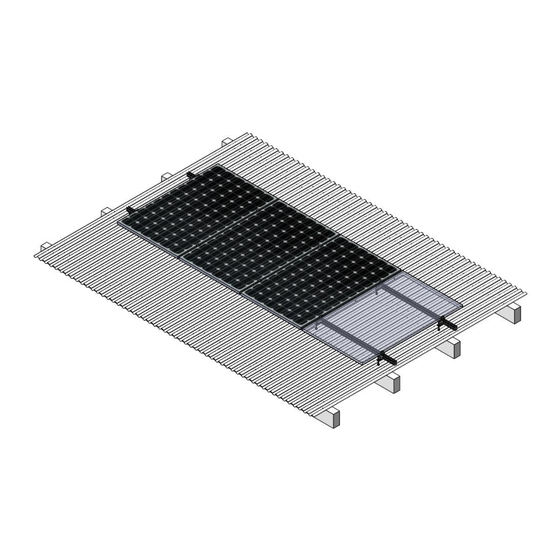

- Page 2 W: www.clenergy.com.cn 1. Introduction Clenergy SolarRoof Pro Hanger Bolt is a standard solution used for PV Module mounting on corrugated roofs. Its unique design made out of aluminium components allow to provide a high efficient installation making it very resistant and long lasting. This system is also compatible with most PV-Modules in the market.
- Page 3 • The upper and lower limit of the torque of the locking screws must be checked regularly at least once a year. • Changes and deviations from the planning documents must be approved by Clenergy. Issue: 1.1 3 / 11...
- Page 4 1001, 1003, 1005, 1007, 1009 Min’an Rd, T: +86 (0592) 3110088 Huoju Hi-tech Ind. Dev. Zone, Xiang’an E: sales@clenergy.com.cn District 361101, Xiamen, Fujian, China. W: www.clenergy.com.cn 2. Tools & Components 2.1 Tools Tools Screw Driver Angle Grinder with ( for M8 and M12...
-
Page 5: System Overview
Please refer to safe torques defined in this guide as shown in Installation Instructions. In case power tools are required, Clenergy recommends the use of low speed only. High speed and impact drivers increase the risk of bolt galling (deadlock). If deadlock occurs and you need to cut fasteners, make sure that there is no load on the fastener before you cut it. -
Page 6: Installation Instructions
1001, 1003, 1005, 1007, 1009 Min’an Rd, T: +86 (0592) 3110088 Huoju Hi-tech Ind. Dev. Zone, Xiang’an E: sales@clenergy.com.cn District 361101, Xiamen, Fujian, China. W: www.clenergy.com.cn 4. Installation Instructions 4.1 Hanger Bolt Installation 4.1.1 Determine the positions of the Hanger Bolt according to your plans. -
Page 7: Rail Installation
1001, 1003, 1005, 1007, 1009 Min’an Rd, T: +86 (0592) 3110088 Huoju Hi-tech Ind. Dev. Zone, Xiang’an E: sales@clenergy.com.cn District 361101, Xiamen, Fujian, China. W: www.clenergy.com.cn 4.1.3 Fix the Mounting Kit onto the hanger bolt. Figure 3 4.2 Rail Installation 4.2.1 To connect... - Page 8 1001, 1003, 1005, 1007, 1009 Min’an Rd, T: +86 (0592) 3110088 Huoju Hi-tech Ind. Dev. Zone, Xiang’an E: sales@clenergy.com.cn District 361101, Xiamen, Fujian, China. W: www.clenergy.com.cn 4.3 PV Module Installation There are two types of clamps for PV Modules Installation.
- Page 9 1001, 1003, 1005, 1007, 1009 Min’an Rd, T: +86 (0592) 3110088 Huoju Hi-tech Ind. Dev. Zone, Xiang’an E: sales@clenergy.com.cn District 361101, Xiamen, Fujian, China. W: www.clenergy.com.cn of clamp against the lower rib of the Rail and press module of the...
- Page 10 1001, 1003, 1005, 1007, 1009 Min’an Rd, T: +86 (0592) 3110088 Huoju Hi-tech Ind. Dev. Zone, Xiang’an E: sales@clenergy.com.cn District 361101, Xiamen, Fujian, China. W: www.clenergy.com.cn Figure 14 Step 4: When using as an Inter Clamp, click the Akashi...
- Page 11 1001, 1003, 1005, 1007, 1009 Min’an Rd, T: +86 (0592) 3110088 Huoju Hi-tech Ind. Dev. Zone, Xiang’an E: sales@clenergy.com.cn District 361101, Xiamen, Fujian, China. W: www.clenergy.com.cn Repeat above steps to install the rest PV-Modules. Figure 17 Issue: 1.1 11 / 11...
