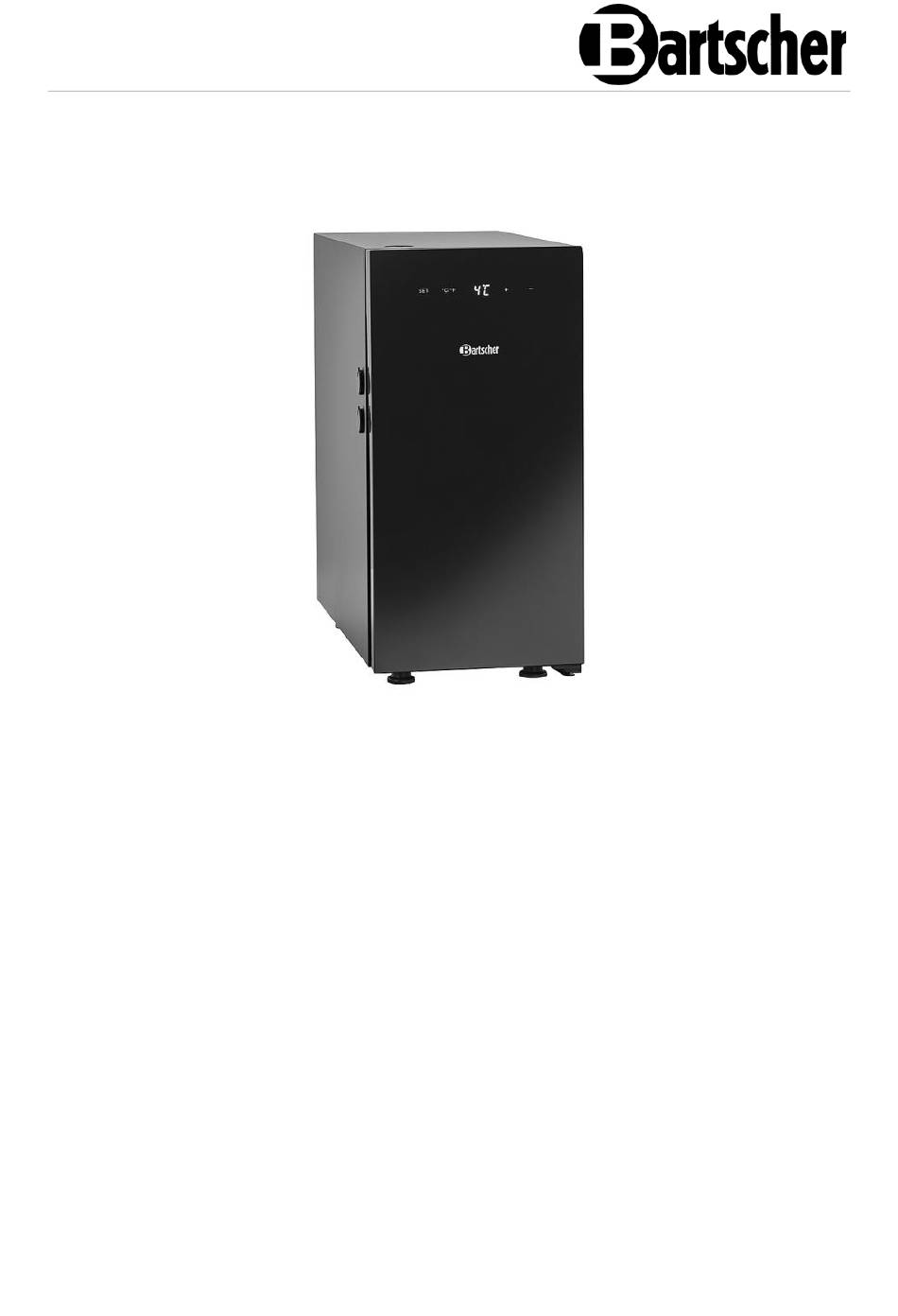

- Page 1 KV9L 190089...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 D-33154 Salzkotten Technical Support Hotline: +49 5258 971-197 Germany www.bartscher.com Version: 1.0 Date of preparation: 2024-04-12...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Inform ationsquelle und N achschl agew erk. Di e Kenntnis aller enthaltenen Sic herheits hinw eis e und H andlungs anw eisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfallv erhütungsv orsc hriften und allgem einen Sicherheits bestimmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und m uss i n unmittelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, W artungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt w erden. W enn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety Halten Sie Verpack ungsmateriali en und Styropor teile v on Ki ndern fern. They m ay g et em broiled and suffocate. Operating Personnel • The device can be used by children of 8 years old and older, as well as by people with reduced physical, sensory or mental abilities and those with limited experience/knowledge as long as they are under supervision or have been instructed on safe use of the device and possible risks.
-
Page 8: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Chilling of milk for preparing coffee in a coffee machine. The appliance is intended for operation in maximum ambient temperature of 32 °C and relative humidity of 55%. -
Page 9: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data
Technical Data Technical Data Technical Specifications Milk refrigerator KV9L Name: 190089 Art. No.: Material: sheet steel, powder-coated Inner material: ABS plastic Internal dimensions (W x D x H), in mm: 160 x 190 x 280 Volume, in l: Temperature range, min.-max., in °C: 0 - 8 Ambient temperature, max., in °C:... -
Page 12: Functions Of The Appliance
Technical Data • Digital display • Lockable • Door type: leaf door • Right-hand side door, with no possibility for door hinge to be changed • Features: – Designed for, e.g., 3 Tetra Pak® cartons, 1 litre each – Direct milk supply through openings on side of the appliance –... -
Page 13: List Of Components Of The Appliance
Technical Data List of Components of the Appliance Fig. 1 1. LED lighting 2. Fan 3. Ventilation openings 4. Lock 5. Control panel 6. Right milk hose feedthrough (2x) 7. Appliance door 8. IEC connector for the power cord 9. Door handle recess 10. -
Page 14: Installation And Operation
Installation and operation Installation and operation Installation CAUTION! Incorrect installation, positioning, operation, maintenance or misuse of the appliance may lead to personal injury or property damage. Positioning and installation, as well as repairs may be performed by authorised technical service only and in compliance with the applicable national law. - Page 15 Installation and operation – sufficiently large, and thus enabling usage of the appliance with no problems; – easily accessible; – well ventilated. • Maintain sufficient clearance from table edges. The appliance might turn over and fall down. • Do not place the appliance in direct sunlight or in the vicinity of heat sources (cooker, radiator, heating devices, etc.).
-
Page 16: Operation
Installation and operation Power supply connection • Verify if technical data of the appliance (see rating plate) correspond with the local electric power grid specification. • Connect the appliance to a single, properly grounded mains socket with protective contact. Do not connect the appliance to a multi-socket. •... - Page 17 Do not obstruct ventilation openings or fan to ensure air circulation and, consequently, a good chilling effect. The cooling compartment houses 3 standard size milk cartons. You may also pour milk to a milk container. To this end, we recommend Bartscher milk container: KV9L, art. No. 190094...
- Page 18 Installation and operation 2. Unscrew the cover(s) of the required milk hose feedthroughs on the left or right, and put them away. 3. Insert one milk hose (Ø 9.8 mm or 12.3 mm) through the feedthrough. 4. Put one end of the milk hose inside an open milk carton (Fig. 4) or alternatively, in a milk container (Fig.
-
Page 19: Cleaning And Maintenance
Cleaning and Maintenance LED lighting The appliance is equipped with LED lighting. The LED lamp is located at the ceiling of the inner chamber. The LED lighting turns on automatically with the contactor switch on the appliance door, after the door is closed. -
Page 20: Cleaning
Cleaning and Maintenance Cleaning 1. At the end of a working day clean the appliance thoroughly. 2. Remove all objects from the appliance. 3. Clean the internal compartment with warm water and soft cloth or sponge. Use mild cleaning agent if required. 4. -
Page 21: Possible Malfunctions
Possible Malfunctions Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. When malfunction cannot be removed, contact the technical service. In such a case, provide article number, model name and serial number. These data may be found in the rating plate. -
Page 22: Disposal
Disposal Disposal Electrical Appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner. You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance.
