Summary of Contents for Bartscher KV6L

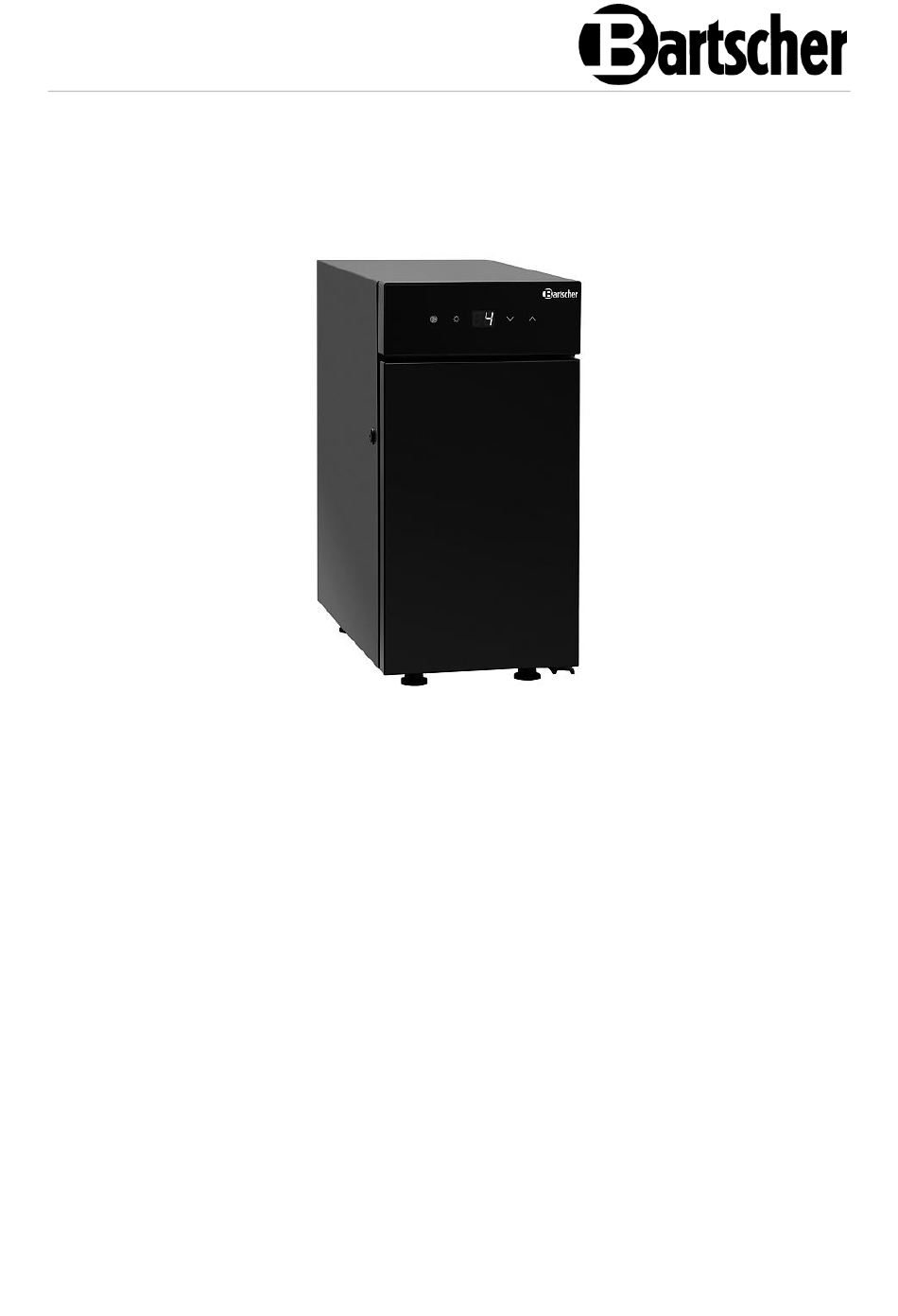

- Page 1 KV6L 190076...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2019-10-18...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of signal words ..............2 Safety instructions..................3 Intended use .................... 6 Unintended use ..................6 General information ..................7 Liability and warranty ................7 Copyright protection ................. 7 Declaration of conformity ................. 7 Transport, packaging and storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. Inc orrect operati on of the applianc e may c ause fire or explosi on haz ard due to igniti on of its content. Fire hazard / flammable materials hazard / explosion hazard! •...
- Page 7 Safety • The appliance may only be used when all connections are executed according to rules of law in force. • The appliance may only be used when it is clean. • Use only original spare parts. Never attempt to repair the appliance on your own.
-
Page 8: Intended Use
Safety Intended use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Chilling of milk for preparing coffee in a coffee machine. Unintended use An unintended use may lead to personal injuries or property damages caused by hazardous voltage, fire or high temperature. -
Page 9: General Information
General information General information Liability and warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, packaging and storage Transport, packaging and storage Delivery check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data
Technical data Technical data Technical specifications Milk refrigerator KV6L Name: 190076 Art. No.: Material: Sheet steel, powder-coated Inner material: Plastic ABS Inner dimensions, in mm: 160 x 125 x 280 Volume, in litres: Temperature range, min.–max., in °C: 0 - 4... -
Page 12: List Of Components Of The Appliance
Technical data • Direct milk suction via side openings of the appliance List of components of the appliance 1. Control panel 2. Door 3. Feet (4x) 4. Housing 5. Ventilation slots 6. LED lighting 7. Openings for milk hose (2 pcs) 10 / 18 190076... -
Page 13: Functions Of The Appliance
Installation and operation Functions of the appliance The appliance is suitable for chilling milk. Installation and operation Installation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing package materials, for instance: plastic bags and EPS. -
Page 14: Operation
Installation and operation • Do not place the appliance in direct sunlight or in the vicinity of heat sources (cooker, radiator, heating devices, etc.). Heat sources may negatively affect power consumption, and restrict functions of the appliance, too. • In order to avoid damage to the compressor, do not tilt the appliance more than 45°... - Page 15 Installation and operation Digital temperature regulator 8. SET button 9. LED lighting button 10. Digital temperature display 11. Temperature decrease button 12. Temperature increase button Operation 1. Press and hold the SET button (8) for approximately 1 second. The device switches to the settings mode. 2.
-
Page 16: Cleaning
Cleaning 8. Disconnect the appliance from mains power supply if it is not used any more. Switching lighting ON/OFF The appliance is equipped with LED lighting. It is located in internal compartment ceiling. In any case, if switching the LED lighting ON is required, press the LED lighting button (9). -
Page 17: Cleaning
Possible Malfunctions Cleaning 1. At the end of a working day clean the appliance thoroughly. 2. Remove all objects from the appliance. 3. Clean the internal compartment with warm water and soft cloth or sponge. Use mild cleaning agent if required. 4. -
Page 18: Disposal
Disposal Error Possible Cause Solution The appliance The appliance is not Check if the appliance is operates loudly. levelled. levelled. Constant vibrations. Check if the appliance does not come in contact with any object, both inside and outside. The following phenomena are not malfunctions: 1.
